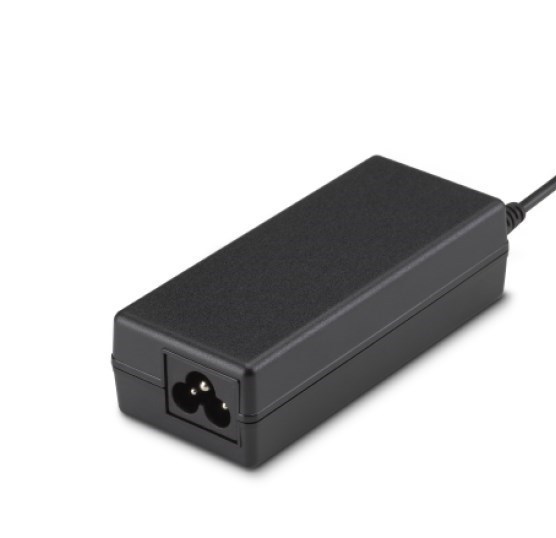

FSP065-RBBN3 65W AC-DC Power Adapter for IPC, POS, and Embedded Systems

The FSP065-RBBN3 is a 65-watt AC-DC power adapter designed for a wide range of ITE applications including IPC systems, embedded systems, printers, monitors, POS systems, and PoE applications. This universal input adapter accepts 90-264 VAC (47-63 Hz) and delivers a regulated 19V/3.42A output (65W total). It features active Power Factor Correction (PFC) with PF ≥0.9, meets DOE Level VI (88% efficiency) and CoC Version 5 Tier 2 (89% efficiency) energy standards, and complies with IEC 62368-1 & CB 60950-1 safety certifications. The unit includes comprehensive protection: over voltage, short circuit, over current, over temperature, and brown-out. With low no-load power consumption ≤0.15W, high reliability (MTBF 300,000 hours at 25°C), and a low-profile mechanical design, the FSP065-RBBN3 is ideal for space-constrained industrial and commercial equipment. It also meets Class B EMC limits (EN55032, FCC Part 15B) and withstands harsh environments up to 5000m altitude and 4000VAC isolation.

Key Features

• Universal AC Input: 90-264 VAC, 47-63 Hz with input current ≤1.5A at full load.
• Stable 19V DC Output: 3.42A continuous current, 65W total power with tight regulation.
• High Efficiency & Energy Saving: 88% (DOE Level VI) and 89% (CoC v5 Tier 2) efficiency; no-load power <0.15W.
• Active PFC & Power Quality: Power factor ≥0.9 at full load, reducing harmonic distortion.
• Comprehensive Protection: Over voltage, over current, short circuit, over temperature, and brown-out protection for safe operation.
• Robust Reliability: 300,000 hours MTBF (SR332), 4000VAC isolation, and operation up to 5000m altitude.
• EMC Compliance: Meets EN55032 / FCC Part 15 Class B conducted & radiated emissions, plus immunity standards (EN61000-4-2/3/4/5/6/8/11).
• Wide Operating Temperature: Full load from 0°C to 40°C, with derated performance up to 70°C (55% load at 70°C).
• Compact & Lightweight: Low-profile design suitable for tight installations.
