Product Description

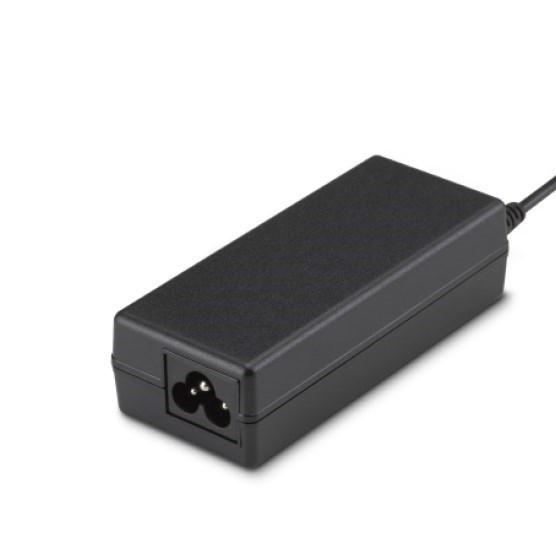

65 W Desktop AC-DC Adapter - FSP065-RBBN3
The FSP065-RBBN3 is a 65 W desktop AC-DC adapter engineered for notebooks, IPCs, and peripherals. It supports universal AC input (90–264 VAC) and provides regulated DC output with low ripple. With protections against over-voltage, over-current, over-temperature, and short-circuit, it ensures safe, dependable performance. Burn-in and Hi-Pot testing validate long service life.
Compact and energy-efficient (DOE/ErP compliant), the FSP065-RBBN3 is suited for international deployments and replacements.
Key Features
- Power Rating: 65 W regulated DC.
- Universal Input: 90–264 VAC, 47–63 Hz.
- Efficiency: DOE/ErP compliant.
- Safety: OVP, OCP, OTP, SCP.
- Reliability: Burn-in & Hi-Pot tested.
- Applications: Notebooks, IPC, peripherals.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*11mm 90° |
| Dimensions (L*W*H)(mm) | 108*46*30mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 3.42A |
| Output Power | 65W |
| Output Voltage | 19Vdc |
| Socket | C6 |
| Weight | 0.21kg |
Technical data sheets
Legislation and Compliance
