Product Description

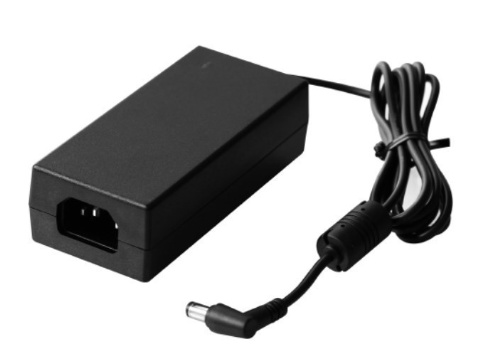

60 W Desktop AC-DC Adapter - FSP060-DHAN3
The FSP060-DHAN3 is a reliable 60 W desktop AC-DC adapter for embedded, IPC, POS, and display applications. It features universal input (90–264 VAC) and a regulated DC output with low ripple and solid line/load regulation. Designed for professional use, it incorporates comprehensive protections and passes burn-in and Hi-Pot tests for durability.
Energy efficiency compliance helps reduce operating costs, while standard connectors make integration straightforward for global deployments.
Key Features
- Universal Input: 90–264 VAC, 47–63 Hz.
- Output Power: 60 W regulated DC.
- Efficiency: DOE/ErP compliant.
- Protections: OVP, OCP, OTP, SCP.
- EMC: ITE Class B emissions/immunity.
- Integration: Standard AC inlet and DC plug.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1800mm |
| Connector | DIN Power 4Pol |
| Dimensions (L*W*H)(mm) | 151*75*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 5A |
| Output Power | 60W |
| Output Voltage | 12Vdc |
| Socket | C14 |
| Weight | 0.41kg |
Technical data sheets
Legislation and Compliance
