FSP060-DAAN3 60W 24V AC-DC Adapter – High-Efficiency Power Supply for Industrial Applications

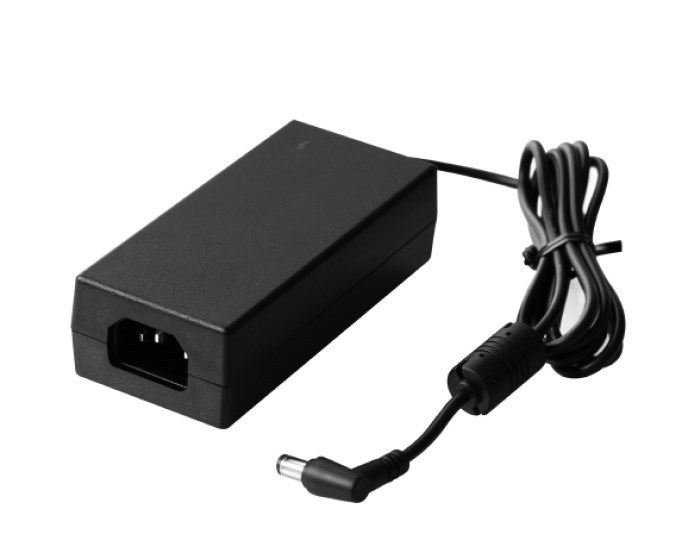

The FSP060-DAAN3 is a compact and reliable AC-DC power adapter from FSP Technology, delivering 24V at 2.5A (60W) with universal input voltage range of 90-264Vac. Designed to meet stringent global energy efficiency regulations, it complies with DoE Level VI and CoC V5 Tier 2 standards, ensuring ultra-low no-load power consumption (≤0.15W @230Vac) and high average active mode efficiency up to 89%. This adapter features comprehensive protection mechanisms including overvoltage (25-38V trip), overcurrent (≤5A limit), short circuit with auto-recovery, and brown-out protection, making it an ideal choice for IPC systems, POS systems, embedded systems, printers, monitors, and other space-constrained industrial applications. Its compact form factor (110×62×31.5mm), lightweight design (150g), and IEC 320-C14 input socket facilitate easy integration. Additionally, the unit meets EMI Class B standards (FCC Part 15J, CISPR32/EN55032, VCCI Level II) and offers high reliability with 300,000 hours MTBF.

Key Features

• Universal AC Input & High Efficiency: Operates from 90-264Vac (47-63Hz) and delivers up to 60W continuous power. Meets DoE Level VI (≥88% avg. efficiency, ≤0.21W no-load @115Vac) and CoC V5 Tier 2 (≥89% avg. efficiency, ≤0.15W no-load @230Vac) standards.
• Stable 24V Output: Provides 24V ±5% output voltage with 2.5A continuous current capability. Low output ripple and noise ≤200mVp-p (measured with 0.1µF ceramic // 47µF aluminum cap at output cable end).
• Comprehensive Protection: Built-in overvoltage protection (25-38V trip), overcurrent protection (≤5A limit), short circuit protection with auto-recovery, and brown-out (under-voltage) protection ensure safe operation under fault conditions.
• Robust Environmental Performance: Designed to withstand EFT (±1kV), surge (±1kV differential mode, ±2kV common mode), ESD (±4kV contact, ±8kV air) per IEC61000-4 standards. Operating temperature range 0-40°C (full load) with linear derating to 50% load at 70°C; storage -20 to +80°C.
• Compact & Lightweight Mechanical Design: Measures only 110 x 62.0 x 31.5 mm and weighs 150g, featuring IEC 320-C14 inlet. Vibration tested per random profile (3.13grms, 15min/axis), RoHS compliant, and altitude rated to 5000m.
• High Reliability & Safety: MTBF >300,000 hours @25°C (Telcordia SR-332 Issue2). Hi‑Pot tested (2.5kV primary-secondary, 2.5kV primary-PE) with leakage current ≤0.25mA @264Vac. Meets EMI Class B (FCC, CISPR32/EN55032, VCCI Level II).
• Quiet Operation: Acoustic noise <30dB under all load conditions, suitable for noise-sensitive environments.
