CAR120-19-2,5
Article Number:
DA1004
Manufacturer:
TPS
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

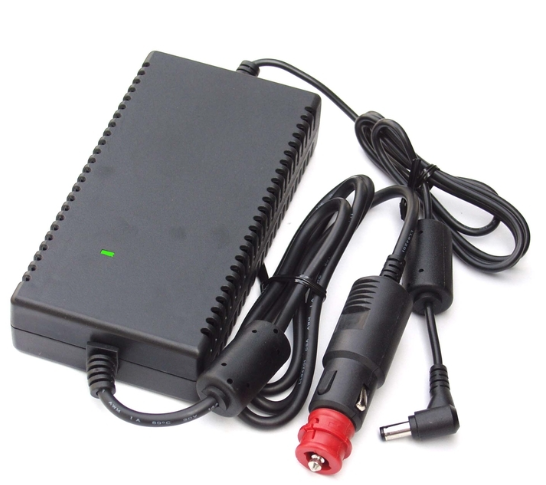

120 W Vehicle DC-DC Adapter – CAR120-19-25
The CAR120-19-25 is a compact 120 W automotive DC-DC adapter designed to power laptops and mobile devices directly from a 9–32 V DC source in cars, trucks, or boats. It provides a regulated 19 V output with up to 6.3 A, ensuring stable performance for mobile workstations. Built-in protections (OVP, OCP, SCP) and high conversion efficiency guarantee safe and reliable operation on the road.
Key Features
- Input: 9–32 V DC (automotive use).
- Output: 19 V DC, up to 120 W (6.3 A).
- Protections: OVP, OCP, SCP.
- Efficiency: High conversion efficiency for reduced heat.
- Use Cases: Laptops, mobile devices, automotive systems.
- Compliance: CE, RoHS automotive EMC.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1000mm |
| Connector | |
| Dimensions (L*W*H)(mm) | 120*75*30mm |
| Efficiency | 90% |
| Input Voltage | 9-32Vdc |
| Output Current | 6.31A |
| Output Power | 120W |
| Output Voltage | 19Vdc |
| Weight | 0.5kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
