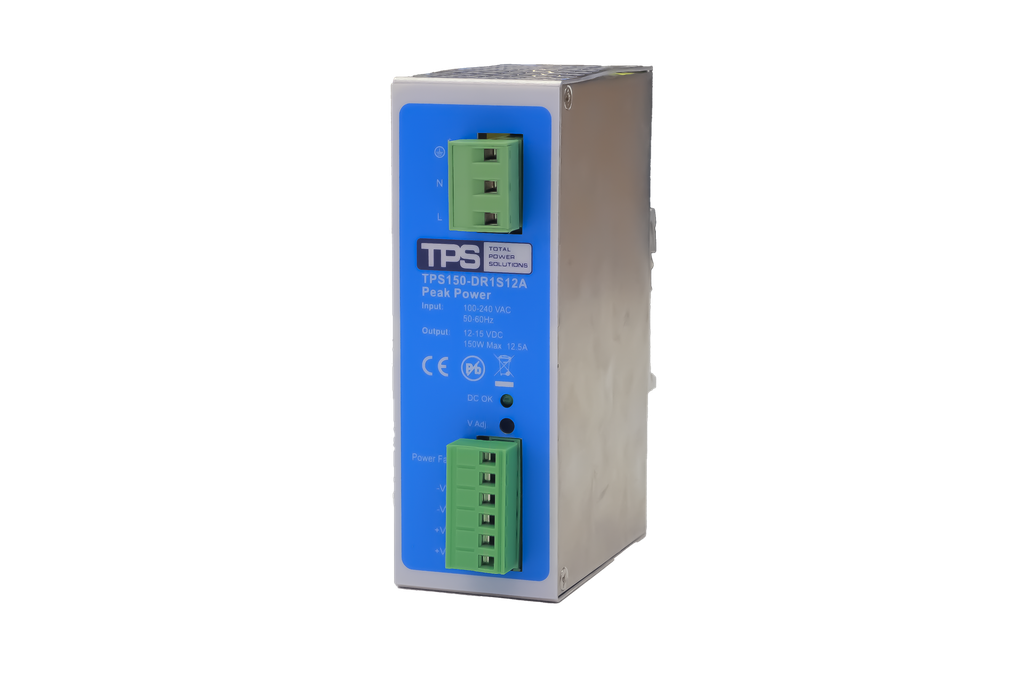

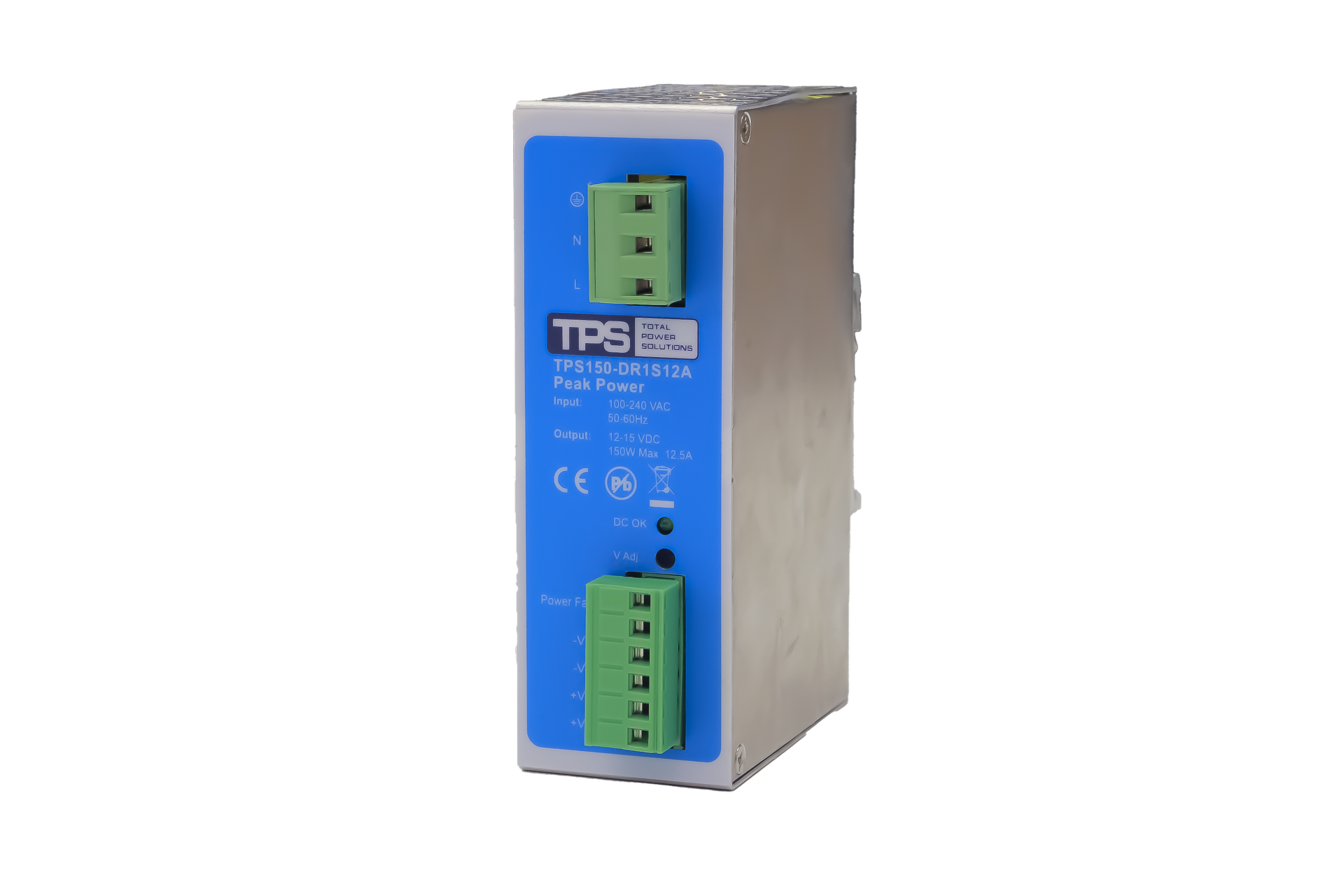

TPS150-DR1S12A - TPS100-320W Peak DR+ Series Din Rail Power Supply
The TPS150-DR1S12A is a 150W power supply belonging to the TPS100-320W Peak DR+ Series din rail power supply, which includes 100W/150W/240W/320W din rail power supply options to meet diverse industrial needs. It features a 170% power boost for 10 seconds, making it a reliable 170% power boost din rail power supply to handle temporary high-power demands. Adopting convection cooling, it operates efficiently as a convection cooling power supply, eliminating the need for fans and reducing maintenance efforts. As part of a series with efficiency up to 93%, it aligns with the 93% high efficiency din rail power supply standard, ensuring optimal energy usage.
Equipped with comprehensive protection mechanisms including OTP (Over Temperature Protection), OVP (Over Voltage Protection), and overload protection, it is an OTP OVP overload protection power supply that safeguards connected devices. This power supply holds UL, CE, and TUV certifications compliant with UL60950-1, qualifying it as a UL CE TUV certified din rail power supply. Backed by a 5-year warranty, it is a 5-year warranty din rail power supply, ensuring long-term reliability.
Ideal for various sectors, it serves as an automation industry din rail power supply, LED lighting power supply, and telecommunication din rail power supply. It accepts an 85-264VAC input, classifying it as an 85-264VAC input din rail power supply, and provides a 12-15VDC output, part of the 12-15VDC/24-28VDC output power supply options. Operating within a 0-70°C ambient temperature range (with derating from 50°C to 70°C), it is an 0-70°C operating din rail power supply. Designed for DIN rail TS 35/7.5 or TS 35/15 vertical mounting, it is a DIN rail TS 35 mounting power supply, ensuring easy integration into industrial setups.
Key Features
- Series Membership: Part of the TPS100-320W Peak DR+ Series din rail power supply, within the 100W/150W/240W/320W din rail power supply range.
- Power Boost: 170% power boost for 10 seconds, a 170% power boost din rail power supply to handle temporary high loads.
- Cooling System: Uses convection cooling, functioning as a convection cooling power supply for stable, fanless operation.
- High Efficiency: Part of a series with up to 93% efficiency, meeting the 93% high efficiency din rail power supply standard.
- Protection Mechanisms: Equipped with OTP, OVP, and overload protection, an OTP OVP overload protection power supply.
- Certifications: UL, CE, TUV certified (per UL60950-1), a UL CE TUV certified din rail power supply.
- Warranty: Backed by a 5-year warranty, a 5-year warranty din rail power supply.
- Applications: Ideal for automation industry, LED lighting, and telecommunication, serving as an automation industry din rail power supply, LED lighting power supply, and telecommunication din rail power supply.
- Input/Output: Accepts 85-264VAC input (85-264VAC input din rail power supply) and provides 12-15VDC output (part of 12-15VDC/24-28VDC output power supply options).
- Operating Temperature: Functions in 0-70°C ambient (with derating), an 0-70°C operating din rail power supply.
- Installation: Designed for DIN rail TS 35 mounting, a DIN rail TS 35 mounting power supply.
Specifications
Parameter | Value |
---|---|
Efficiency | 92% |
Electrical Phase | 1 |
Input Voltage | 85-264Vac, 120-370Vdc |
Number of Outputs | 2 |
Output Current | 12.5A |
Output Power | 150W |
Output Voltage | 12-15V |
