Product Description

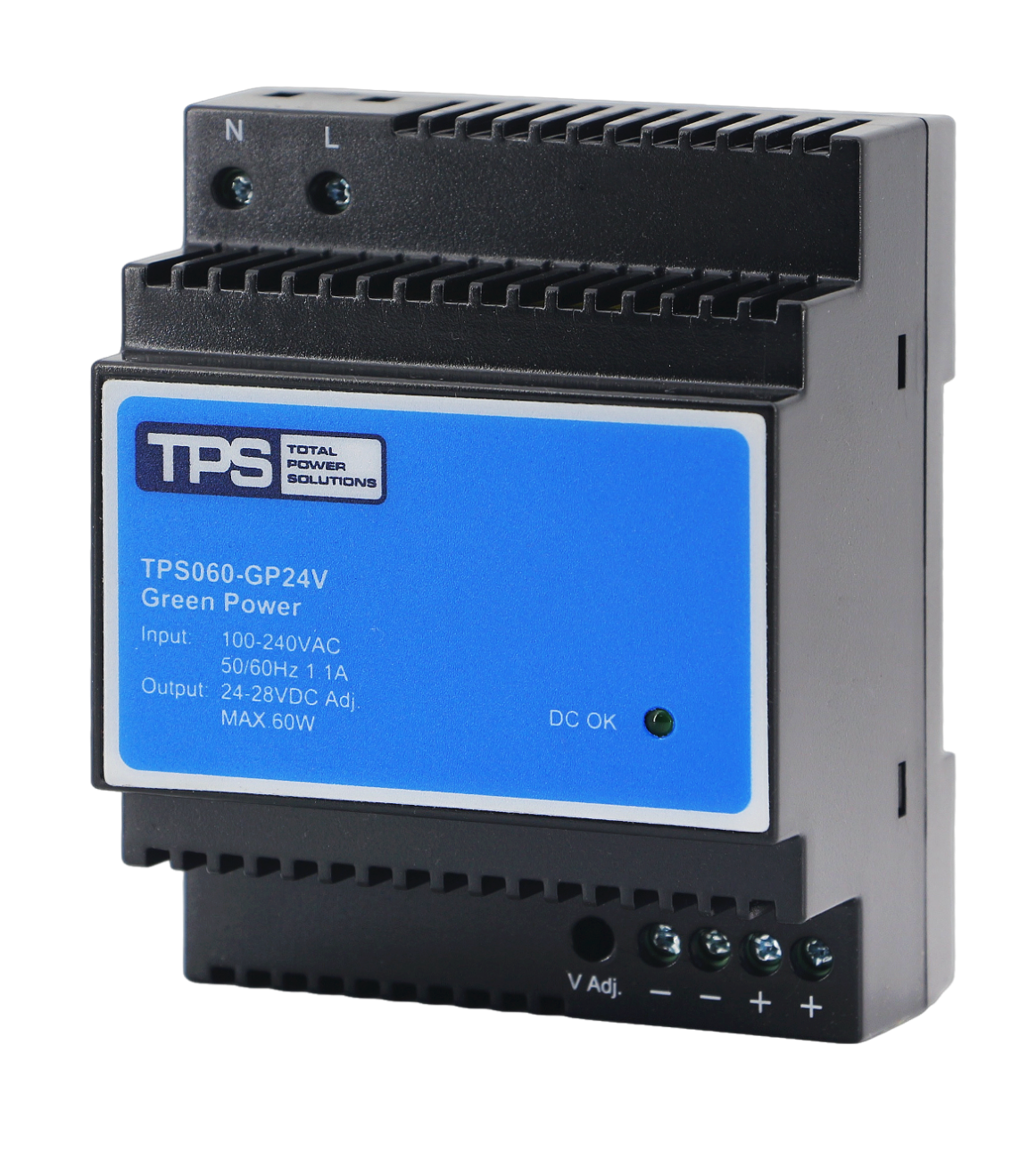

TPS060-GP24V - TPS010-100W GP Series Din Rail Power Supply
The TPS060-GP24V is a 60W high-performance power supply belonging to the TPS010-100W GP Series din rail power supply, a versatile range that includes 10W/30W/60W/100W din rail power supply options to meet diverse industrial and medical needs. As a convection cooled din rail power supply, it operates efficiently without fans, ensuring stable performance and low maintenance in noise-sensitive environments. It features IP20 double insulation, classifying it as an IP20 double insulation power supply, which enhances safety by protecting against dust and accidental contact. Backed by a 5-year warranty, it stands as a 5-year warranty din rail power supply, offering long-term reliability for users.
This power supply accepts a wide input range of 90-264VAC/120-370VDC, making it a 90-264VAC/120-370VDC input power supply, compatible with global power grids. It provides a 24-28V output, part of the 12-15V/24-28V output din rail supply options, adapting to the requirements of various connected devices. With a no-load consumption of less than 0.3W, it qualifies as a <0.3W no load consumption power supply, minimizing energy waste during standby. This model achieves 87% efficiency at maximum load (220VAC), ensuring optimal energy usage.
Ideal for multiple applications, it serves as a building automation control din rail supply, medical equipment din rail power supply, and is also suitable for alarm and safety systems, LED lighting, environmental control systems, and industrial automation equipment. It holds CE and RoHS certifications, classifying it as a CE RoHS certified din rail power supply, ensuring compliance with international standards. Designed for installation on DIN RAIL TS 35/7.5 or TS 35/15 vertical, it is a DIN RAIL TS 35 mounting power supply, facilitating easy integration into standard setups. It operates within an ambient temperature range of 0°C-50°C (with derating from 50°C to 70°C), making it a 0°C-50°C operating din rail power supply, suitable for harsh environments.
Key Features
- Series Affiliation: Part of the TPS010-100W GP Series din rail power supply, within the 10W/30W/60W/100W din rail power supply range.
- Efficient Cooling: Functions as a convection cooled din rail power supply for stable, fanless operation.
- Safety Insulation: Equipped with IP20 double insulation, an IP20 double insulation power supply for enhanced protection.
- Long-Term Warranty: Backed by a 5-year warranty, a 5-year warranty din rail power supply ensuring reliability.
- Wide Input Compatibility: Accepts 90-264VAC/120-370VDC input, a 90-264VAC/120-370VDC input power supply for global use.
- Adjustable Output: Provides 24-28V output, part of the 12-15V/24-28V output din rail supply options.
- Low No-Load Consumption: Features <0.3W no load consumption, qualifying as a <0.3W no load consumption power supply to reduce energy waste.
- Versatile Applications: Ideal as a building automation control din rail supply and medical equipment din rail power supply, among others.
- Certifications: CE and RoHS certified, a CE RoHS certified din rail power supply meeting international standards.
- Easy Installation: Designed for DIN RAIL TS 35 mounting, a DIN RAIL TS 35 mounting power supply for convenient setup.
- Operating Temperature: Functions in 0°C-50°C ambient (with derating), a 0°C-50°C operating din rail power supply suitable for harsh conditions.
Specifications
Parameter | Value |
---|---|
Efficiency | 87% |
Electrical Phase | 1 |
Input Voltage | 90-264Vac, 120-370Vdc |
Number of Outputs | 2 |
Output Current | 2.5A |
Output Power | 60W |
Output Voltage | 24-28V |
