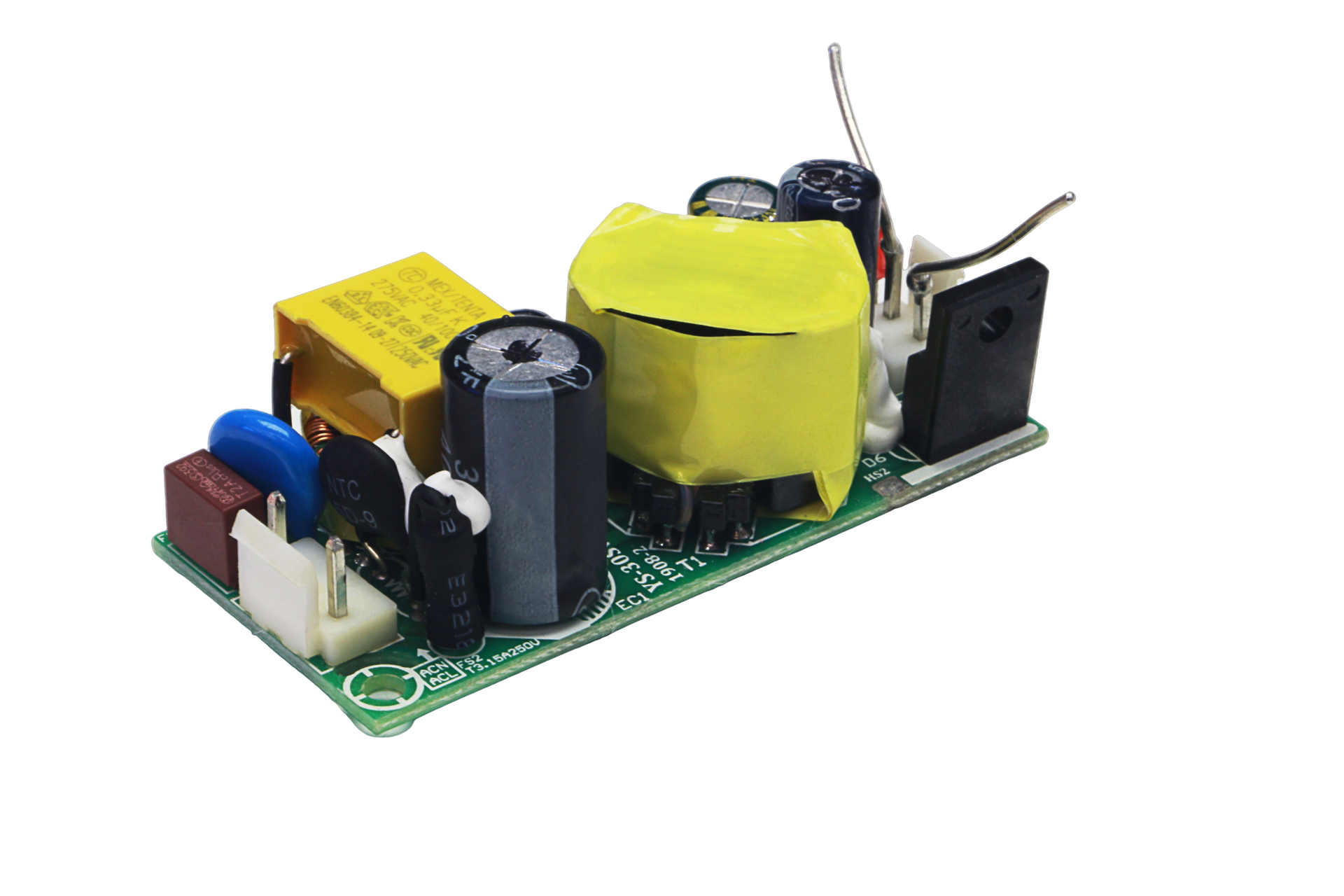

TPS-YS30SWR-5V Single Output Open Frame Power Supply

The TPS-YS30SWR-5V is a high-performance member of the TPS-YS30SWR Series single output open frame power supply, designed to deliver stable and efficient power for various electronic applications. As a 5V/12V/24V single output power supply, it provides a consistent 5V output with a rated current of 5A and a current range of 0-5A, ensuring reliable performance under varying load conditions. This 25W/30W open frame power supply offers a rated power of 25W and an efficiency of 81.0%, making it a low power compact size high efficiency power supply with dimensions of 66.2×30.5×25mm and a lightweight design of about 46g, ideal for space-constrained installations.

As a wide input voltage range power supply, it supports 85-264VAC (125-375VDC) input voltage and 47-63Hz input frequency, enabling seamless operation in global power grids as an 85-264VAC input power supply. It is an overload short-circuit overtemperature undervoltage protection power supply, featuring comprehensive protections including overload (125-150% of rated power with automatic recovery), short circuit (hiccup mode with automatic recovery), overtemperature, and undervoltage protection, ensuring safe and reliable operation. With an operating temperature range of -20~+40°C@100% Load and +60°C@60% Load, it stands as a -20~+40°C operating power supply, adaptable to diverse environmental conditions.

This power supply is a Level VI energy efficiency power supply, ensuring high energy efficiency with low no-load power consumption (220VAC IN: <0.3W; 110VAC IN: <0.1W). It is equipped with dual fuses on the AC side, classifying it as a dual fuses AC side power supply for enhanced safety. As a CE certified open frame power supply, it meets strict safety standards and is an EN55032 EN55024 compliant power supply, adhering to rigorous electromagnetic compatibility requirements.

Key Features

• Series Affiliation: Part of the TPS-YS30SWR Series single output open frame power supply, ensuring consistent quality and design across the series.
• Wide Input Compatibility: Functions as a wide input voltage range power supply with 85-264VAC (125-375VDC) input, suitable for global use as an 85-264VAC input power supply.
• Comprehensive Protections: Serves as an overload short-circuit overtemperature undervoltage protection power supply, integrating multiple protection mechanisms for enhanced safety.
• High Energy Efficiency: A Level VI energy efficiency power supply, ensuring optimal energy usage with low no-load power consumption.
• Compact and Efficient: A low power compact size high efficiency power supply with 66.2×30.5×25mm dimensions (66.2×30.5×25mm open frame power supply) and 46g weight (46g open frame power supply), saving space and energy.
• Enhanced Safety: Equipped as a dual fuses AC side power supply and a CE certified open frame power supply, meeting strict safety standards.
• EMC Compliance: An EN55032 EN55024 compliant power supply, adhering to rigorous electromagnetic compatibility requirements.
• Power Specifications: A 5V/12V/24V single output power supply with 5V output, 0-5A current range, and 25W rated power (part of 25W/30W open frame power supply options).
• Environmental Adaptability: Operates as a -20~+40°C operating power supply, suitable for diverse working conditions.
