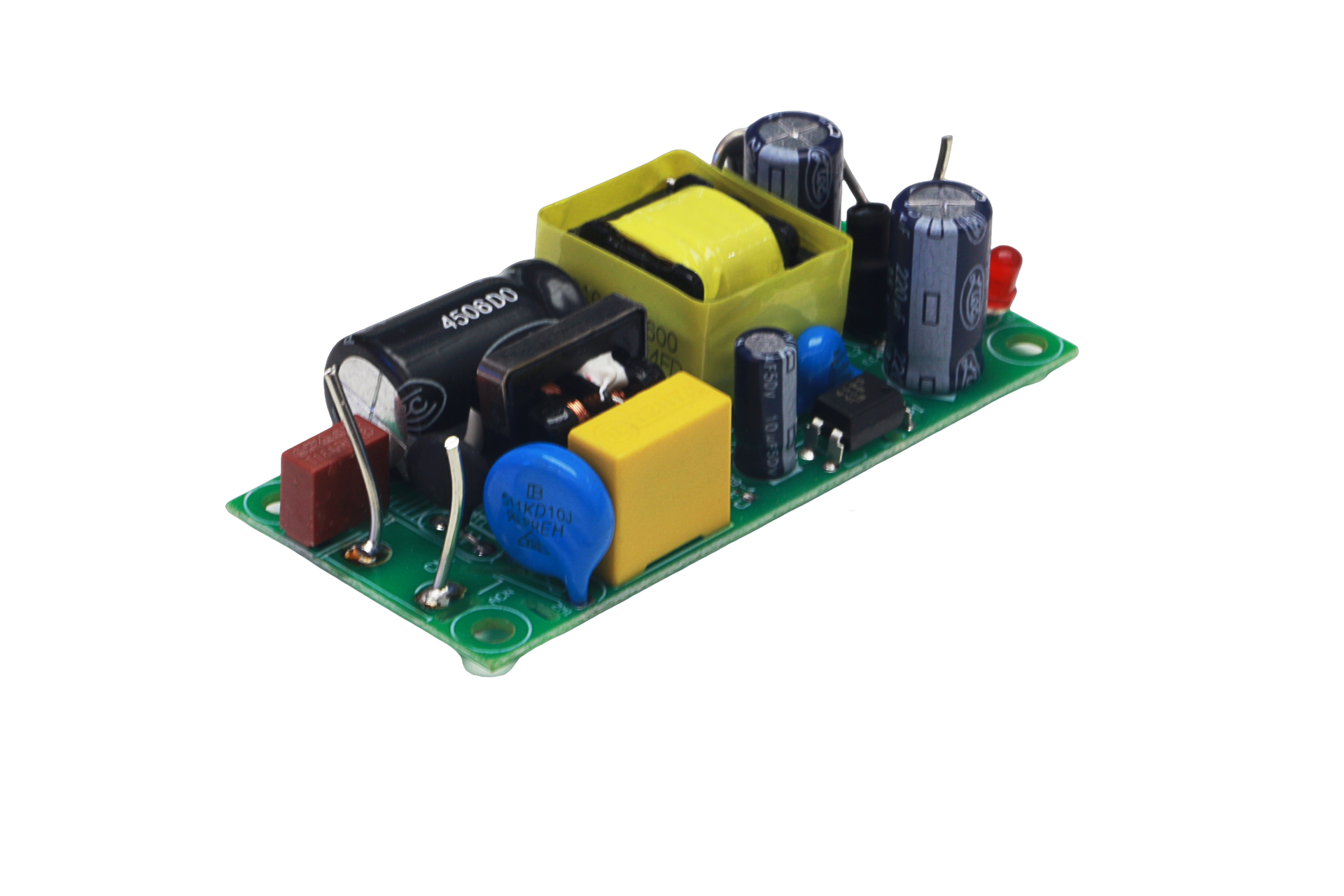

TPS-YS12SFD-24V Single Output Open Frame Power Supply

The TPS-YS12SFD-24V is a reliable member of the TPS-YS12SFD Series single output open frame power supply, designed to deliver stable and efficient power for various electronic devices. As a 3.3V/5V/9V/12V/15V/24V/36V single output power supply, it provides a consistent 24V output with a rated current of 500mA and a current range of 0-500mA, ensuring reliable performance under varying load conditions. This 8.25W/10W/12W open frame power supply offers a rated power of 12W and an efficiency of 84.5%, making it a small size high efficiency power supply with dimensions of 67×31×19mm and a lightweight design of 28.5g, ideal for space-constrained installations.

As a wide input voltage range power supply, it supports 100~264VAC input voltage and 47~63Hz frequency, enabling seamless operation in global power grids as a 100~264VAC input power supply. It is an overload short-circuit over-voltage protection power supply, featuring comprehensive protections: overload protection (130-160% of rated power with auto-recovery after fault removal), short-circuit protection (hiccup mode with auto-recovery after short circuit removal), and over-voltage protection (VH1: >160%), ensuring safe and reliable operation. With an operating temperature range of -15°C~+45°C@100% Load and +60°C@60% Load, it stands as a -15°C~+45°C operating power supply, adaptable to diverse environmental conditions.

This power supply is an ultra-low output ripple power supply with ripple <100mVp-p, ensuring stable power delivery for sensitive equipment. It meets strict safety and electromagnetic compatibility standards as an EN55032:2015 compliant power supply. Additionally, it features a withstand voltage of I/P-O/P: 2.5KVAC for 1min (3kV withstand voltage available on request) and an insulation resistance of I/P-O/P: 500VDC/50M Ohms, enhancing its reliability.

Key Features

• Series Affiliation: Part of the TPS-YS12SFD Series single output open frame power supply, ensuring consistent quality and design across the series.
• Wide Input Compatibility: Functions as a wide input voltage range power supply with 100~264VAC input, suitable for global use as a 100~264VAC input power supply.
• Comprehensive Protections: Serves as an overload short-circuit over-voltage protection power supply, integrating overload, short-circuit, and over-voltage protection for enhanced safety.
• Compact and Efficient: A small size high efficiency power supply with 67×31×19mm dimensions (67×31×19mm open frame power supply) and 28.5g weight (28.5g open frame power supply), saving space and energy.
• Stable Output: An ultra-low output ripple power supply with ripple <100mVp-p, ensuring stable power delivery for sensitive equipment.
• Power Specifications: A 3.3V/5V/9V/12V/15V/24V/36V single output power supply with 24V output, 0-500mA current range, and 12W rated power (part of 8.25W/10W/12W open frame power supply options).
• Environmental Adaptability: Operates as a -15°C~+45°C operating power supply, suitable for diverse working conditions.
• Compliance: An EN55032:2015 compliant power supply, meeting strict electromagnetic compatibility standards.
