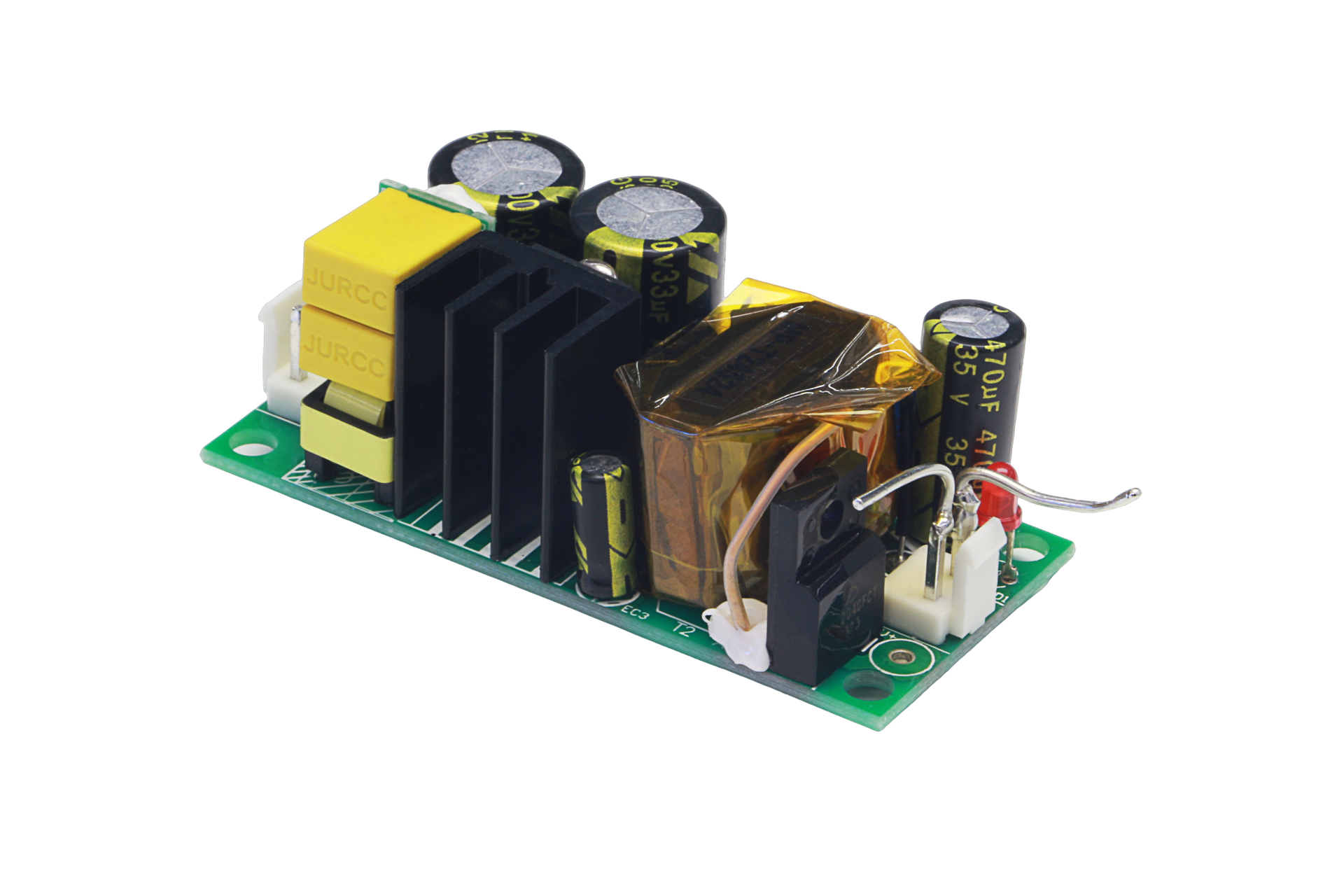

TPS-MPT24S-12V Single Output Open Frame Power Supply

The TPS-MPT24S-12V is a high-reliability member of the TPS-MPT24S High Voltage Series single output open frame power supply, designed to deliver stable and efficient power for industrial applications requiring high voltage compatibility. As a 5V/9V/12V/18V/24V single output power supply, it provides a consistent 12V output with a rated current of 2A (176-500VAC) and a current range of 0-2A under natural cooling, offering a rated power of 24W, making it part of the 17.5W/18W/22W/24W open frame power supply range.

As a wide input voltage range 100VAC-500VAC power supply, it supports AC 176~500V (DC 249V~707V) at rated power and 50% power derating at AC 100~176V (DC 141V~248V), enabling versatile operation in diverse power grids. It features a fanless silent design, classifying it as a fanless silent design power supply, ensuring quiet operation, and relies on natural cooling, making it a natural cooling power supply.

This power supply boasts a 3750VAC isolation withstand voltage, qualifying it as a 3750VAC isolated withstand power supply for safe electrical separation. It is a regulated output low ripple power supply with a maximum ripple of <150mVp-p, ensuring stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit over current over voltage over power protection power supply, featuring overload (115%~180% of rated power) protection in hiccup mode with automatic recovery after fault removal.

As a 100% full-load burn-in test power supply, it undergoes rigorous testing to ensure reliability, with a typical efficiency of 82%. With dimensions of 66×30.5×26.5mm (66×30.5×26.5mm open frame power supply) and a weight of approximately 37g (37g open frame power supply), it offers a compact design for space-constrained installations. It comes with a 3-year warranty, making it a 3-year warranty power supply. Compliance-wise, it meets strict standards as a GB 4943.1-2011 compliant power supply and EN55032 Class A EMC power supply.

Key Features

• Series Affiliation: Part of the TPS-MPT24S High Voltage Series single output open frame power supply, ensuring consistent quality for high-voltage applications.
• Wide Input Range: Functions as a wide input voltage range 100VAC-500VAC power supply, supporting AC 176~500V (DC 249V~707V) with derating at lower inputs.
• High Isolation: A 3750VAC isolated withstand power supply, ensuring safe electrical separation between input and output.
• Comprehensive Protections: Serves as an output short-circuit over current over voltage over power protection power supply, with hiccup mode and automatic recovery.
• Stable Output: A regulated output low ripple power supply with max ripple <150mVp-p, suitable for sensitive equipment.
• Silent Operation: A fanless silent design power supply, ensuring quiet operation in noise-sensitive environments.
• Rigorous Testing: A 100% full-load burn-in test power supply, ensuring reliability through comprehensive testing.
• Natural Cooling: Operates as a natural cooling power supply, relying on natural convection for heat dissipation.
• Warranty: A 3-year warranty power supply, offering long-term protection and peace of mind.
• Power Specifications: A 5V/9V/12V/18V/24V single output power supply with 12V output, 2A rated current, and 24W rated power (part of 17.5W/18W/22W/24W options).
• Compact Design: With 66×30.5×26.5mm dimensions (66×30.5×26.5mm open frame power supply) and 37g weight (37g open frame power supply), saving installation space.
• Compliance: A GB 4943.1-2011 compliant power supply and EN55032 Class A EMC power supply, meeting strict safety and EMC standards.
