TPS-MPT120S-24V
Article Number: OF1334 Manufacturer Code: OF0010067 Manufacturer: TPS
https://www.shop-tps.com/web/image/product.template/28388/image_1920?unique=6285a28
Consultation is required. Please contact us.

Price Each

29.27 € 29.27 EUR 29.27 € (Inc.Tax 34.83 €)

29.27 €

    This combination does not exist.

    Accessories for Product

    Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

    Product Description

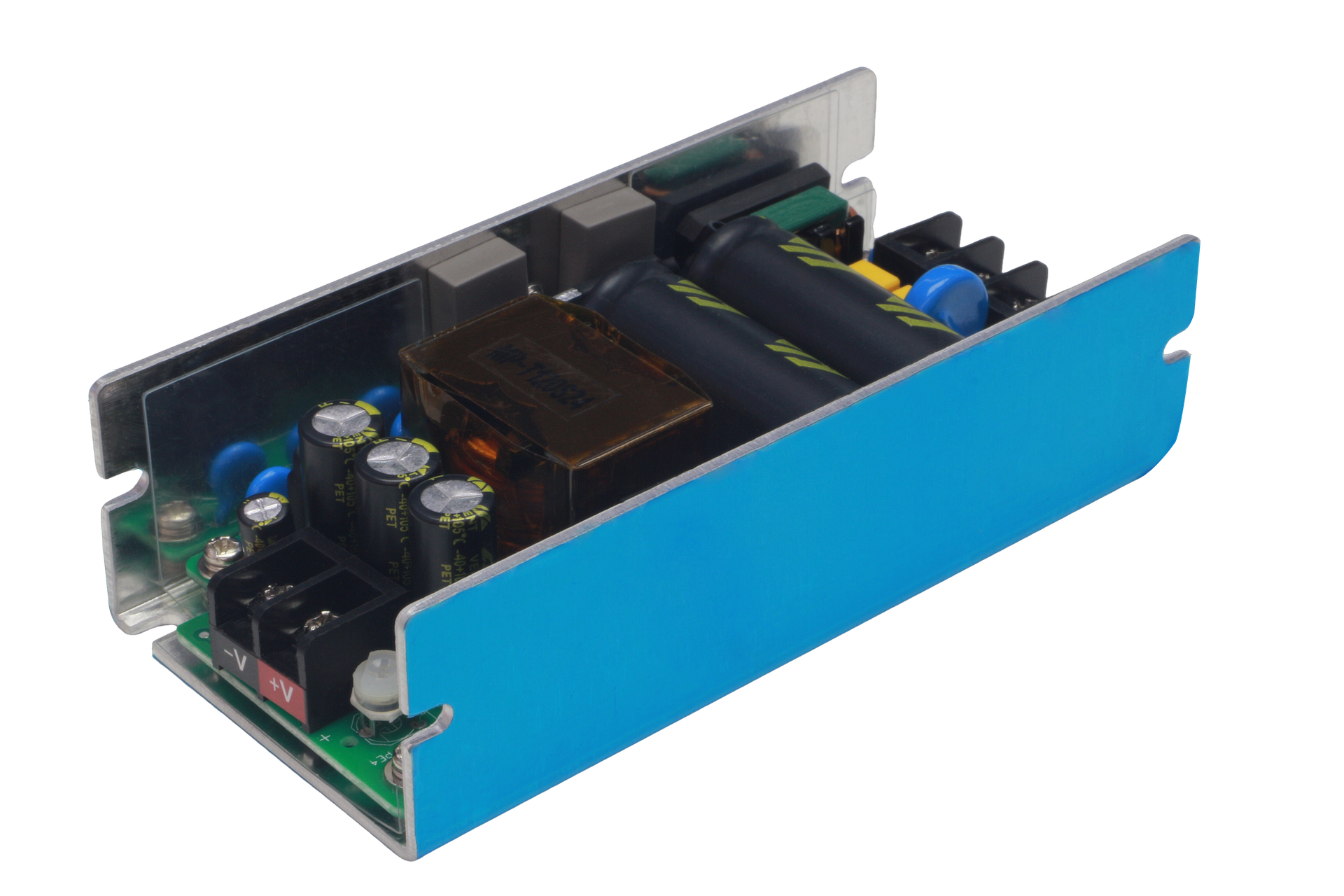

    TPS-MPT120S-24V Single Output Open Frame Power Supply

    The TPS-MPT120S-24V is a high-performance member of the TPS-MPT120S High Voltage Series single output open frame power supply, engineered to deliver stable and efficient power for industrial applications requiring high voltage compatibility. As a 12V/24V/48V single output power supply, it provides a consistent 24V output with a rated current of 5A (176-500VAC) and a current range of 0-5A under natural cooling, offering a rated power of 120W, classifying it as a 120W open frame power supply.

    As a wide input voltage range 176VAC-500VAC power supply, it supports 176~500VAC or 249~707VDC, with 50% power derating at 100~176VAC (142~249VDC), enabling versatile operation in diverse power grids. It is an output adjustable voltage power supply with an adjustable voltage range of 22~27V, allowing for flexible output calibration.

    This power supply boasts a 3000VAC isolated withstand voltage, qualifying it as a 3000VAC isolated withstand power supply for safe electrical separation. It features a maximum ripple of 100mVp-p, making it a 50mVp-p/100mVp-p ripple power supply, ensuring stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit over current over voltage protection power supply (overcurrent: 110%-170% of rated current with hiccup mode and auto-recovery; overvoltage: 110%-130% of rated voltage with shutdown and restart recovery; short-circuit: hiccup mode with auto-recovery) and an input undervoltage over temperature protection power supply (undervoltage: 90-100V; over temperature: hiccup mode with auto-recovery).

    As an 87%-88% efficiency power supply, it offers a typical efficiency of 87% and operates reliably within an operating temperature range of -25°~+60℃ (refer to derating curve) and 20%~90% RH (non-condensing), standing as a -25°~+60℃ operating temperature power supply. With dimensions of 126x62x35mm (126x62x35mm open frame power supply) and a weight of approximately 290g (290g open frame power supply), it offers a compact design for space-constrained installations. Compliance-wise, it meets strict standards as an IEC62368-1 compliant power supply and CISPR32/EN55032 CLASS A EMC power supply.

    Key Features

    • Series Affiliation: Part of the TPS-MPT120S High Voltage Series single output open frame power supply, ensuring consistent quality for high-voltage applications.
    • Wide Input Range: Functions as a wide input voltage range 176VAC-500VAC power supply, supporting 176~500VAC or 249~707VDC with derating at lower inputs.
    • High Isolation: A 3000VAC isolated withstand power supply, ensuring safe electrical separation between input and output.
    • Adjustable Output: An output adjustable voltage power supply with a 22~27V adjustment range for flexible calibration.
    • Environmental Adaptability: Operates as a -25°~+60℃ operating temperature power supply, suitable for extreme temperature conditions.
    • Comprehensive Protections: Serves as an output short-circuit over current over voltage protection power supply and input undervoltage over temperature protection power supply, with various protection modes and auto-recovery features.
    • Power Specifications: A 12V/24V/48V single output power supply with 24V output, 5A rated current, and 120W rated power (120W open frame power supply).
    • Efficient Performance: An 87%-88% efficiency power supply with a typical efficiency of 87% for energy-saving operation.
    • Stable Output: A 50mVp-p/100mVp-p ripple power supply with max ripple 100mVp-p, suitable for sensitive equipment.
    • Compact Design: With 126x62x35mm dimensions (126x62x35mm open frame power supply) and 290g weight (290g open frame power supply), saving installation space.
    • Compliance: An IEC62368-1 compliant power supply and CISPR32/EN55032 CLASS A EMC power supply, meeting strict safety and EMC standards.

    Specifications

    Parameter Value
    Dimensions (L*W*H)(mm) 126*62*35mm
    Efficiency ≥87%
    Input Current ≤12A/176Vac
    Input Voltage 176-500Vac, 249-707Vdc
    Output Current 5A
    Output Power 120W
    Output Voltage 24V
    Weight Approx. 290g
