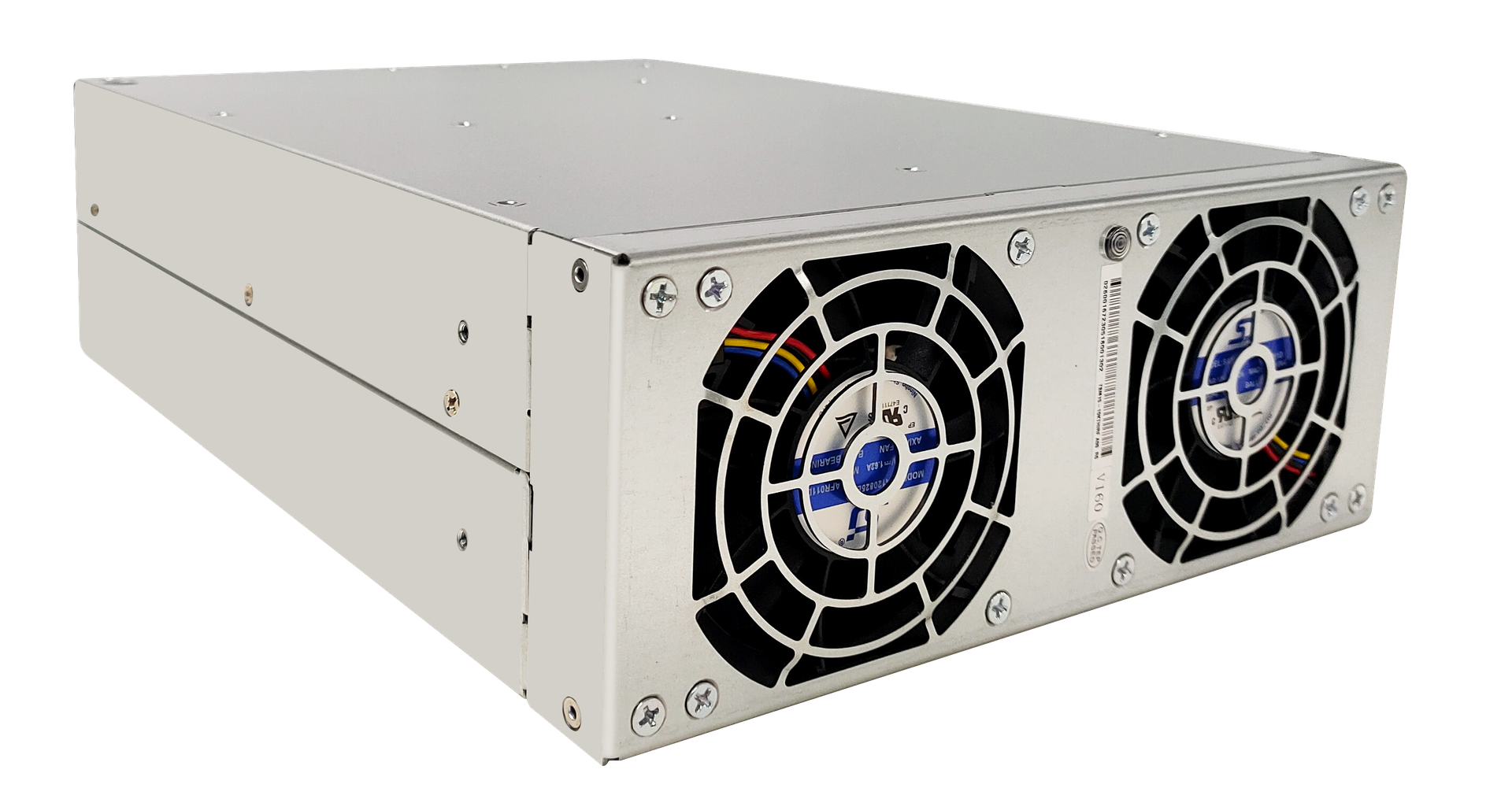

TPS-BM157200THIT Bidirectional Power Module

The TPS-BM157200THIT Bidirectional Power Module is a high-performance 7200W Three-Phase AC-DC Module, part of the TPS-BM157200THIT/TPS-BM157200THIRT series, designed for seamless bidirectional energy conversion in three-phase systems. As a Three-Phase No Neutral Line Power Module, it eliminates neutral line current issues, completely solving the problem of neutral line current in power systems and enabling reliable inverter operation in grid-connected setups (Grid-Connected Inverter Power Module) . Functioning as a Three-Phase AC-DC Bidirectional Isolation Module, it delivers 7200W in AC-DC direction with a 15VDC output (15VDC Output Bidirectional Module) and 480A current (480A DC Output Power Module), while supporting 5760W in DC-AC direction. It operates with a 380/400/415VAC input (380/400/415VAC Input Power Module) within 343~456VAC (full load) and boasts 91.5% peak efficiency in AC-DC (91.5% High Efficiency Bidirectional Module) and 90.5% in DC-AC, with high power factor (PF>0.99, High PF>0.99 Three-Phase Module) and low THDi (THDi <5%, Low THDi <5% Power Module) under full load . Equipped with Seamless Voltage Bidirectional Switch Module technology, it meets fast response requirements of test equipment. It features excellent EMC performance compliant with EN55032 (EN55032 Compliant Power Module) and Forced Air Cooling (default front inlet and rear outlet), adapting to harsh environments with no derating at 45°C (Harsh Environment Adaptable Power Module) . With a Modular Bidirectional Power Module design, it supports up to 4 units in parallel for intelligent expansion . It can pass UL/CE/TUV certification (UL/CE/TUV Certifiable Power Module), making it ideal for Cell Formation Testing Power Module, Power Bidirectional Testing Module, and Energy Recyclable Power Module applications as a Three-Phase LV AC-DC Power Module .

Key Features

• Three-Phase No Neutral Line Design: Eliminates neutral line current, ensuring stable operation in three-phase systems .
• High Performance Metrics: 7200W AC-DC/5760W DC-AC, 91.5%/90.5% efficiency, 15VDC/480A output, PF>0.99, and THDi <5% .
• Seamless Switching & Isolation: Supports grid-connected inverter operation with seamless voltage switching for test equipment .
• Modular & Expandable: Up to 4 units in parallel for flexible power scaling via intelligent expansion .
• Reliable & Compliant: Forced air cooling, harsh environment adaptability, EN55032 compliance, and UL/CE/TUV certifiable .
