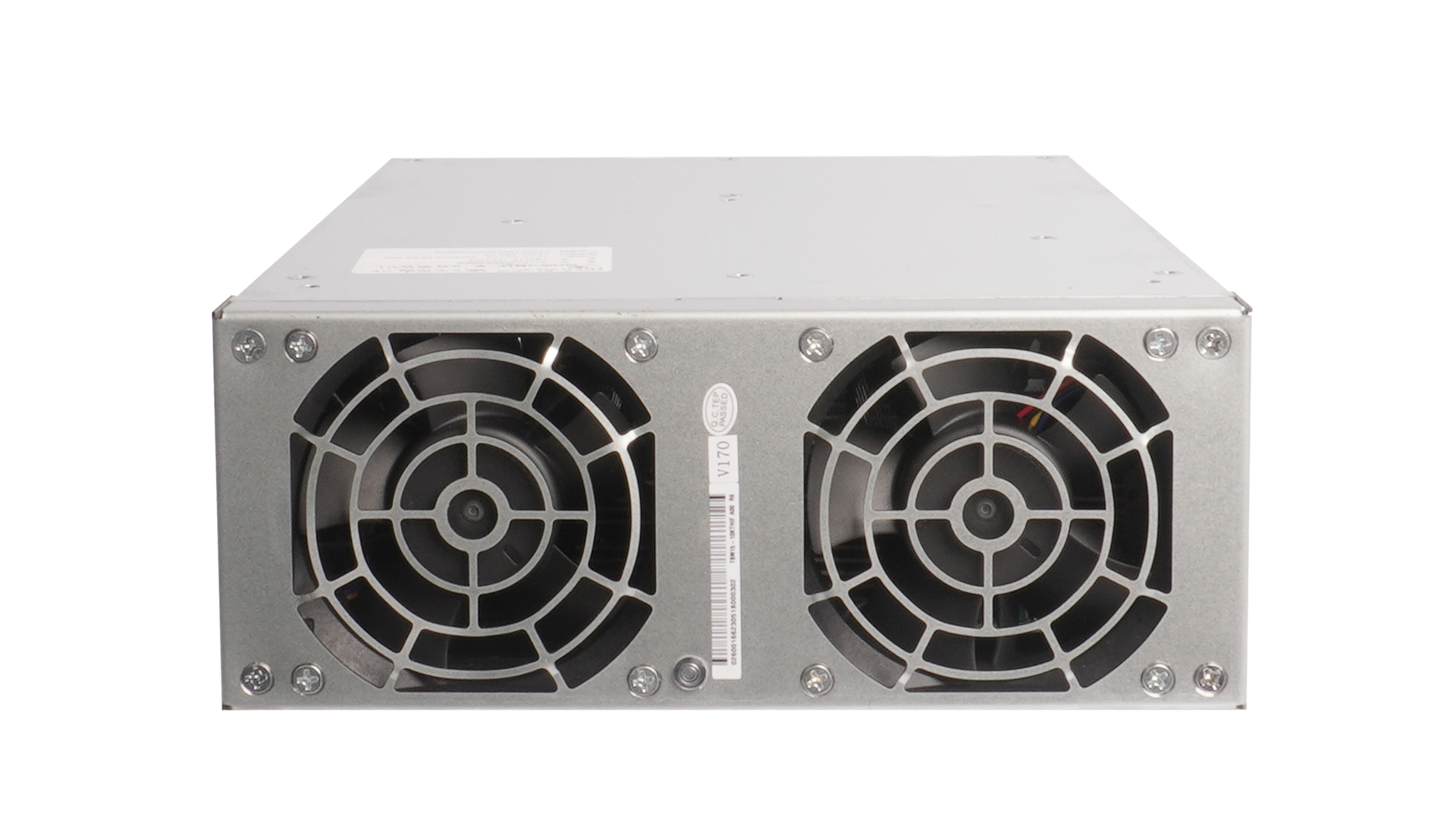

TPS-BM1510KUHIRF Bidirectional Power Module

The TPS-BM1510KUHIRF Bidirectional Power Module is a high-performance three-phase unit, part of the TPS-BM1510KUHIF/TPS-BM1510KUHIRF series, designed for seamless bidirectional energy conversion between AC and DC. As a Three-Phase No Neutral Line Power Module, it eliminates neutral line current issues, ensuring stable operation in three-phase systems and addressing common power distribution challenges. As a 10000W Three-Phase AC-DC Module, it operates with a 480VAC input (480VAC Input Power Module) within the range of 384~528VAC, delivering a 15.5VDC output (15.5VDC Output Bidirectional Module) with a rated current of 645A (645A DC Output Power Module). It achieves 92% peak efficiency (92% High Efficiency Bidirectional Module), maintains a high power factor (PF>0.99, High PF>0.99 Three-Phase Module), and keeps total harmonic distortion low (THDi <5%, Low THDi <5% Power Module) under full load, ensuring optimal power quality. Functioning as a Three-Phase AC-DC Bidirectional Isolation Module, it supports grid-connected inverter operations (Grid-Connected Inverter Power Module) and complies with EN55032 (EN55032 Compliant Power Module) for EMC performance. Equipped with a Forced Air Cooling Power Module system (rear inlet, front outlet, specific to R type), it operates reliably in harsh environments with no derating at 45°C (Harsh Environment Adaptable Power Module). With a Modular Bidirectional Power Module design, it supports up to 4 units in parallel for scalable power solutions. It is UL/CE/TUV Certified Power Module, making it ideal for Cell Formation Testing Power Module, Power Bidirectional Testing Module, and Energy Recyclable Power Module applications, fitting the Three-Phase LV AC-DC Power Module category.

Key Features

• Three-Phase No Neutral Line Design: Eliminates neutral line current, enhancing system stability in three-phase setups.
• High Performance Metrics: 10000W capacity, 92% efficiency, 480VAC input, 15.5VDC/645A output, PF>0.99, and THDi <5% for superior power quality.
• Bidirectional Isolation: Enables seamless AC-DC/DC-AC conversion, suitable for grid-connected inverter systems.
• Modular & Expandable: Supports up to 4 units in parallel, offering flexible scalability for varying power demands.
• Reliable Cooling & Compliance: R-type forced air cooling (rear inlet, front outlet), harsh environment adaptability, and EN55032 compliance with UL/CE/TUV certification.
