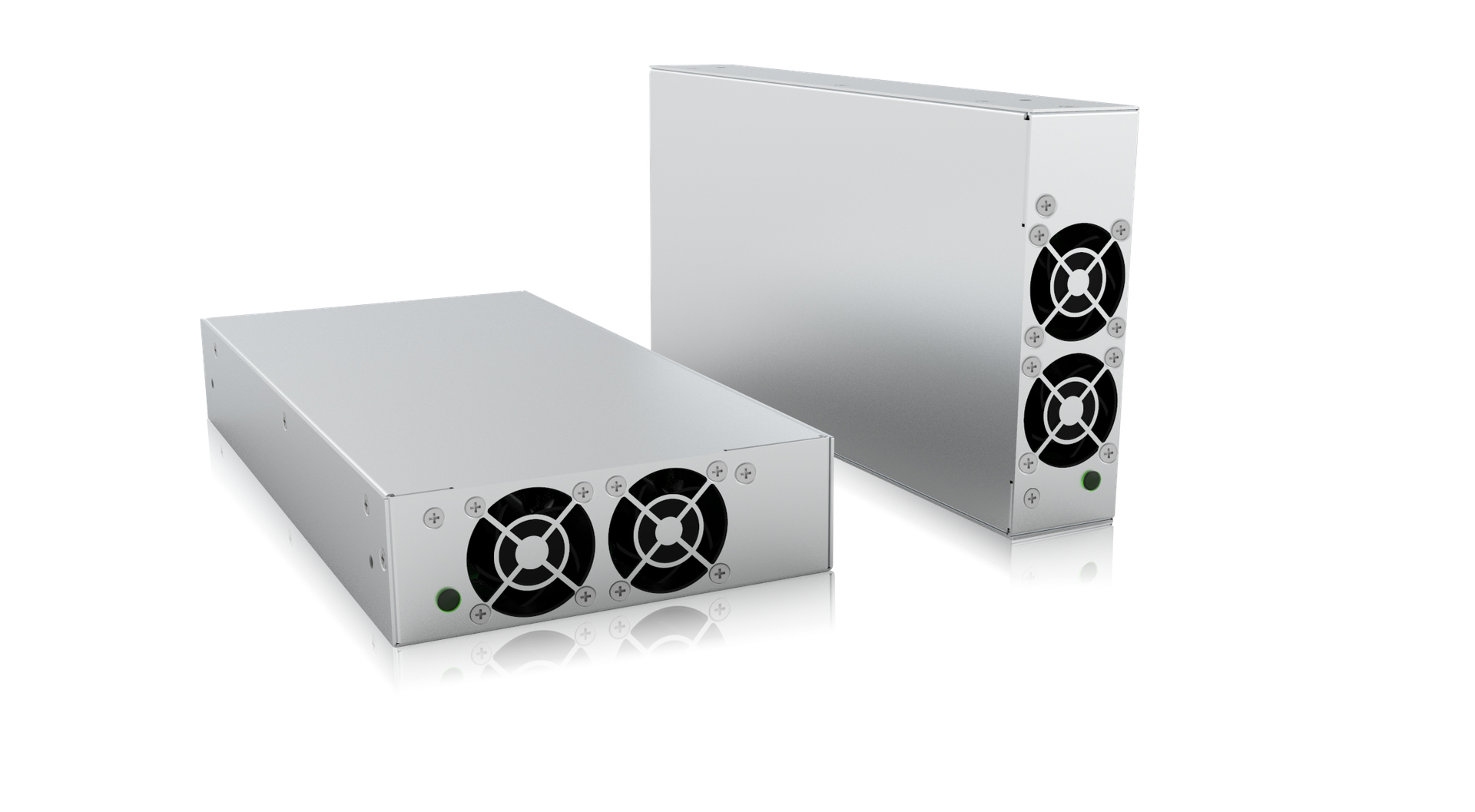

TPS-BM142650SI Bidirectional Power Module
The TPS-BM142650SI Bidirectional Power Module is a high-performance unit within the TPS-BM series, which also includes TPS-BM142250 bidirectional power module and TPS-BM142400 AC-DC power module. As a TPS-BM142650 energy flow module, it enables seamless bidirectional energy transfer between AC and DC sides, functioning as a Bidirectional AC-DC isolation module for reliable grid-connected system operations. Rated at 2650W, it falls under the 2250W/2400W/2650W power module range, delivering exceptional efficiency with 93.5% efficiency in AC to DC conversion (93.5% efficiency power module). It features rapid mode switching with a switching time of less than 10ms (<10ms switching power module), ensuring quick adaptation to dynamic power demands. Designed as a Single-phase LV AC-DC module, it operates with an AC input range of 176~264VAC and a DC output of 14VDC, boasting high power factor (PF>0.99, High PF>0.99 power module) and low total harmonic distortion (THDi <5%, Low THDi <5% power module) to meet strict power quality standards. Equipped with a Forced air cooling power module system (front inlet and rear outlet airflow), it maintains stable performance in harsh environments. As a Modular bidirectional power module, it supports up to 8 units in parallel for scalable power solutions, making it ideal for applications such as Cell formation testing power module and Power bidirectional testing module, backed by comprehensive fault protection and compliance with international standards.
Key Features
- Bidirectional Energy Flow: Enables AC-DC and DC-AC conversion with isolation, suitable for energy recycling and grid-connected systems.
- High Performance Metrics: 2650W rating, 93.5% AC-DC efficiency, <10ms switching, PF>0.99, and THDi <5% for optimal power quality.
- Modular Design: Supports parallel operation (up to 8 units) for flexible power scaling in industrial setups.
- Reliable Cooling: Forced air cooling ensures stable operation in harsh environments, enhancing durability.
- Application Versatility: Perfect for cell formation testing, power bidirectional testing, and energy recyclable systems.
Specifications
| Parameter | Value |
|---|---|
| Air Flow | From front to rear |
| Dimensions (L*W*H)(mm) | 141*44*285 |
| Efficiency | 86%(DC to AC), 91.5%(AC to DC) |
| Input Current | ≤17A(AC to DC), 123.7A(DC to AC) |
| Input Power | 1855W(DC to AC) |
| Input Voltage | 15Vdc, 176-264Vac |
| Output Current | 189A(AC to DC) |
| Output Power | 2650W(AC to DC) |
| Output Voltage | 14Vdc, 176-264Vac |
| Output Voltage Accuracy | 0.5%(AC to DC) |
| Rated Input Voltage | 220Vac, 230Vac, 240Vac |
| Weight | ≤2.4kg |
