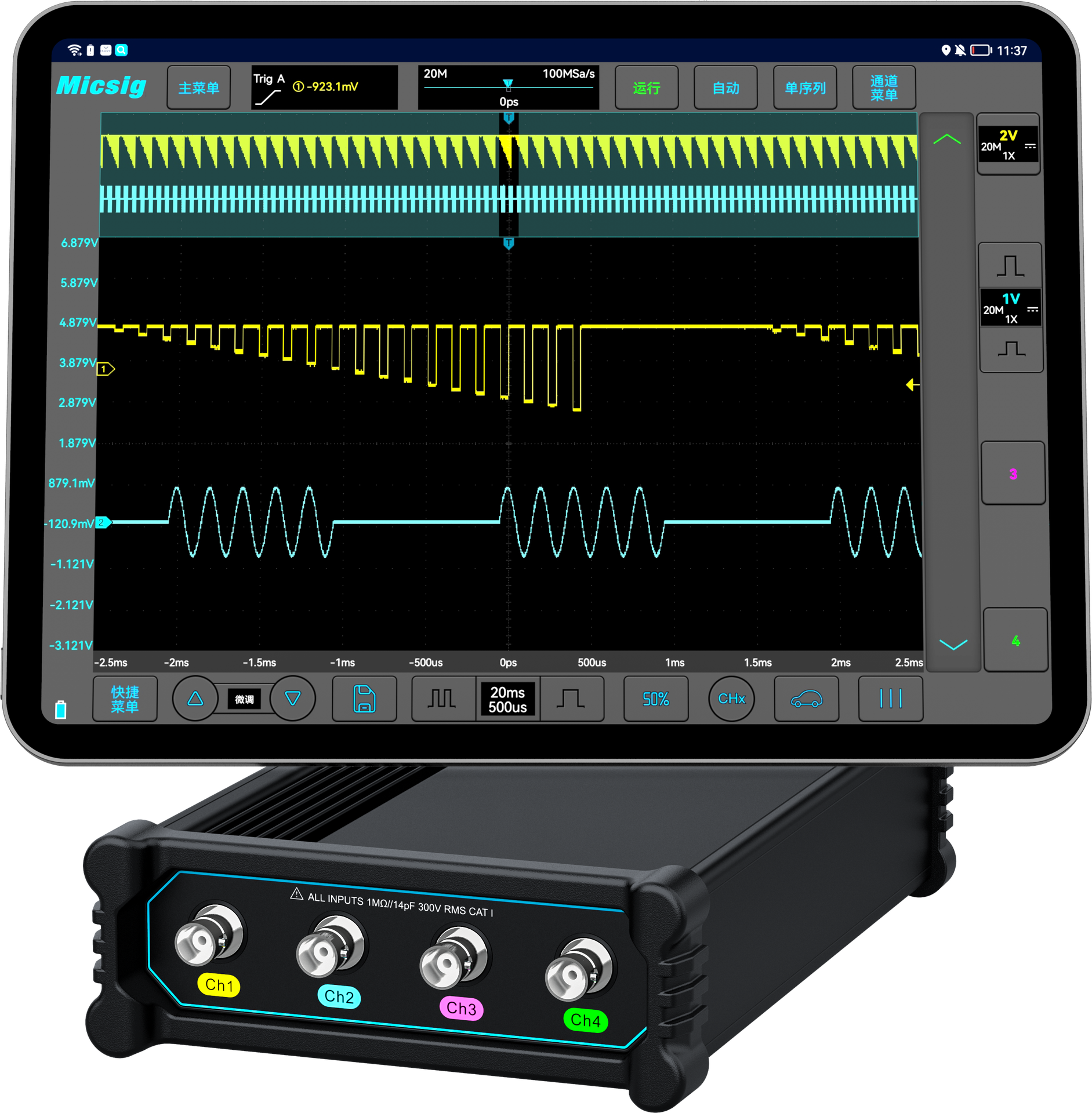

Oscillograph VATO2004 - Portable Automotive Diagnostic Oscilloscope

The Oscillograph VATO2004 is a high-performance, split-type automotive diagnostic oscilloscope designed for professional vehicle troubleshooting and waveform analysis. This portable oscilloscope combines a compact, battery-powered design with advanced measurement capabilities, making it ideal for both workshop and field use. It connects seamlessly to any Android device (smartphone, tablet, or PC) via USB Type-C, offering an intuitive interface and one-click test configurations for a wide range of automotive systems.

With its 200MHz bandwidth, 4 analog channels, 1GSa/s sampling rate, and deep 50Mpts memory depth, the VATO2004 captures detailed signal waveforms with high accuracy. It supports multiple serial bus protocols (including CAN, LIN), features 31 automated measurements, and includes a comprehensive automotive waveform library for quick diagnostics of sensors, actuators, ignition systems, and communication networks.

Key Features

• One-step diagnostic operation with pre-configured automotive test presets
• Compact, portable design with built-in 7500mAh Li-ion battery for all-day use
• 200MHz bandwidth and 4 analog channels for multi-signal analysis
• 1GSa/s sampling rate and 50Mpts deep memory for capturing signal details
• Supports CAN, LIN, FlexRay, K-line bus decoding and triggering
• 31 automated measurements and hardware digital filtering
• Connects to Android devices via USB Type-C for flexible operation
• Includes automotive tests for ignition, sensors, actuators, and startup circuits
