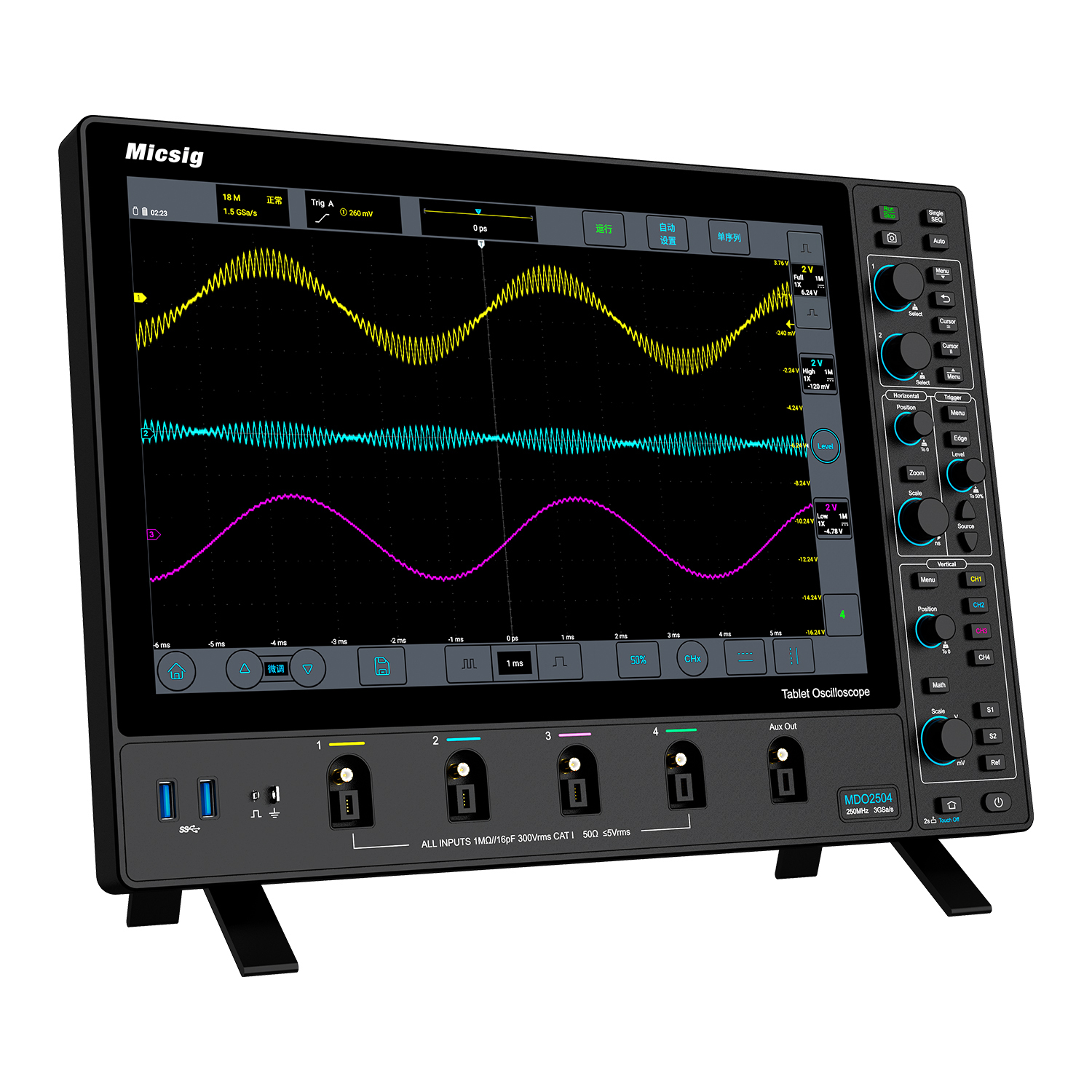

Digital Storage Oscilloscope MDO5004

The MDO5004 is a high-performance 4-channel digital storage oscilloscope (DSO) featuring a maximum bandwidth of 500MHz and an ultra-deep memory depth of 360Mpts. It is designed for engineers who require precise signal capture and analysis, offering a real-time sampling rate of 3GSa/s and an impressive waveform capture rate of 230,000 wfms/s. Its low noise floor of less than 90µVrms ensures accurate measurement of even weak signals. The oscilloscope comes with a large 14-inch anti-glare touch screen with 1920x1200 resolution, providing a clear and intuitive user interface. Key functionalities include standard segmented storage for intermittent signals, advanced math and FFT analysis, and a comprehensive set of serial bus decoding capabilities (including CAN FD, LIN, SPI, I²C, ARINC-429, and MIL-STD-1553B). With the innovative Mic-OPI™ probe interface for automatic probe compensation, 32GB of internal storage, and extensive remote control options via PC, smartphone APP, or SCPI commands, the MDO5004 is a versatile and powerful tool for a wide range of debugging and test applications.

Key Features

• High Bandwidth & Deep Memory: 500MHz bandwidth and up to 360Mpts memory depth for capturing long, complex waveforms without compromise.
• Excellent Signal Integrity: Low noise floor (<90µVrms) and high waveform capture rate (230,000 wfms/s) for accurate visualization of signal details.
• Advanced Acquisition Modes: Standard segmented storage function efficiently captures intermittent events like serial packets or laser pulses.
• User-Friendly Operation: 14-inch high-resolution capacitive touch screen with an intuitive UI designed for quick mastery.
• Smart Probe Interface: Mic-OPI™ interface provides automatic probe attenuation matching and compensation.
• Extensive Connectivity & Control: Supports PC and mobile remote control, SCPI commands, and features 32GB internal storage for data handling.
• Comprehensive Protocol Analysis: Built-in decoding for a wide array of serial buses including CAN FD, LIN, SPI, I²C, ARINC-429, and MIL-STD-1553B.
• Flexible Form Factor: Ultra-thin design (35.8mm) supports wall or arm mounting to save bench space.
