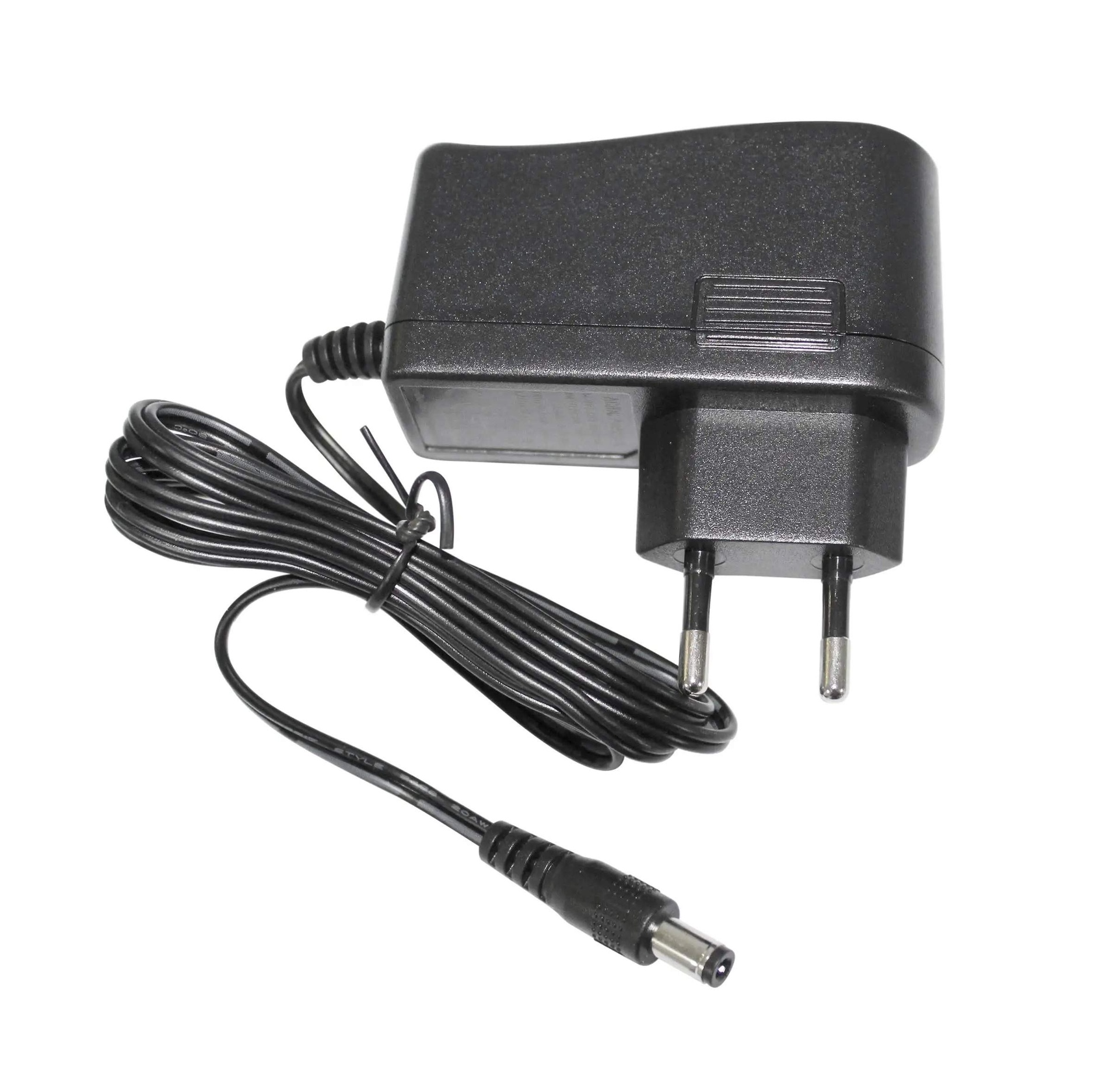

HYT-0901500E 9V 1.5A AC DC Adapter 13.5W Power Supply

The HYT-0901500E (also known as HYT-0901500EU) is a high-performance ac adapter, power adapter, ac dc adapter and ac/dc adapter, also serving as a reliable 9V 1.5A Charger, EU Plug Charger, 9Vdc 1.5A Power Adapter, and replacement charger compatible with WM1001, routers, portable devices and other electronics with 5.52.5mm DC Jack requiring 9V 1.5A DC input. This universal ac plug in adapter supports a wide input range of 100-264Vac 47-63Hz, with a maximum input current of 0.3A at full load, a peak inrush current of less than 30A during cold start at 240Vac input, and a maximum AC leakage current of 0.25mA at 240Vac input, making it compatible with global power grids for worldwide use. This alternating current adapter delivers a stable 9V DC rated output voltage, with a 1.5A rated output current, 13.5W total output power, ±1% line regulation, ±5% load regulation, and a maximum output ripple and noise of 200mV p-p at full load, tested with 20MHz bandwidth oscilloscope via parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor across the output terminals. It achieves a minimum conversion efficiency of 78.49% at both 100Vac and 240Vac input with full load, features a maximum turn on delay time of 2 seconds, maximum rise time of 40ms, minimum hold up time of 5ms at 115Vac input with full load, and a maximum voltage overshoot of 15% during power on and off. This ac of dc adapter is equipped with comprehensive auto-recover protective functions, including short circuit protection that restores normal operation automatically after fault removal, over current protection set at 120%-150% of rated current, and over voltage protection triggered at 150%-180% of rated output voltage, with full auto-recovery after fault clearance. It meets EN 60950 safety standard, passes strict 3000Vac 5mA 60s hi-pot tests between primary to secondary and primary to case, and complies with FCC Class B and EN55022 Class B EMI standards for stable operation in complex electromagnetic environments. This ac power adapter operates reliably in 0℃ to 40℃ ambient temperature at full load, with 5%-95% RH non-condensing operating humidity, and can be stored in -10℃ to 80℃ environment. It has passed strict reliability tests including IEC standard vibration test and 100cm drop test, with no permanent damage or performance degradation after all tests. With a compact housing dimension of 753960mm, a 1.5m long 2468 22AWG output cable, and a standard 5.52.510mm DC plug (compatible with 5.52.511mm connector devices), this HYT-0901500E adapter is the ideal power solution for routers, portable electronics, and all 9V 1.5A devices with 5.52.5mm DC jack.

Key Features

• Wide Global Input Range: Supports 100-264Vac 47-63Hz input, with EU plug design for compatibility with worldwide power grids.
• Stable 9V 1.5A Output: Delivers 9V DC rated output, 1.5A rated current, 13.5W total power, with ±1% line regulation and ±5% load regulation.
• Low Ripple & High Efficiency: Features max 200mV p-p output ripple/noise, and a minimum 78.49% conversion efficiency at full load.
• Comprehensive Auto-Recover Protections: Equipped with short circuit, over current (120%-150%) and over voltage (150%-180%) protection for device safety.
• International Safety & EMC Compliance: Meets EN60950 safety standard, passes 3000Vac hi-pot test, and complies with FCC/EN55022 Class B EMI standards.
• Standard Connector & Long Cable: Equipped with 1.5m 22AWG output cable and 5.52.510mm DC plug, compatible with 5.52.511mm connector devices.
• High Reliability & Durability: Passed strict 100cm drop test and IEC standard vibration test, with no permanent damage after rigorous testing.
• Wide Environmental Adaptability: Operates reliably in 0-40℃ full load temperature, 5%-95% RH non-condensing humidity, suitable for indoor and portable use.
• Compact & Portable Design: Compact 753960mm housing, lightweight and portable for daily use and travel.
• Wide Device Compatibility: Optimized as replacement 9Vdc 1.5A charger for WM1001, routers, portable devices and all electronics with 5.5*2.5mm DC jack.
