Product Description

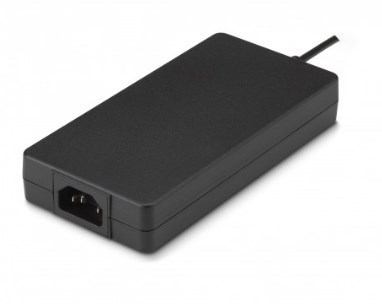

150 W Desktop AC-DC Adapter - FSP150-ABAN3 (Variant)
This variant of the FSP150-ABAN3 delivers 150 W regulated DC power for demanding electronics. Supporting universal AC input and built-in protections (OVP, OCP, OTP, SCP), it ensures dependable operation for industrial and embedded devices. Burn-in and Hi-Pot tested for reliability, it offers stable and safe integration.
Key Features
- Power: 150 W regulated DC.
- Input Range: 90–264 VAC, 47–63 Hz.
- Safety: OVP, OCP, OTP, SCP protections.
- Quality: Hi-Pot and burn-in tested.
- Applications: Embedded, IPC, replacement adapter.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1800mm |
| Connector | DIN Power 4Pol |
| Dimensions (L*W*H)(mm) | 151*75*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 7.89A |
| Output Power | 150W |
| Output Voltage | 19Vdc |
| Socket | C14 |
| Weight | 0.41kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
