FSP120-ABAN3
Article Number:
DA1195
Manufacturer Code:
9NA1208536
Manufacturer:
FSP Technology Ltd.
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

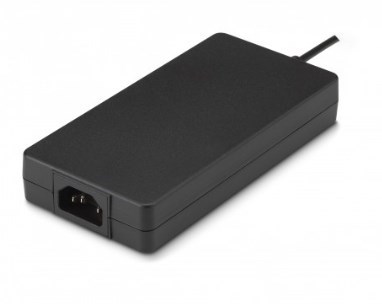

120 W Desktop Adapter – FSP120-ABAN3
The FSP120-ABAN3 is a durable 120 W desktop adapter that delivers 19 V / 6.32 A DC output with high efficiency. It supports 100–240 VAC universal input and integrates multiple protection circuits for safety and reliability. Compact and energy-efficient, it’s ideal for notebooks and professional electronics.
Key Features
- Output: 120 W (19 V / 6.32 A DC).
- Input: 100–240 VAC universal.
- Protections: OVP, OCP, SCP.
- Applications: Notebooks, professional electronics.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*11mm 90° |
| Dimensions (L*W*H)(mm) | 151*75*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 6.32A |
| Output Power | 120W |
| Output Voltage | 19Vdc |
| Socket | C14 |
| Weight | 0.38kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
