Product Description

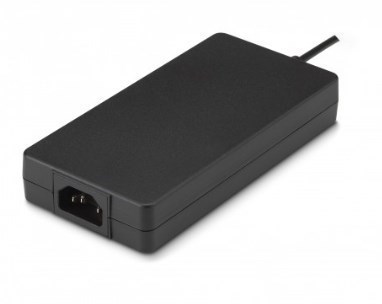

96 W Desktop AC-DC Adapter - FSP096-AHAN3
The FSP096-AHAN3 is a compact 96 W desktop adapter designed for embedded systems, IPCs, and displays. It supports 90–264 VAC universal input and provides a stable regulated DC output with protections for over-voltage, over-current, and short-circuit. Each unit is burn-in and Hi-Pot tested for reliability.
Key Features
- Output Power: 96 W regulated DC.
- Input: 90–264 VAC, 47–63 Hz.
- Protections: OVP, OCP, SCP.
- Reliability: Burn-in & Hi-Pot tested.
- Applications: IPC, displays, embedded systems.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*12mm 90° |
| Dimensions (L*W*H)(mm) | 151*75*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 8A |
| Output Power | 96W |
| Output Voltage | 12Vdc |
| Socket | C14 |
| Weight | 0.44kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
