Product Description

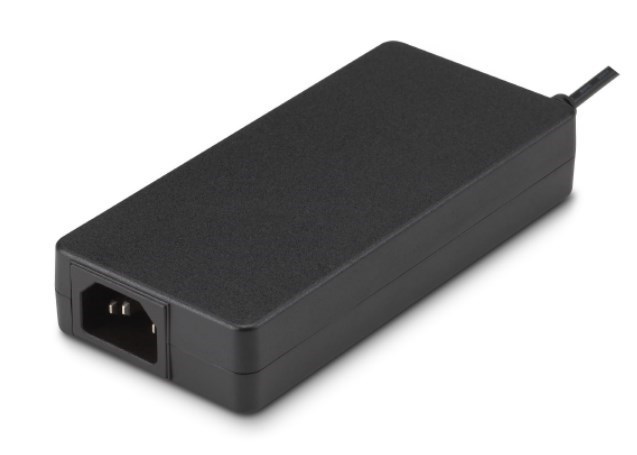

90 W Desktop AC-DC Adapter – FSP090-ABAN3
The FSP090-ABAN3 is a 90 W desktop AC-DC adapter built for notebooks, embedded systems, and industrial devices. It supports universal input (90–264 VAC) and provides stable regulated output. Integrated protections (OVP, OCP, SCP) and burn-in/Hi-Pot validation ensure long-term reliability.
Key Features
- Output Power: 90 W regulated DC.
- Input: 90–264 VAC, 47–63 Hz.
- Protections: OVP, OCP, SCP.
- Efficiency: DOE/ErP compliant design.
- Applications: Notebooks, embedded, industrial electronics.
- Compliance: CE, RoHS, WEEE certified.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*9.5mm 90° |
| Dimensions (L*W*H)(mm) | 160*58*32mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 4.74A |
| Output Power | 90W |
| Output Voltage | 19Vdc |
| Socket | C14 |
| Weight | 0.33kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
