Product Description

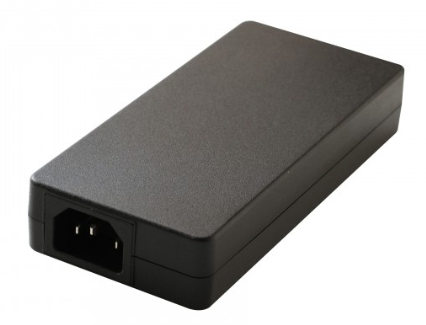

90 W Desktop AC-DC Adapter - FSP090-AAAN3
The FSP090-AAAN3 is a compact 90 W desktop adapter for notebooks, embedded controllers, and peripherals. With universal input and stable regulated DC output, it ensures efficient and safe power supply. Includes protections OVP, OCP, SCP, OTP.
Key Features
- Output: 90 W regulated DC.
- Input: 90–264 VAC universal.
- Protections: OVP, OCP, SCP, OTP.
- Certifications: CE, UL, RoHS, WEEE.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*11mm 180° |
| Dimensions (L*W*H)(mm) | 140*65*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 4.74A |
| Output Power | 90W |
| Output Voltage | 24Vdc |
| Socket | C14 |
| Weight | 0.26kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
