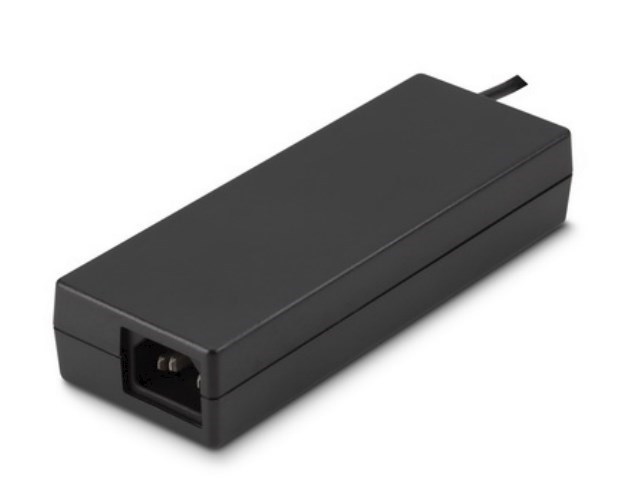

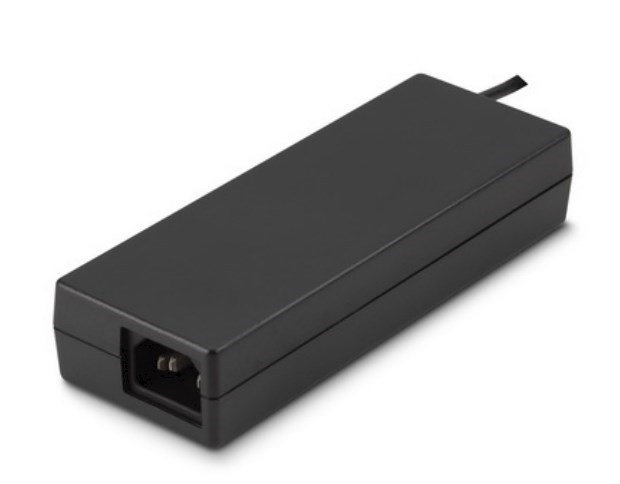

FSP075-DHAN3 75W & 84W 12V AC-DC Power Adapter for Industrial and ITE Applications

The FSP075-DHAN3 series from FSP is a high-performance 75-watt and 84-watt AC to DC power adapter designed to deliver reliable 12V DC output for IPC systems, embedded systems, printers, monitors, POS systems, AIO, NB, PC systems, and Mini-ITX systems requiring stable power. This universal AC-DC adapter operates over a wide input voltage range of 90-264VAC (47-63Hz) with an input current of ≤1.2A at full load, and features no-load power consumption as low as <0.15W. It meets stringent energy efficiency standards including DOE Level VI and CoC Version 5 Tier 2, achieving up to 89% efficiency (model-dependent: FSP075-DHAN3 provides 12V/6.25A, 75W; FSP084-DHAN3 provides 12V/7.0A, 84W). The adapter incorporates comprehensive protection mechanisms: over voltage protection (OVP), over current protection (OCP), over temperature protection (OTP), and short circuit protection. It complies with major safety standards IEC 62368-1 and IEC 60950-1, and EMC standards EN55032 Class B, EN55024 Class B, and FCC Part 15B Class B for low electromagnetic interference. Key performance specifications include power factor ≥0.9, inrush current limiting, power-on time ≤3 seconds, hold-up time ≥10ms, and MTBF of 300,000 hours at 25°C. The unit is designed for reliable operation in various environments: operating temperature 0°C to 40°C at full load, with derating capability up to 70°C (55% load), and can be used at altitudes up to 5000 meters. With a compact form factor and IEC 60320 C14 input inlet (AC14), this adapter is an ideal choice for medium-load 12V equipment requiring global voltage compatibility and high reliability.

Key Features

• Universal AC Input: 90-264VAC, 47-63Hz, suitable for worldwide use.
• High Efficiency: Meets DOE Level VI and CoC V5 Tier 2, up to 89% efficiency, reducing energy waste.
• Reliable Output: Provides stable 12VDC with 6.25A (75W) or 7.0A (84W) output options.
• Comprehensive Protection: OVP, OCP, OTP, and short circuit protection ensure safety and longevity.
• EMC Compliance: EN55032/EN55024 Class B and FCC Part 15B Class B for low noise operation.
• Rugged Design: Operating temperature range 0°C to 40°C full load, with derating up to 70°C; altitude up to 5000m.
• Long Lifespan: MTBF 300,000 hours at 25°C, ensuring high reliability.
• Compact & Standard Inlet: Features IEC 60320 C14 input (AC14) for easy integration.
