Product Description

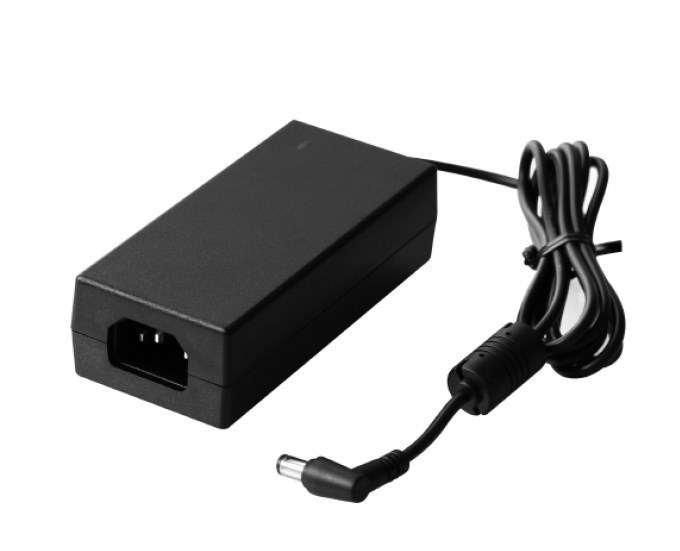

60 W Desktop AC-DC Adapter - FSP060-DAAN3
The FSP060-DAAN3 is a compact 60 W desktop AC-DC adapter designed for IPCs, embedded controllers, POS terminals, and monitors. It supports universal AC input (90–264 VAC, 47–63 Hz) and delivers stable, regulated output with low ripple and excellent EMC performance. Built-in protections (OCP/OVP/OTP/SCP), burn-in and Hi-Pot testing, and high MTBF make it a reliable choice for professional deployments.
With energy-efficient design (DOE/ErP compliant), high-altitude capability, and a standard C14 input with a right-angle barrel DC connector, the FSP060-DAAN3 integrates easily into global applications.
Key Features
- Universal Input: 90–264 VAC, 47–63 Hz for global use.
- Output Power: Up to 60 W regulated DC (model variant dependent).
- Efficiency: DOE/ErP compliant with low no-load consumption.
- Protection: OCP, OVP, OTP, SCP.
- EMC: EN 55032/24 Class B, FCC.
- Integration: C14 input and right-angle DC plug for tidy installs.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1200mm |
| Connector | 5.5*2.5*11mm 90° |
| Dimensions (L*W*H)(mm) | 110*62*31mm |
| Input Voltage | 90-264Vac |
| Output Current | 2.5A |
| Output Power | 60W |
| Output Voltage | 24Vdc |
| Socket | C14 |
| Efficiency | DoE Level VI |
