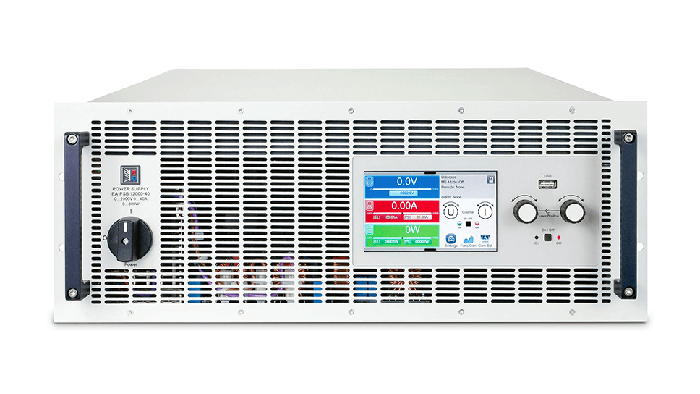

EA-PS 10360-240 4U 30kW Programmable DC Power Supply

The EA-PS 10360-240 4U is a high-performance programmable DC power supply and bench power supply designed for demanding industrial high-power testing and automotive component testing applications. As part of the versatile PS 10000 4U Series from tps, it delivers a robust 30 kW of DC power with a specific output of 360V and 240A. This benchtop power supply (PSU) offers precise control as a programmable DC voltage and current source or sink. It features multiple regulation modes including voltage regulation (CV), current limiting/constant current (CC), power regulation/constant power (CP), and internal resistance regulation (CR). Comprehensive protection is ensured with adjustable overvoltage protection (OVP 0-110% UNom), overcurrent protection (OCP 0-110% INom), overpower protection (OPP 0-110% PNom), overtemperature shutdown, and power fail alarm. The unit is built for system integration, supporting master-slave parallel operation for up to 64 units to scale power, series connection for extended voltage, and SEMI F47 compliance for ride-through during voltage sags. Remote control is facilitated via a galvanically isolated analog interface (0-5V/0-10V) and digital interfaces (built-in USB/Ethernet, optional CANopen, Profibus, Profinet, ModBus TCP, EtherCAT). On-board data logging to a USB stick records operational parameters. With a color TFT touchscreen HMI, high accuracy (voltage ≤0.05% FS, current ≤0.1% FS), and robust construction for 19” rack installation, this programmable power supply is an ideal solution for R&D, quality assurance, and production test environments.

Key Features

• High Power & Programmable: Delivers 30 kW as a programmable DC power supply (PSU) and benchtop power supply with precise voltage/current/power/resistance regulation.
• Industrial Testing Focus: Engineered for industrial high-power testing and automotive component testing, providing reliable DC voltage and current supply.
• Advanced System Scalability: Supports master-slave parallel operation for up to 64 units and series connection, enabling flexible power system configuration.
• Comprehensive Remote Control: Offers extensive remote control capabilities via analog interface and multiple digital interface options (USB, Ethernet, and plug-in modules).
• Robust Protection & Monitoring: Includes fully adjustable OVP, OCP, OPP, overtemperature shutdown, power fail alarm, and Share bus communication for system safety.
• Compliance & Data Logging: Features SEMI F47 compliance for voltage sag immunity and convenient USB stick logging for data acquisition and analysis.
