![[VP1027] Voltage proble DP700](/web/image/product.template/28055/image_1024/%5BVP1027%5D%20Voltage%20proble%20DP700?unique=832f017)
DP700 High Voltage Differential Probe: 100MHz, up to 700V. Features one-button zero, low noise, high CMRR, and dual power options.
Article Number:
VP1027
Manufacturer:
Micsig
Consultation is required. Please contact us.
Upon request
![[VP1028] Voltage proble DP1500](/web/image/product.template/28056/image_1024/%5BVP1028%5D%20Voltage%20proble%20DP1500?unique=832f017)
1500V high-voltage differential probe, 100MHz bandwidth, dual range, one-touch zero, 5MHz noise filter.
Article Number:
VP1028
Manufacturer:
Micsig
Consultation is required. Please contact us.
Upon request

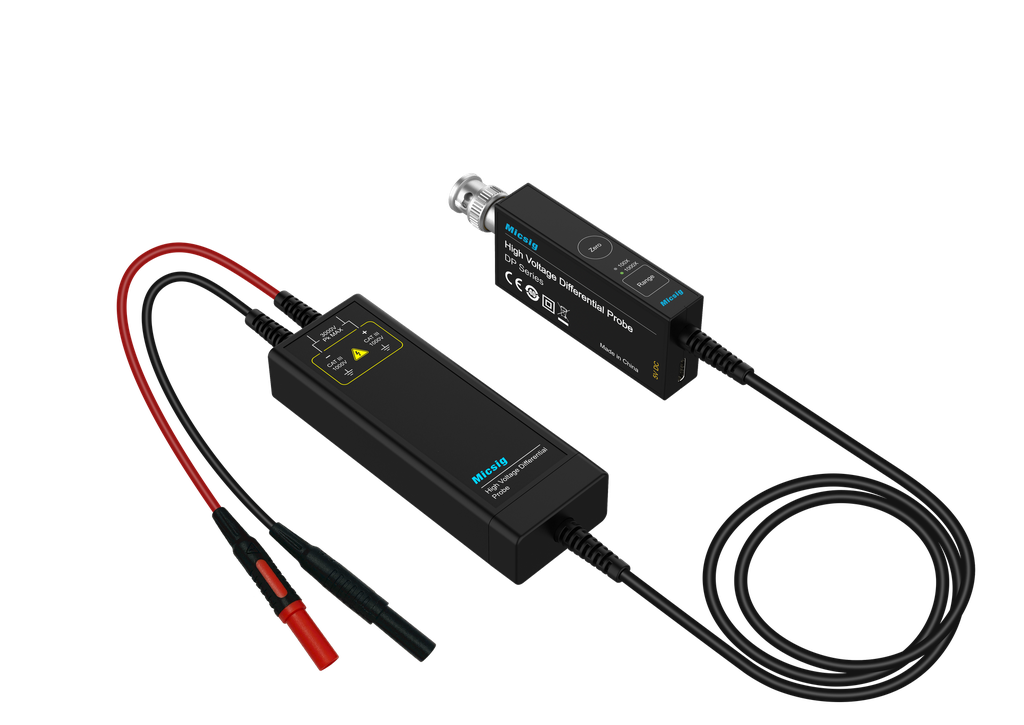

![[VP1029] Voltage proble DP3002](/web/image/product.template/28057/image_1024/%5BVP1029%5D%20Voltage%20proble%20DP3002?unique=832f017)
200MHz high-voltage differential probe, 3000V/7000Vpk, 1000X attenuation, one-touch calibration, overload alarm, 5MHz noise filter.
Article Number:
VP1029
Manufacturer:
Micsig
Consultation is required. Please contact us.
Upon request

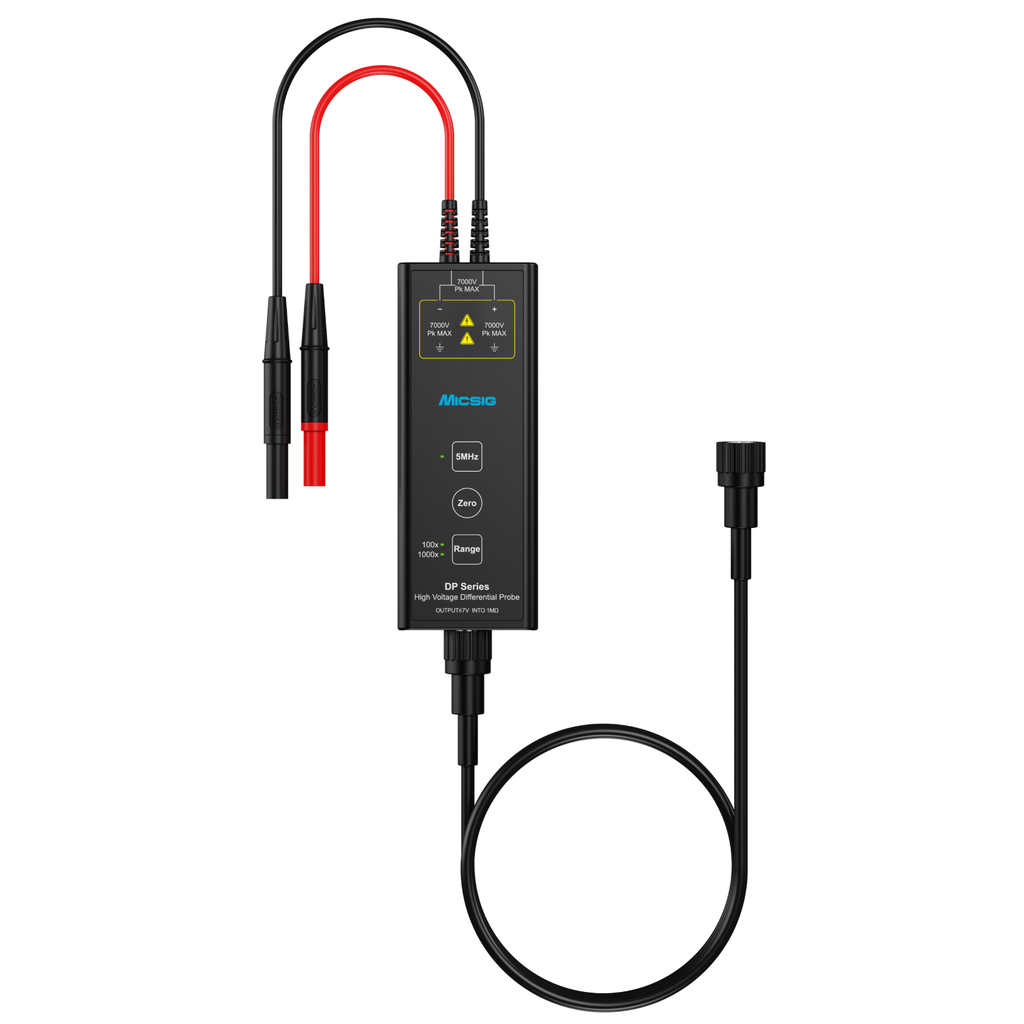

![[VP1030] Voltage proble DP7002](/web/image/product.template/33863/image_1024/%5BVP1030%5D%20Voltage%20proble%20DP7002?unique=2bb0766)
200MHz high-voltage differential probe with 7000Vpk input, one-touch calibration, dual range, overload alarm.
Article Number:
VP1030
Manufacturer:
Micsig
Consultation is required. Please contact us.
Upon request
| Description |
Price
|
Bandwidth
|
CMRR
|
Max. Input Differential Voltage (DC+AC PK)
|
Input Impedance
|
Noise(Full bandwidth)
|
|---|
|
|
DP700 High Voltage Differential Probe: 100MHz, up to 700V. Features one-button zero, low noise, high CMRR, and dual power options.
Article Number:
VP1027
Manufacturer:
Micsig
Consultation is required. Please contact us.
|
Upon request | 100MHz | ＞-26dB(100MHz), ＞-30dB(10MHz), ＞-60dB(100kHz), ＞-80dB(DC) | 700V(200X), 70V(20X) | 6MΩ/1.67pF(differential), 3MΩ/3.3pF(each input to ground) | ≤ 22mVrms(20X), ≤ 80mVrms(200X) |
|
|
1500V high-voltage differential probe, 100MHz bandwidth, dual range, one-touch zero, 5MHz noise filter.
Article Number:
VP1028
Manufacturer:
Micsig
Consultation is required. Please contact us.
|
Upon request | 100MHz | ＞-26dB(100MHz), ＞-30dB(10MHz), ＞-60dB(100kHz), ＞-80dB(DC) | 1500V(500X), 150V(50X) | 13.2MΩ/1.67pF(differential), 6.6MΩ/3.3pF(each input to ground) | ≤ 200mVrms(500X), ≤ 50mVrms(50X) |
|
|
200MHz high-voltage differential probe, 3000V/7000Vpk, 1000X attenuation, one-touch calibration, overload alarm, 5MHz noise filter.
Article Number:
VP1029
Manufacturer:
Micsig
Consultation is required. Please contact us.
|
Upon request | 200MHz | ＞-26dB(100MHz), ＞-30dB(10MHz), ＞-60dB(100kHz), ＞-80dB(DC) | 3000V(1000X), 300V(100X) | 30MΩ/0.78pF(differential), 15MΩ/1.57pF(each input to ground) | ≤ 100mVrms(100X), ≤ 500mVrms(1000X) |
|
|
200MHz high-voltage differential probe with 7000Vpk input, one-touch calibration, dual range, overload alarm.
Article Number:
VP1030
Manufacturer:
Micsig
Consultation is required. Please contact us.
|
Upon request | 200MHz | ＞-26dB(100MHz), ＞-30dB(10MHz), ＞-60dB(100kHz), ＞-80dB(DC) | 700V(100X), 7000V(1000X) | 120MΩ/0.78pF(differential), 60MΩ/1.57pF(each input to ground) | ≤ 200mVrms(100X), ≤ 600mVrms(1000X) |
