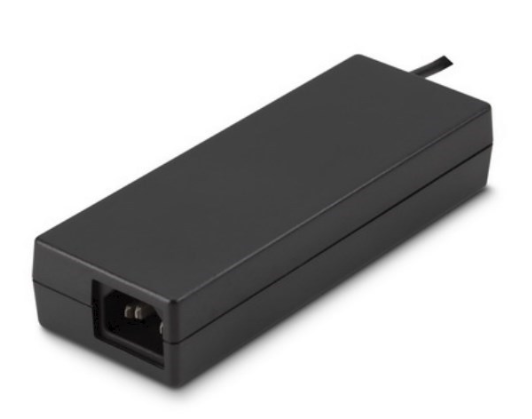

FSP084-DHAN3 84W 12V 7A AC-DC Power Adapter with DIN 4Pin Connector

The FSP084-DHAN3 is a high-performance 84-watt AC-DC power adapter designed for IPC systems, embedded systems, printers, monitors, POS systems, AIO, NB, PC systems, and Mini-ITX systems requiring a reliable 12V power supply. This 12V 7A adapter operates from a universal 90-264Vac input, delivering stable DC output with high efficiency meeting DOE Level VI and CoC Version 5 Tier 2 standards (≥88% / ≥89%). It features comprehensive protection including over current, over voltage, over temperature, and short circuit protection, ensuring safe operation in demanding environments. The unit complies with EMC standards EN55032/EN55024 Class B, FCC Part 15B Class B, and various immunity requirements. With a compact mechanical design measuring 160×58×32mm and weighing only 0.47kg, it incorporates a C14 inlet and a DIN Power 4Pol connector (1000mm cable) for easy integration. Additional specifications include ≤0.15W no-load power consumption, ≥0.9 power factor, 300,000 hours MTBF, and a wide operating temperature range (0°C to 40°C full load, derated at higher temperatures). It is safety approved to IEC 62368-1 and IEC 60950-1, making it ideal for ITE and industrial applications.

Key Features

• High Efficiency & Energy Star: Meets DOE Level VI and CoC V5 Tier 2 with efficiency ≥88% (DOE) / ≥89% (CoC), reducing energy waste and complying with global energy standards.
• Universal Input & Robust Protection: Accepts 90-264Vac input and features over current, over voltage, over temperature, and short circuit protection for reliable operation in unstable grids.
• Compact & Lightweight: Dimensions 160×58×32mm and weight 0.47kg with C14 inlet and DIN 4Pin output connector (1000mm cable), ideal for space-constrained installations.
• Compliance & EMC: Certified to IEC 62368-1/IEC 60950-1 and meets EN55032/EN55024 Class B, FCC Part 15B Class B, VCCI Class B, and various immunity standards (EN61000-4-2,3,4,5,6,8,11).
• High Reliability: 300,000 hours MTBF at 25°C and operating altitude up to 5000 meters, with power derating curve for thermal management at elevated temperatures.
• Versatile Applications: Suitable for IPC, POS, embedded systems, printers, monitors, Mini-ITX, and other 12Vdc powered devices requiring up to 84W.
