Product Description

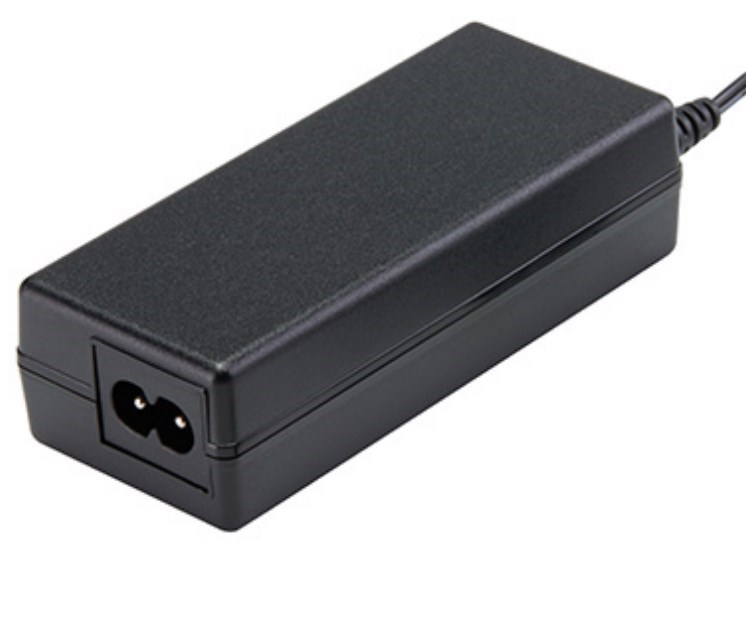

45 W Desktop AC-DC Adapter – FSP045-RBCN3
The FSP045-RBCN3 is a compact 45 W desktop AC-DC adapter designed for reliable use in notebooks, embedded systems, and ITE devices. With full-range AC input (90–264 VAC) and an IEC320-C8 connector, it delivers a regulated 19 VDC / 2.37 A output for stable performance.
Certified to global safety standards (UL / cUL / CE / GS / TUV / FCC / CCC) and compliant with DOE Level VI efficiency, the FSP045-RBCN3 ensures both safety and energy efficiency. Its small 108.3 × 46.3 × 30 mm form factor makes it an excellent choice for space-limited applications, while RoHS and WEEE compliance guarantee environmental responsibility.
Key Features
- Power Output: 45 W (19 V / 2.37 A)
- Input Range: 90–264 VAC (full range)
- Connector: IEC320-C8
- Dimensions: 108.3 × 46.3 × 30 mm
- Efficiency: DOE Level VI
- Certifications: UL, cUL, CE, GS, TUV, FCC, CCC
- Compliance: RoHS and WEEE
- Applications: Notebooks, embedded systems, peripherals, ITE
Specifications
| Parameter | Value |
|---|---|
| Connector | 3.0*1.1*8.3mm 90° |
| Dimensions (L*W*H)(mm) | 108*46*30mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 2.37A |
| Output Power | 45W |
| Output Voltage | 19Vdc |
| Socket | C8 |
| Weight | 0.18kg |
