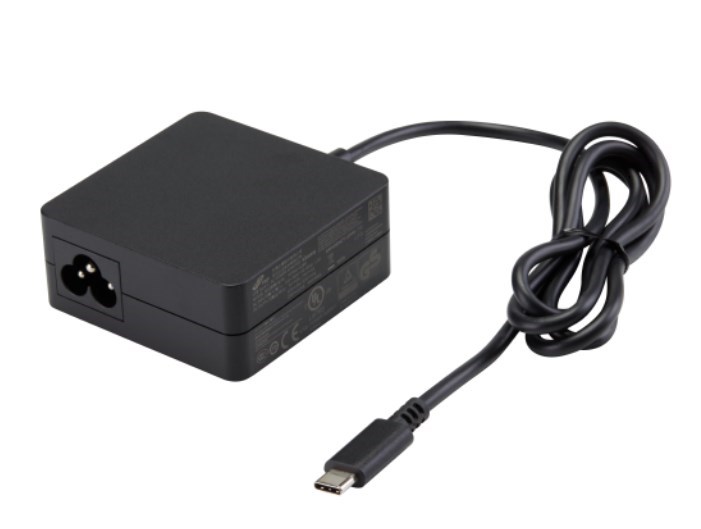

FSP045-A1BR 45W USB-C PD3.0 AC Power Adapter

The FSP045-A1BR is a compact and efficient USB-C PD3.0 AC power adapter designed to deliver up to 45W of power for a wide range of devices, including laptops, tablets, and smartphones. This universal adapter accepts an input voltage range of 90Vac to 264Vac (47-63Hz) and provides multiple output voltages via its USB-C connector: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, and 20V⎓2.25A, automatically negotiating the correct power profile with the connected device. It meets stringent global energy efficiency regulations, achieving DOE Level VI and ErP Tier 2 standards with average efficiencies up to 88.85% at 230Vac for 20V output. The adapter incorporates comprehensive protection features including over voltage, over power, short circuit, and over temperature protection, all with auto-recovery mode for enhanced safety and reliability. With its compact dimensions (66 x 66 x 28 mm), standard C6 AC inlet, and a 1-meter captive USB-C cable, the FSP045-A1BR is an ideal power solution for modern portable electronics requiring USB Power Delivery.

Key Features

• Universal AC Input: Operates from 90Vac to 264Vac, 47-63Hz, with a maximum input current of 1.2A, making it suitable for global use.
• USB-C PD3.0 Output: Provides multiple voltage levels (5V/9V/12V/15V/20V) with up to 3A (2.25A for 20V) for a total output power of 45W, automatically adapting to the device's power requirements.
• High Energy Efficiency: Complies with DOE Level VI and ErP Tier 2 standards, featuring low no-load power consumption ≤0.075W and active mode efficiency up to 88.85% (20V @ 230Vac).
• Comprehensive Protections: Includes Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP) with auto-recovery to ensure device and adapter safety.
• Reliable Performance: Features low output ripple and noise (≤250mV for 5V/9V/12V, ≤350mV for 15V/20V), fast transient response within ±15%, and a high MTBF of 100,000 hours at 40°C.
• Global Safety & EMC Compliance: Designed to meet major international safety standards (IEC 60950-1) and EMC requirements including EN55022 Class B and various immunity tests (IEC61000-4-2/3/4/5/6/8/11).
• Compact & Durable Design: Measures just 66 x 66 x 28 mm with a standard C6 AC inlet and a 1-meter 18AWG USB-C output cable. Tested for 1-meter drop survival and operates at altitudes up to 5000 meters.
