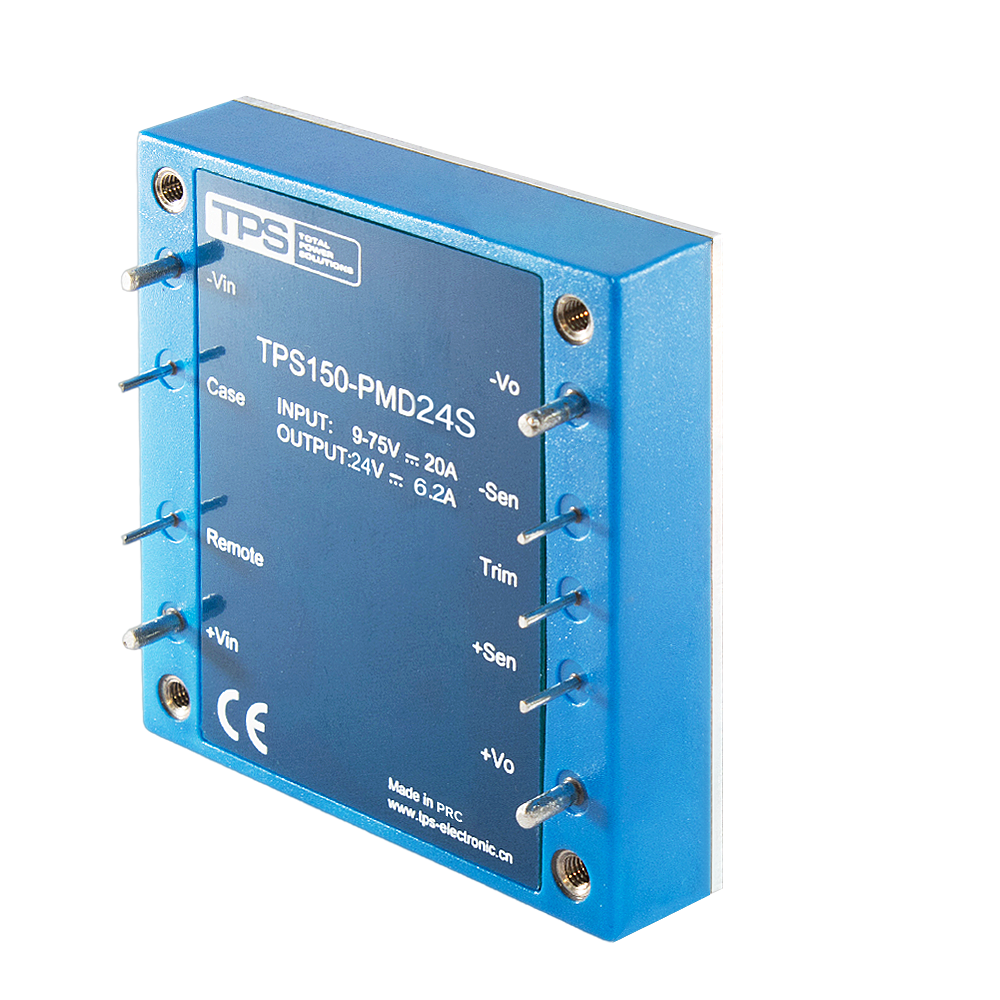

TPS150-PMD24S 150W Isolated DC-DC Power Module

The TPS150-PMD24S is the high-power 150W model in the TPS030-150W series of isolated DC-DC power modules, designed to deliver efficient and reliable power for the most demanding applications. This module accepts a wide input voltage range of 9-75 VDC and provides a stable 24V output, capable of delivering up to 6.2A of current. It achieves an impressive efficiency of up to 89%, ensuring optimal power conversion and minimal thermal loss. The module is built with robust 1500 VDC isolation between input and output, guaranteeing system safety and noise immunity. It incorporates a full suite of protection features including input under-voltage lockout, over-temperature, over-voltage, and over-current protection. For system integration flexibility, it offers positive logic remote on/off control and an external output voltage trim function with a ±10% adjustment range. Housed in a larger industry-standard package to handle the high power density, the TPS150-PMD24S is the ultimate power solution for high-performance industrial automation, telecom infrastructure, precision measuring instruments, and rugged military systems.

Key Features

• High Power Output: Delivers 150W of continuous power with a 24V output and up to 6.2A current.
• Broad Input Range: Operates from 9 to 75 VDC, suitable for a wide variety of DC source applications.
• Premium Efficiency: Achieves up to 89% efficiency, minimizing energy waste and heat generation.
• Enhanced Safety Isolation: Features 1500 VDC minimum isolation (Input/Output, Input/Case, Output/Case) for maximum safety and noise rejection.
• Comprehensive Protection Suite: Includes under-voltage lockout (power up at 9V, down at 7.5V), over-temperature shutdown, over-voltage protection (115-140% trip range), and over-current limit (105-200%).
• Flexible Control & Adjustment: Provides positive logic remote on/off control and external output voltage trim adjustment with a ±10% range.
• High-Power Package: Designed in a standard high-power package (61x57.9x12.7 mm), requiring an optional heat sink (Article: 507020101) for full power capability.
• Rugged & Dependable: Engineered for reliable operation in challenging environments with an operating case temperature range of -40°C to +100°C, making it ideal for industrial, telecom, measuring, and military applications.
