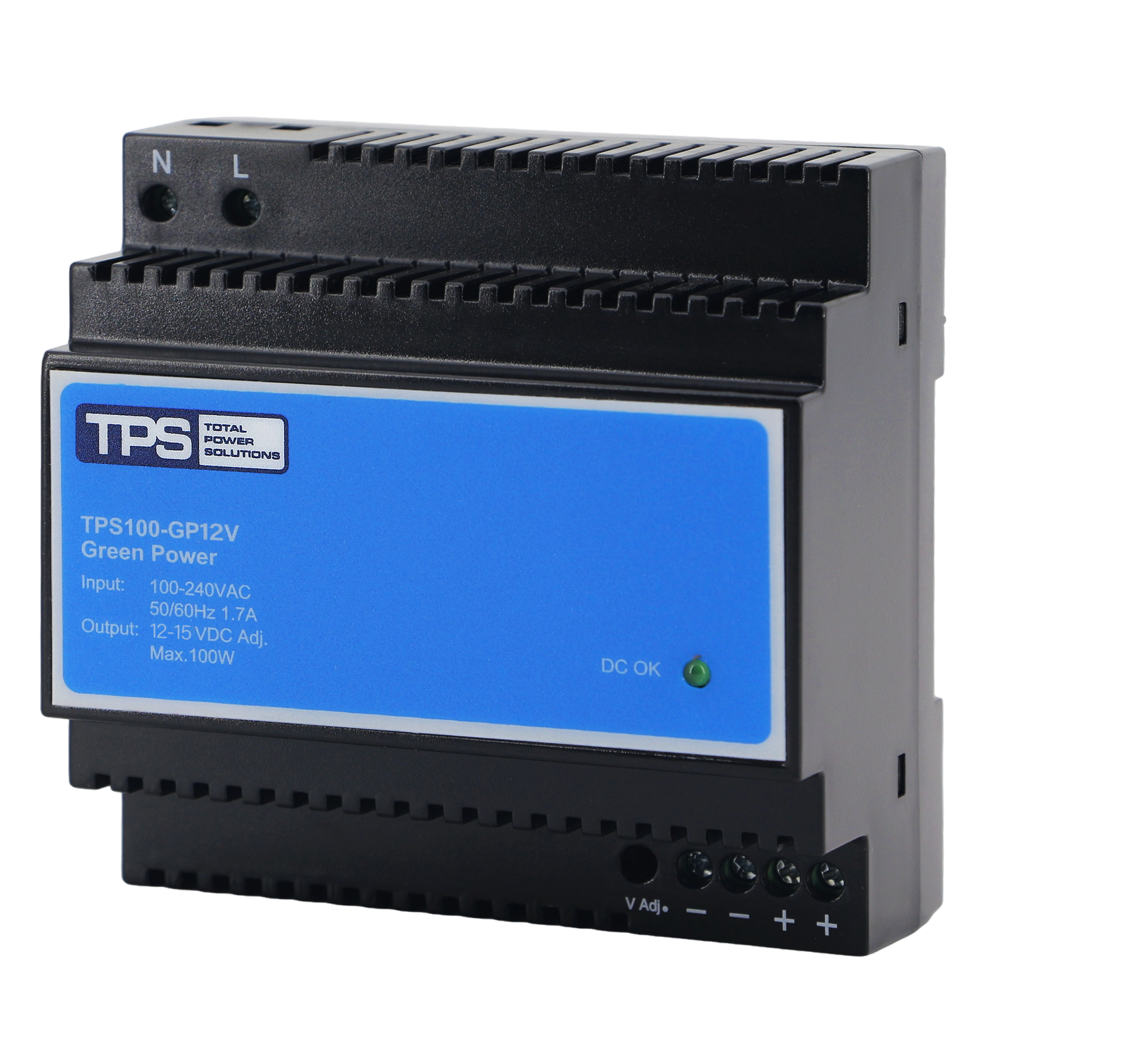

TPS100-GP12V 100W Series Din Rail Power Supply

The TPS100-GP12V is a high-performance ac to dc power supply and din rail power supply from the TPS010-100W GP Series, also serving as a reliable 12v power supply, 12v dc power supply, 12 volt power supply, 12 dc power supply, 12 v power supply, and 100W power supply for industrial and commercial power rail applications. As a professional TPS power supply, this TPS100 12V model supports a wide automatic input range of 90-264VAC 47-63Hz or 120-370VDC, delivers stable 12V DC output with a 12V to 15V adjustable range, 6A rated output current, 72W continuous output power, 110-145% peak output power capability, up to 87% conversion efficiency at full load and 220VAC input, and less than 0.3W no load power consumption. This dc power supplies unit features <1% output voltage ripple and noise, 20ms hold-up time at full load and 230VAC input, and auto-recover protections including >110% overload protection, over voltage protection (OVP), and over temperature protection (OTP). It is convection cooled, designed with IP20 double insulation, housed in a PC-110(+)UL94V-0 flame retardant case with a compact 91×90x60mm form factor and approximate 350g weight, accepts cable in AWG26-14 (0.15 - 2.5 mm2) for N, L and DC terminals, and is compatible with standard DIN RAIL TS 35/7.5 or TS 35/15 vertical mounting. This TPS100 100W series power supply is CE and ROHS compliant, meets EN61347-2-13 LED safety certification, EN61000-3-2 and EN61000-3-3 power factor standards, EN55032-A EMC requirements, IEC/CSA/EN60601-1 and 62368-1 safety standards, and comes with a 5-year warranty. It is a reliable alternative for meanwell power supply models in the same power class, and the TPS GP Series also covers diverse power needs including 24v power supply, 24vdc power supply, 24 volt power supply, power supply for 12v, power supply for 12 volt, and 5v power supply applications. Ideal for building automation control, alarm and safety systems, LED lighting, environmental control systems, industrial automation equipment, and medical equipment.

Key Features

• Wide Automatic Input Range: Supports 90-264VAC 47-63Hz or 120-370VDC input to adapt to global power grids and unstable voltage environments.
• Adjustable Stable DC Output: Provides 12V DC output with 12V to 15V adjustable range, 6A rated output current, and 72W continuous power for flexible application matching.
• High Efficiency & Ultra-Low No Load Consumption: Delivers up to 87% full load conversion efficiency and less than 0.3W no load power to minimize energy loss and operating costs.
• Comprehensive Auto-Recover Protections: Equipped with >110% overload protection, OVP, and OTP to ensure long-term reliable operation in harsh industrial environments.
• Clean & Stable Power Output: Features less than 1% output voltage ripple and noise, plus 20ms hold-up time at full load for sensitive equipment compatibility.
• Safety & Compliance Certified: CE and ROHS compliant, meets EN61347-2-13, EN61000-3-2/3, EN55032-A standards, with IP20 double insulation design.
• Convenient Din Rail Mounting: Compact design compatible with standard DIN RAIL TS 35/7.5 or TS 35/15 vertical mounting for quick installation in control cabinets.
• Long-Term Reliability: Convection cooled design, flame retardant PC-110(+)UL94V-0 case, and backed by a 5-year manufacturer warranty.
• Wide Application Compatibility: Optimized for building automation, alarm systems, LED lighting, industrial automation, environmental control, and medical equipment.
