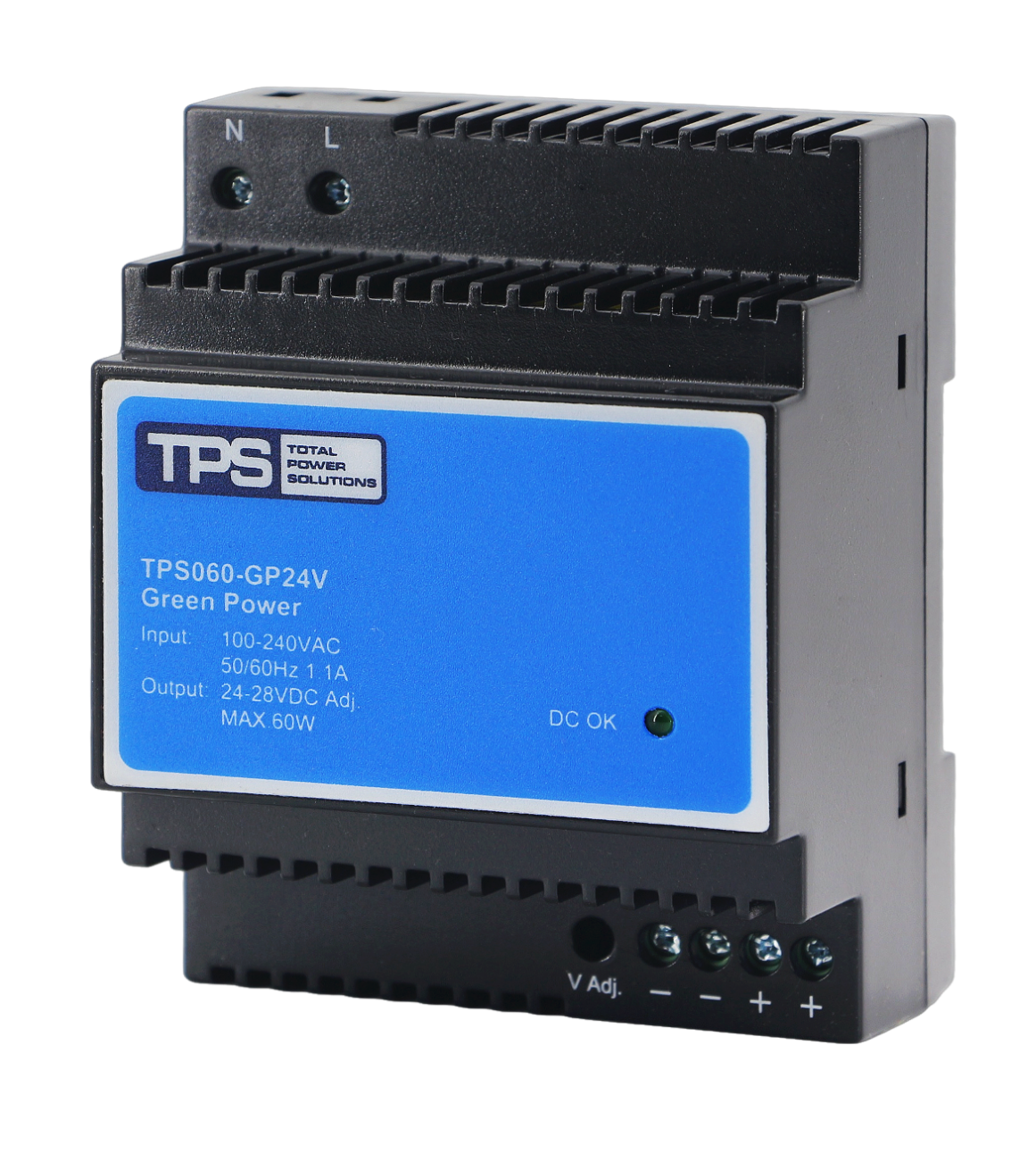

TPS060-GP24V 60W Din Rail Power Supply

The TPS060-GP24V is a high-performance ac to dc power supply and din rail power supply belonging to the TPS010-100W GP Series. It works as a stable 24v power supply, 24vdc power supply, 24 volt power supply, and 60W power supply for industrial power rail systems. This TPS power supply supports 90-264VAC 47-63Hz and 120-370VDC input, provides 24V to 28V adjustable output with 2.5A output current and 60W rated power, reaches up to 87% efficiency at 220VAC full load, and consumes less than 0.3W in no-load mode. It features ripple and noise lower than 1% of output voltage, 110-145% peak power capability, and auto-recover protection including overload, OVP, and OTP. The unit adopts convection cooling, IP20 double insulation, and a PC-110(+)UL94V-0 flame-retardant casing with dimensions 91×71×60mm and weight about 255g. It supports DIN RAIL TS 35/7.5 or TS 35/15 vertical mounting, uses AWG26-14 cables for terminals, and carries CE, ROHS, EN61347-2-13, EN61000-3-2, EN61000-3-3, EN55032-A, IEC/CSA/EN60601-1, and 62368-1 certifications. It comes with a 5-year warranty and is suitable for building automation, alarm systems, LED lighting, environmental control, industrial automation, and medical equipment. It is also a reliable alternative to meanwell power supply in the same power class and supports various power demands such as 12v power supply, 12v dc power supply, 12 volt power supply, and 5v power supply.

Key Features

• Wide Input Compatibility: Supports 90-264VAC 47-63Hz and 120-370VDC input for global grid adaptation.
• Adjustable DC Output: Delivers 24V to 28V adjustable voltage with 2.5A current and 60W rated power.
• High Efficiency: Up to 87% conversion efficiency with <0.3W ultra-low no-load power consumption.
• Stable Output: Ripple/noise <1% of output voltage for clean and reliable power supply.
• Comprehensive Protection: Auto-recover overload, OVP, and OTP for safe and durable operation.
• Industrial Design: Convection cooled, IP20 double insulation, DIN rail mountable, compact size.
• Safety Certified: CE, ROHS, EN61347-2-13, EN55032-A, and IEC/EN60601-1 compliant.
• Long Warranty: Backed by a 5-year manufacturer warranty for industrial reliability.
