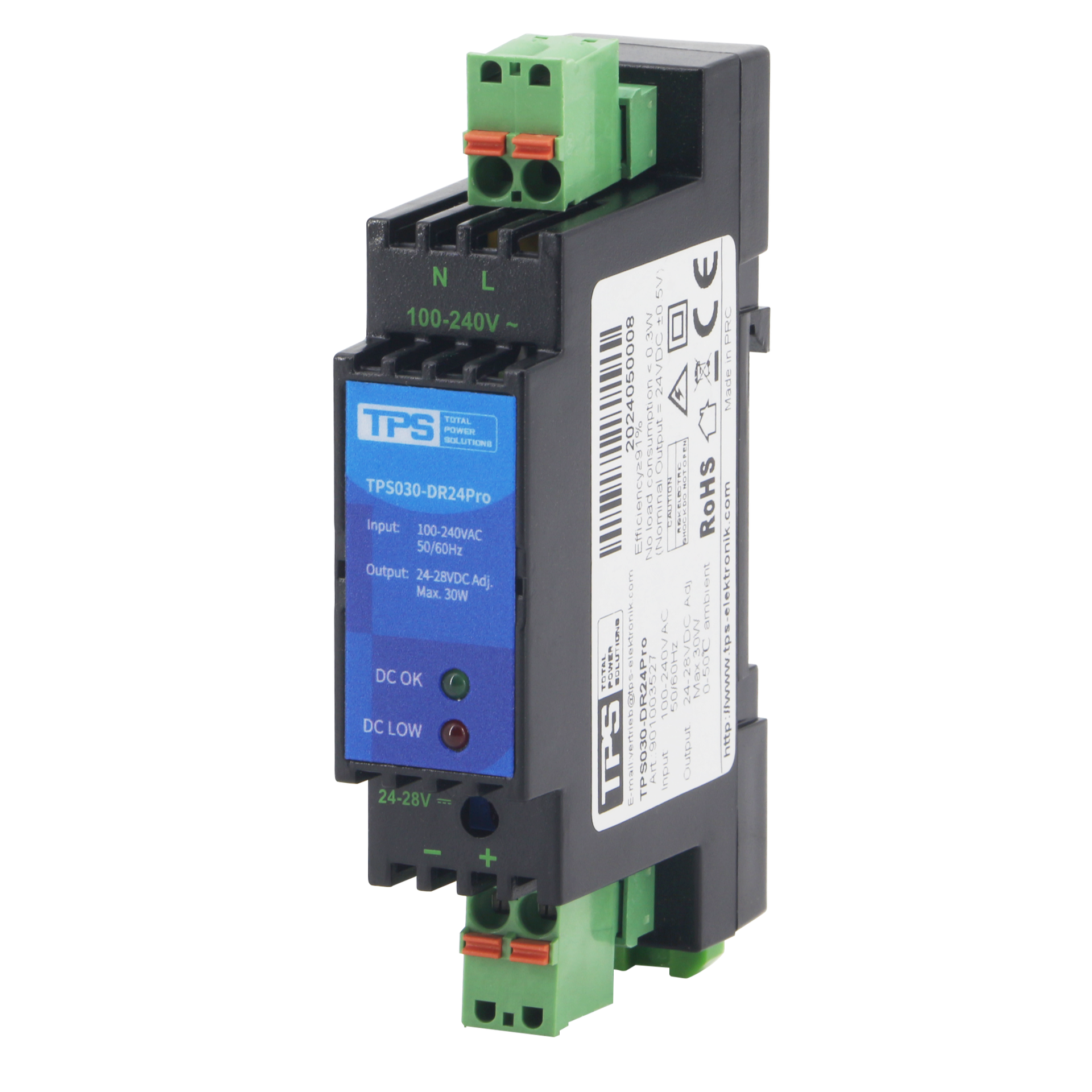

TPS030-DR24Pro 30W Din Rail Power Supply

The TPS030-DR24Pro is a high-performance ac to dc power supply and din rail power supply from the TPS030-130W Pro Series, also serving as a reliable 24v power supply, 24vdc power supply, 24 volt power supply, and 30W power supply for industrial and commercial applications. As a professional TPS power supply, this TPS030 24V model supports a wide automatic input range of 90-264VAC 47-63Hz or 120-370VDC, meets EN61000-3-2 and EN61000-3-3 power factor standards, and delivers stable 24V DC output with a 24V to 28V adjustable range, 1.25A rated output current, 30W continuous output power, 240mV max ripple/noise, and over 93% conversion efficiency at 230Vac full load with convection cooling. This dc power supplies unit features 20ms hold-up time at full load and 230VAC input, 40A max in-rush current at cold start, 0.2mA max leakage current at 265VAC 60Hz, and comprehensive auto-recover protections including overload, over voltage protection (OVP), and over temperature protection (OTP). It is designed with IP30 double insulation, housed in a PC-110(+) UL94V-0 flame retardant case with a compact 91×23×60mm form factor and approximate 114g weight, accepts cable in AWG26-14 (0.15 - 2.5 mm²) for N, L and DC terminals, and is compatible with standard DIN RAIL TS 35/7.5 or TS 35/15 vertical mounting. This TPS030 30W power supply is CE and ROHS compliant, meets EN61347-2-13 LED safety certification, EN55032-A EMC requirements, IEC/ES/CSA/EN60601-1 and 62368-1 safety standards, operates in -20°C~+50°C ambient temperature with derating from 50°C to 70°C, and delivers a demonstrated MTBF of over 350,000 hours at MIL-HDBK-217F@25°C. It comes with a 5-year manufacturer warranty, is a reliable alternative for meanwell power supply models in the same power class, and the TPS Pro Series also covers diverse power needs including 12v power supply, 12v dc power supply, 12 volt power supply, power supply for 12v, and 5v power supply applications. Ideal for building automation control, alarm and safety systems, LED lighting, environmental control systems, industrial automation equipment, and medical equipment.

Key Features

• Wide Automatic Input Range: Supports 90-264VAC 47-63Hz or 120-370VDC input to adapt to global power grids and unstable voltage environments.
• Adjustable Stable DC Output: Provides 24V DC output with 24V to 28V adjustable range, 1.25A rated current, 30W power, and 240mV max ripple/noise.
• Ultra-High Efficiency: Delivers over 93% conversion efficiency at 230Vac full load with convection cooling to minimize energy loss.
• Robust Safety Design: IP30 double insulation, 3KVac input-output withstand voltage, and comprehensive auto-recover protections for reliable operation.
• Global Compliance & Certifications: CE and ROHS compliant, meets EN61347-2-13, EN55032-A, IEC/EN60601-1, and 62368-1 standards.
• Compact Din Rail Mounting: Ultra-compact 91×23×60mm form factor, compatible with standard DIN rail mounting for quick installation in control cabinets.
• Wide Operating Temperature: Operates in -20°C~+50°C ambient temperature with derating from 50°C to 70°C for harsh industrial environments.
• Long-Term Reliability: >350,000 hours demonstrated MTBF, flame retardant UL94V-0 case, and backed by a 5-year manufacturer warranty.
• Broad Application Compatibility: Optimized for building automation, alarm systems, LED lighting, industrial automation, and medical equipment.
