Product Description

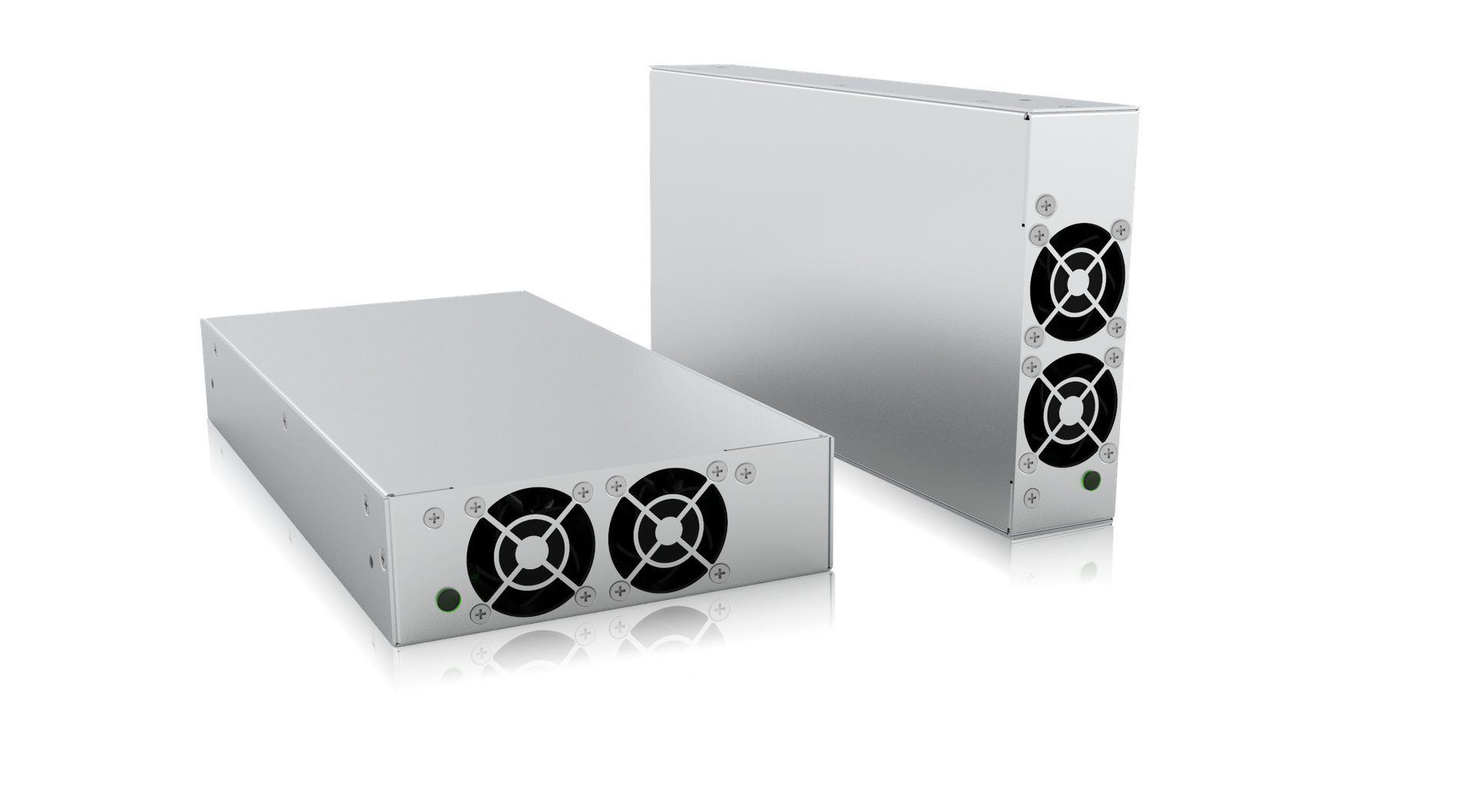

TPS-BM142650SIR 2650W Bidirectional AC-DC/DC-AC Power Module
The TPS-BM142650SIR is a high-performance power converter and ac to dc converter, serving as TPS-BM142650SIR Bidirectional Module and TPS-BM142650SIR Power Module for industrial bidirectional energy flow. As TPS-BM142650SIR 2650W, it uses soft switching technology to deliver 91.5% AC-DC Efficiency Module and 86% DC-AC Efficiency Module performance, with <10ms Mode Switching Module speed, PF>0.99 Power Module and THDi<5% Power Module (tested at 220VAC full load, THDu ≤2%). It features TPS-BM142650SIR 176-264VAC Input (50/60±5Hz) and ≤17A AC Input Module, TPS-BM142650SIR 14VDC Output (189A DC Output Module) and TPS-BM142650SIR 15VDC Input (123.7A DC Input Module) with 0.5% Voltage Accuracy Module, plus Rear-Front Airflow Module and 8 Units Parallel Module (<5% current imbalance). Compliant with EN55032 and UL/CE/TUV, it operates 10-45℃ (full load) to 55-60℃ (80% derated), ideal for cell formation testing, power bidirectional testing and energy recyclable aging.
Key Features
- Multifunctional Bidirectional Design: Integrates power converter, ac to dc converter, TPS-BM142650SIR Bidirectional Module and TPS-BM142650SIR Power Module for flexible AC-DC/DC-AC conversion.
- High Efficiency & Fast Response: Delivers 91.5% AC-DC/86% DC-AC efficiency, <10ms mode switching, PF>0.99 and THDi<5% for low energy loss and stable grid compatibility.
- Precise DC I/O Performance: Offers TPS-BM142650SIR 14VDC Output (189A), TPS-BM142650SIR 15VDC Input (123.7A) and 0.5% voltage accuracy for precise power delivery.
- Wide Adaptability & Scalability: Supports TPS-BM142650SIR 176-264VAC Input, Rear-Front Airflow Module and 8 units parallel to fit harsh environments and scalable demands.
- Compliant & Durable: Meets EN55032 EMC standards, eligible for UL/CE/TUV, with over-temperature shutdown and fault protection for reliability.
Specifications
| Parameter | Value |
|---|---|
| Air Flow | From rear to front |
| Dimensions (L*W*H)(mm) | 141*44*285 |
| Efficiency | 86%(DC to AC), 91.5%(AC to DC) |
| Input Current | ≤17A(AC to DC), 123.7A(DC to AC) |
| Input Power | 1855W(DC to AC) |
| Input Voltage | 15Vdc, 176-264Vac |
| Output Current | 189A(AC to DC) |
| Output Power | 2650W(AC to DC) |
| Output Voltage | 14Vdc, 176-264Vac |
| Output Voltage Accuracy | 0.5%(AC to DC) |
| Rated Input Voltage | 220Vac, 230Vac, 240Vac |
| Weight | ≤2.4kg |
