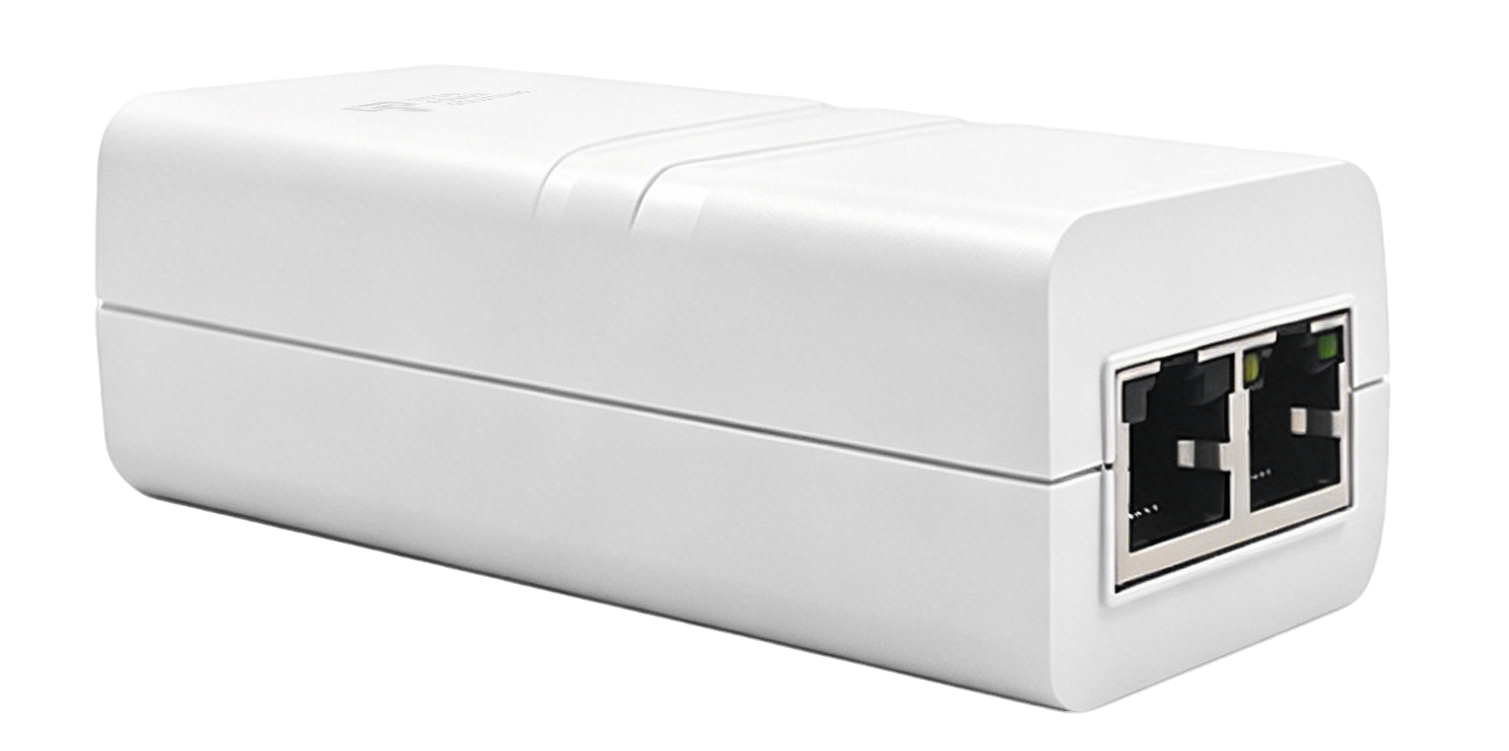

TPS-EN30GT 30W Active PoE Midspan Injector | IEEE802.3af/at Gigabit PoE Injector

The TPS-EN30GT is an indoor rated active PoE midspan injector specially designed for complex backhaul and networking applications. As a high-performance Gigabit PoE injector, PoE power injector and Ethernet power injector, it delivers 52Vdc, 0.58A (30W) remote PD power supply over 2 pairs output, fully complying with IEEE802.3af and IEEE802.3at PoE standards. This PoE midspan supports both 10/100 Base-T and Gigabit Ethernet with 1000Mbps data speed, functioning as a reliable data and power injector for wireless AP PoE injector, Wifi router PoE injector, network camera PoE injector, IP phone PoE injector, and microwave radio PoE injector applications. Housed in an IP40 fire retardant plastic case, it features a wide input voltage range of 100-240 VAC at 50 Hz or 60 Hz, making it a versatile wide voltage PoE solution for global indoor deployment. Equipped with an internal detection chip, this PoE detection injector performs PD detection and classification before powering on, providing standard PD protection and active PoE protection by only supplying power to standard-compliant PDs. It supports long distance PoE transmission up to 100 meters over Cat5e/Cat6 cables, delivering gigabit speed PoE for stable backhaul PoE and reliable remote power performance. With compact dimensions of 107.3mm X 56mm X 34.5mm and a weight of 0.155kg, this compact high performance PoE injector operates reliably in 0°C to 40°C ambient temperature with 20% to 80% non-condensing operating humidity, and supports an operating altitude of up to 2000 meters. It is WEEE compliant and meets international EMC and mechanical standards including IEC61000-4-3 (RS) 10V/m (80MHz~2GHz) and IEC60068-2-27 (Impact), ensuring safe PoE power and durable performance for indoor networking and backhaul scenarios.

Key Features

• IEEE802.3af/at Standard Output: Delivers 52Vdc / 0.58A / 30W PoE power, with built-in PD detection and classification for standard PD protection.
• Gigabit Data Transmission: Supports 10/100/1000Mbps data rate, compatible with IEEE802.3ab 1000Base-T Gigabit Ethernet for simultaneous data and power delivery.
• 100 Meters Long-Distance PoE: Achieves stable long distance PoE transmission up to 100 meters over Cat5e/Cat6 cables for distributed networking.
• Wide Input Voltage Design: Accepts 100-240VAC 50/60Hz wide input, IP40 fire retardant enclosure for safe indoor deployment.
• Reliable Environmental Adaptability: Operates at 0°C to 40°C with 20% to 80% non-condensing humidity, supports up to 2000 meters operating altitude.
• Certified & Durable Build: WEEE compliant, meets IEC61000-4-3 10V/m EMC and IEC60068-2-27 impact standards for long-term stable operation.
