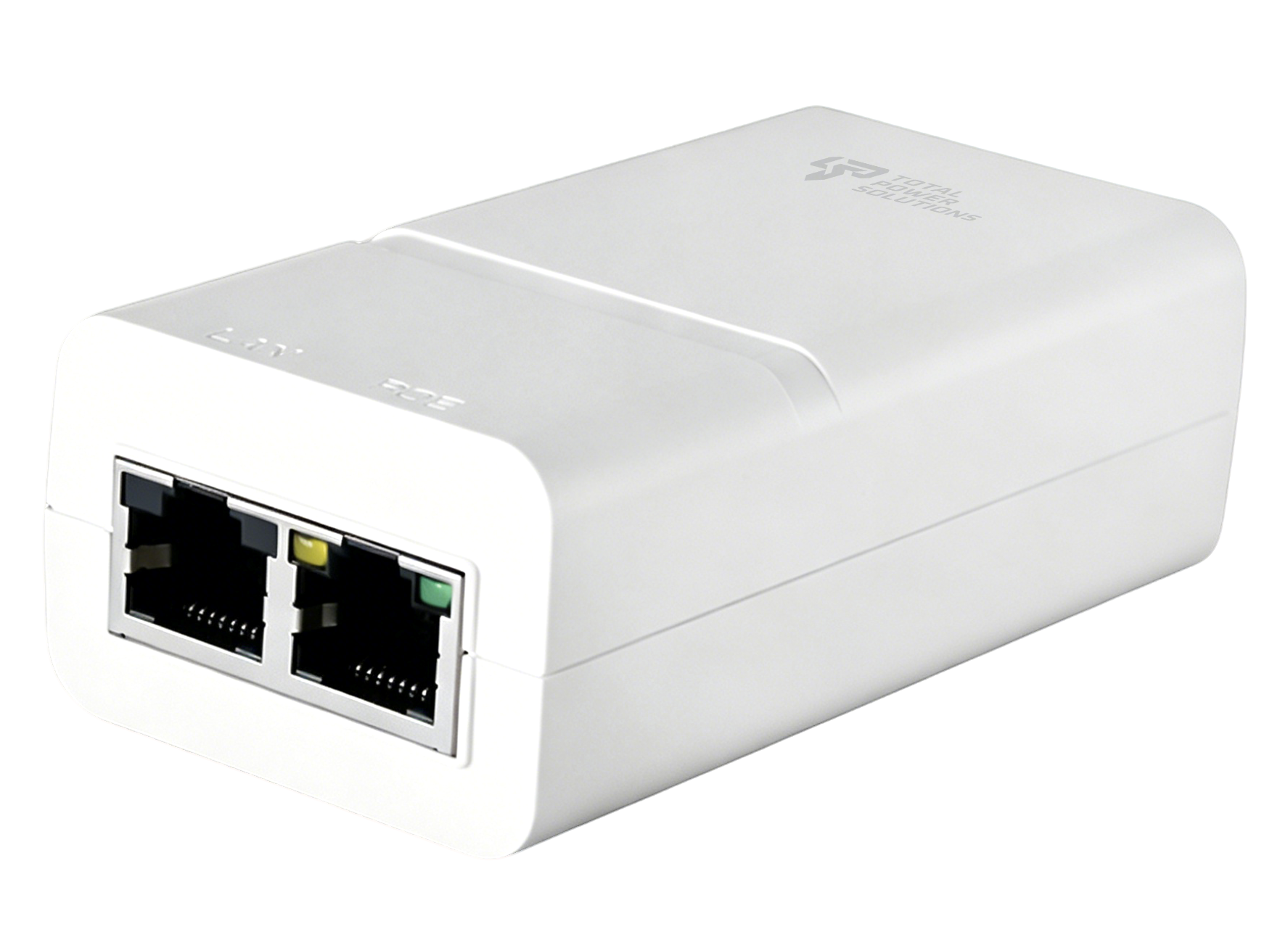

TPS-EN15GF 15.4W Active PoE Midspan Injector | IEEE802.3af Gigabit PoE Injector

The TPS-EN15GF is an indoor rated active PoE midspan injector specially designed for complex backhaul and networking applications. As a TPS PoE injector, TPS midspan injector and TPS active PoE injector, it delivers 48Vdc, 0.32A (15.4W) remote PD power supply over 2 pairs output, fully complying with the IEEE802.3af PoE standard. This PoE midspan injector supports both 10/100 Base-T and Gigabit Ethernet with 1000Mbps data speed, enabling simultaneous data and power transmission, and acts as reliable wireless AP power supply, Wifi router power supply, network camera power supply, IP phone power supply, and microwave radio power supply for various PoE terminals. Housed in an IP40 fire retardant plastic case and weighing only 105g, it features a wide input voltage range of 100-240 VAC at 50Hz or 60Hz, making it a reliable wide input voltage PoE injector for global indoor deployment. Built with an internal detection chip, it performs PD detection and classification before powering on, providing non-standard PD protection and only supplying power to standard-compliant PDs. It supports long distance PoE transmission up to 100 meters over Cat5e/Cat6 cables, paired with high speed data transmission for stable backhaul and networking performance. The TPS-EN15GF operates in 0°C to 40°C ambient temperature with 20% to 80% non-condensing operating humidity, supports 10% to 90% non-condensing storage humidity, and offers 2KV line-earth surge protection (1.2/50us 8/20us). It is RoHS compliant and meets multiple international EMC and safety standards including FCC CFR47 Part 15, EN55032, EN55035, IEC61000-4-6, and IEC60068-2-32, delivering consistent and safe performance as an indoor PoE injector.

Key Features

• IEEE802.3af Standard PoE Output: Provides 48Vdc / 0.32A / 15.4W power for remote PDs, with built-in detection chip for PD classification and non-standard PD protection.
• Gigabit High-Speed Data: Supports 10/100/1000Mbps data transmission, compatible with 10Base-T Ethernet and Gigabit Ethernet for simultaneous data and power delivery.
• Long-Distance Transmission: Achieves stable 100 meters PoE transmission over Cat5e/Cat6 cables, ideal for distributed indoor networking and backhaul scenarios.
• Wide Voltage Adaptability: Accepts 100-240VAC 50/60Hz wide input voltage, suitable for global indoor power environments.
• Compact Indoor Design: IP40 fire retardant plastic enclosure, 105g lightweight body, operates reliably in 0°C to 40°C with 20% to 80% non-condensing humidity.
• Full Compliance & Protection: RoHS compliant, meets FCC CFR47 Part 15 / EN55032 / EN55035 / IEC standards, with 2KV line-earth surge protection.
