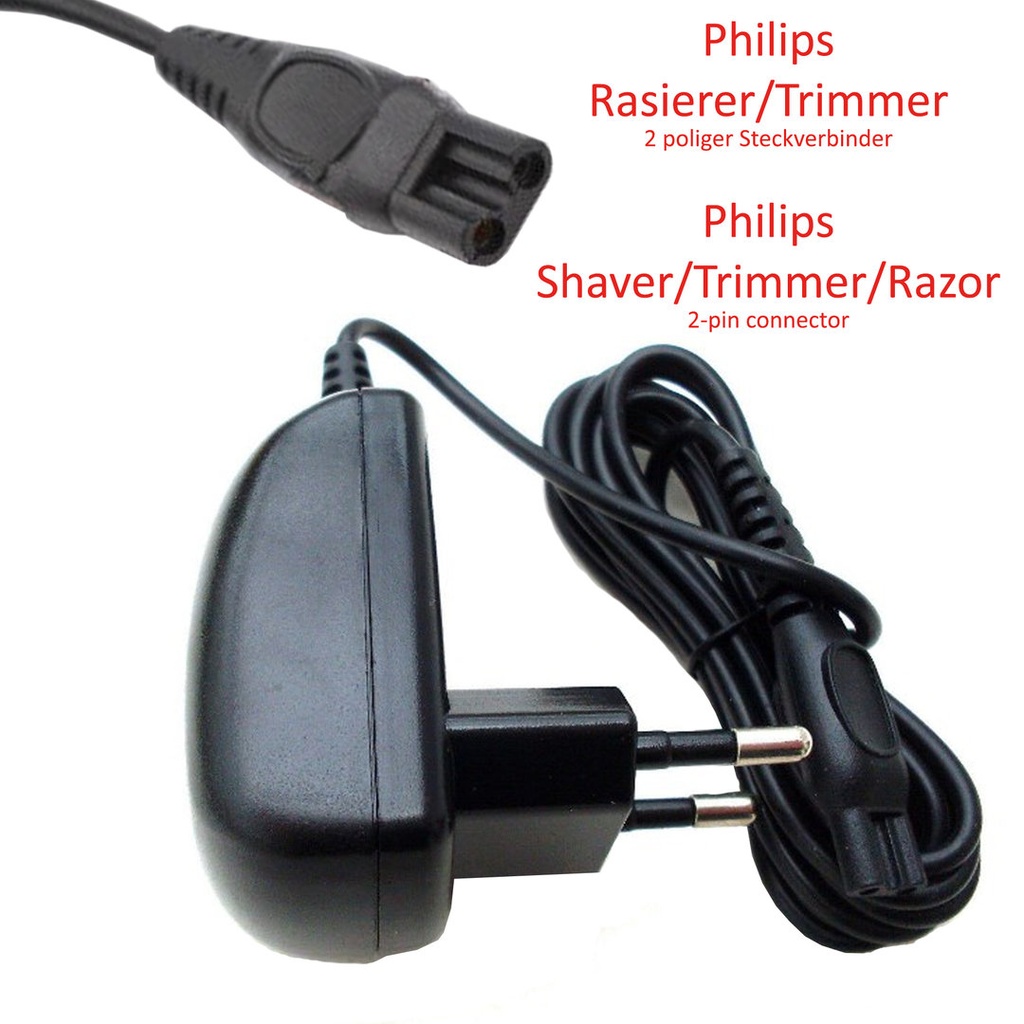

HYT-1500360E 15V 360mA Charger AC DC Adapter

The HYT-1500360E is a high-performance ac adapter, power adapter, ac dc adapter and ac/dc adapter, also serving as a professional Philips Shaver Charger 15V 360mA, Philips Trimmer Power Supply, Replacement Charger for Philips Razor, 15V DC Adapter for Philips Shaver, and EU Plug Charger compatible with WM1000, 005-10213-001 and for Philips Trimmer models. This universal ac plug in adapter supports a wide nominal input range of AC 100V-240V 50/60Hz, with a permissible input range of AC 90V-254V 47-63Hz to fit global power grids, features a maximum input current of less than 0.4A at full load, and a maximum inrush current of less than 50A within 10ms during cold start. This alternating current adapter delivers a nominal CV 15V DC output, with a nominal open circuit voltage of 14.25 - 15.75 VDC, an operating voltage range of 5 - 15V, a rated output current of 360mA, and an adjustable output current range of 320mA-400mA in constant current mode at 14V. It achieves a working efficiency of ≥70% at 14VDC CV mode with 320-400mAdc output, features an output ripple of ≤120 mVp-p at full load, and a standby power consumption of 0.5W or less under no load condition with AC 100V-240V input. This ac of dc adapter is equipped with comprehensive protective functions, including short-circuit protection that guarantees no fire or damage to the product when the output terminal is short-circuited, and overcurrent protection that rapidly reduces the output voltage when the output current exceeds the rated value. It complies with EN60950 safety standard, with an insulation resistance of at least 7 MΩ between input and output terminals after applying 500V DC for 1 minute, passes a 3.0kV 50Hz high voltage test for 1 minute with leakage current less than 5mA and no breakdown, features a V-1 class flame retardant shell, and has an AC leakage current of less than 0.25mA, with a demonstrated MTBF of over 5000 hours. This power adapter operates in 0 - 45 ℃ working temperature and 5% - 93% working humidity, with a storage temperature range of -40 °C - + 70 °C and storage humidity of 5% - 93%. It has passed strict reliability tests, including 10-55 Hz 0.35 mm vibration test for 5 cycles in X, Y and Z axes, 1.0 m free drop test for 6 times on 6 sides, and 1000 times repeated power supply switching test, with intact appearance, normal electrical performance and no damage after all tests. It meets the electromagnetic compatibility requirements of GB9254-2008 Class B and GB17625.1-2003, and can withstand ± 4 kV contact discharge for ESD test. With a black smooth shell without scratches, burrs or mechanical damage, reliable plug connection, this HYT-1500360E charger is the ideal replacement power supply for Philips shavers, trimmers and other compatible devices requiring 15V 360mA DC input.

Key Features

• Wide Global Input Range: Supports AC 90V-254V 47-63Hz input, perfect for worldwide use with EU plug design.
• Precise 15V Stable Output: Delivers 15V DC rated output with 360mA rated current, ≤120mVp-p low ripple for stable power delivery.
• Philips Device Compatibility: Optimized as replacement charger for Philips shavers, trimmers, compatible with WM1000, 005-10213-001 models.
• High Efficiency & Low Power Consumption: Achieves ≥70% working efficiency, with ≤0.5W standby power to reduce energy waste.
• Comprehensive Safety Protections: Equipped with short-circuit protection and overcurrent protection to prevent fire and device damage.
• International Safety Compliance: Meets EN60950 standard, with V-1 flame retardant shell, 7MΩ minimum insulation resistance and 3kV withstand voltage.
• High Reliability & Durability: Passed strict vibration, drop and cycle switching tests, with >5000 hours demonstrated MTBF for long service life.
• EMC & ESD Compliant: Meets Class B EMC standards and withstands ±4kV contact ESD discharge for stable operation in complex environments.
• Wide Operating Temperature: Operates reliably in 0-45℃ working temperature, suitable for daily household and travel use.
