FSP180-AJBU3
Article Number:
DA1269
Manufacturer Code:
9NA1805103
Manufacturer:
FSP Technology Ltd.
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

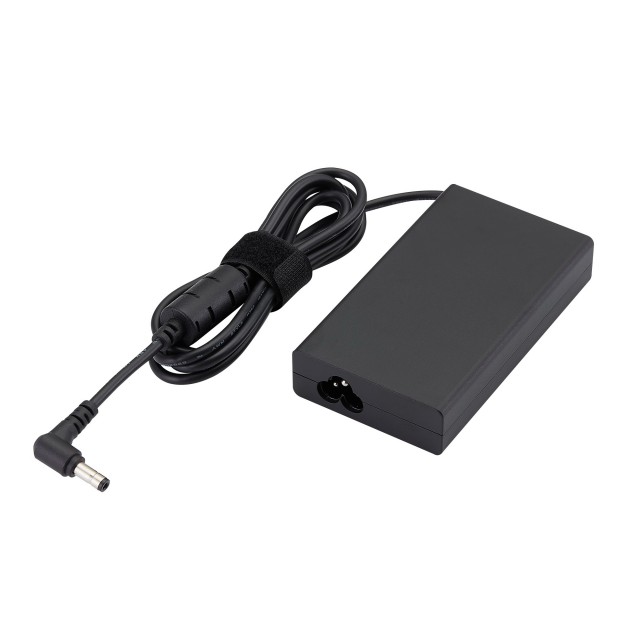

180 W Desktop AC-DC Adapter - FSP180-AJBU3
The FSP180-AJBU3 is a compact and powerful 180 W desktop AC-DC adapter designed for industrial and IT applications. It features a universal input (90–264 VAC) and delivers a regulated 24 V / 7.5 A DC output with low ripple. Built-in protections include OVP, OCP, OTP, and SCP, while production tests (burn-in and Hi-Pot) ensure high reliability.
Key Features
- Output Power: 180 W (24 V / 7.5 A DC).
- Input: 90–264 VAC, 47–63 Hz.
- Protections: OVP, OCP, OTP, SCP.
- Reliability: Burn-in & Hi-Pot tested.
- Applications: Industrial PCs, displays, networking devices.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | 5.5*2.5*11mm 90° |
| Dimensions (L*W*H)(mm) | 113.5*64.5*23mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 9.23A |
| Output Power | 180W |
| Output Voltage | 19.5Vdc |
| Socket | C6 |
| Weight | 0.31kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
