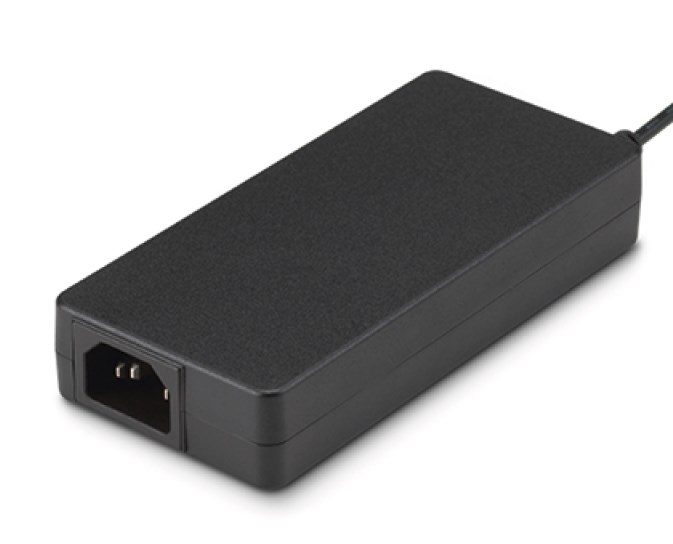

FSP180-AAAN3 180W 24V 7.5A AC-DC Power Adapter

The FSP180-AAAN3 is a high-performance 180W AC-DC power adapter from FSP's 180W series, engineered to deliver stable 24V DC output at 7.5A for demanding industrial applications such as IPC systems, embedded systems, printers, monitors, POS systems, and PoE equipment. This universal AC-DC adapter accepts a wide input voltage range of 90‑264 VAC (47‑63Hz) and incorporates active Power Factor Correction (PFC) with a power factor ≥0.9 at full load. It meets stringent energy efficiency standards including DoE Level VI (≥88% average efficiency) and CoC V5 Tier 2 (≥89% average efficiency), complying with EISA 2007 requirements. The unit is certified to IEC 62368‑1 and CB 60950‑1 safety standards, ensuring safe operation in ITE environments. Comprehensive protection features include over-voltage (OVP), over-current (OCP), over-temperature (OTP), and short-circuit protection, guaranteeing robust and reliable power delivery. Its compact mechanical design (151×75×25mm) and low profile facilitate easy integration into space-constrained systems. The adapter operates at full load from 0°C to 40°C, with derated performance up to 70°C (70% load at 60°C, 55% load at 70°C), and boasts a high MTBF of 300,000 hours at 25°C (SR332). It also meets rigorous EMC standards: EN55032 Class B (conducted and radiated), FCC Part 15 Class B, and various immunity requirements per EN61000‑4‑2/3/4/5/6/8/11, ensuring electromagnetic compatibility in industrial environments. Available with C14 or C6 AC inlet options, the FSP180-AAAN3 is a versatile and efficient power solution for 24V equipment requiring up to 180W.

Key Features

• 180W Continuous Output: Delivers 24V DC at 7.5A for high-power industrial equipment.
• Wide Universal Input: Accepts 90‑264 VAC (47‑63Hz) with active PFC (PF≥0.9) for global use.
• High Efficiency: Meets DoE Level VI (≥88%) and CoC V5 Tier 2 (≥89%) efficiency standards, reducing energy waste.
• Comprehensive Protection: Built-in OVP, OCP, OTP, and short-circuit protection for safe and reliable operation.
• Compact & Low Profile: Measures 151×75×25mm, ideal for space-constrained installations.
• Industrial Grade: Designed for IPC, embedded systems, PoE, and more with 0‑40°C full load operation (derated to 70°C).
• EMC Compliance: Meets EN55032 Class B, FCC Part 15 Class B, and multiple immunity standards for industrial environments.
• High Reliability: 300,000 hours MTBF at 25°C (SR332) and 5000m altitude capability.
• Safety Certified: Approved to IEC 62368‑1 and CB 60950‑1, with withstand voltage 4242Vdc.
• Flexible AC Inlet: Available with C14 or C6 connector options to suit different applications.
