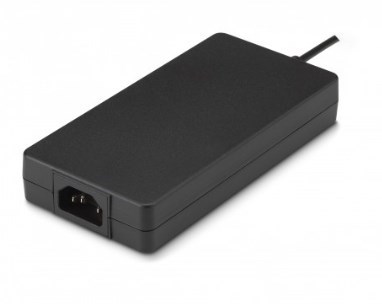

FSP150-AHAN3 150W 12V AC-DC Power Adapter

The FSP150-AHAN3 is a 150W AC-DC power adapter from FSP, designed to deliver 12V DC at 12.5A for high-wattage applications such as IPC systems, embedded systems, printers, monitors, POS systems, and PoE equipment. This 12V 150W power supply accepts a universal input voltage range of 90‑264 VAC (47‑63 Hz) with a maximum input current of ≤2A at full load. It meets international safety standards including IEC 62368‑1 and CB 60950‑1, and complies with energy efficiency regulations DOE Level VI and CoC Version 5 Tier 2, achieving up to ≥89% efficiency. The unit features comprehensive protection: over voltage (OVP), over current (OCP), short circuit (SCP), over temperature (OTP), and brown‑out protection, along with an active PFC circuit that maintains power factor ≥0.9. Key electrical characteristics include no‑load power consumption ≤0.15W, touch current ≤0.25mA, hold‑up time ≥10ms, and an MTBF of 300,000 hours at 25°C (SR332). The adapter operates from 0°C to 40°C with full load, derating linearly to 55% load at 70°C, and is certified for EMC compliance (CISPR32 EN55032 Class B, EN55024, FCC Part 15B). With a standard C14 AC inlet, the FSP150‑AHAN3 is a reliable 12V DC power supply for industrial and commercial applications requiring high efficiency and robust protection.

Key Features

• High-Efficiency 12V DC Output: Delivers 12V DC at 12.5A (150W) with ≥88% (DOE Level VI) and ≥89% (CoC V5 Tier 2) efficiency, minimizing energy waste.
• Wide Input Voltage Range: Operates from 90‑264 VAC (47‑63 Hz) with ≤2A input current, suitable for global use.
• Comprehensive Protections: Includes over voltage (OVP), over current (OCP), short circuit (SCP), over temperature (OTP), and brown‑out protection for enhanced system safety.
• High Reliability & Long Life: MTBF of 300,000 hours at 25°C per SR332 ensures long‑term dependable operation in demanding environments.
• PFC & EMC Compliance: Built‑in PFC circuit achieves PF ≥0.9; meets CISPR32 EN55032 Class B, EN55024, FCC Part 15B, and multiple EN61000 standards.
• Flexible Thermal Performance: Full load at 0‑40°C, with derating up to 70°C; operates at altitudes up to 5000m.
• Safety Certifications: Approved to IEC 62368‑1, CB 60950‑1, and meets USA EISA 2007, DOE Level VI, and CoC Tier 2 requirements.
• Compact C14 Inlet Design: Features a standard C14 AC inlet for easy integration into IPC, POS, embedded, and PoE systems.
