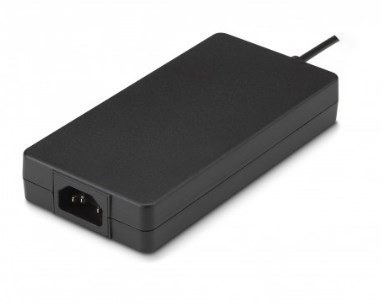

FSP150-AAAN3 150W 24V 6.25A AC-DC Power Adapter

The FSP150-AAAN3 is a 150-watt AC-DC power adapter from the FSP150-AxxN3 series, specifically designed for high-demand industrial applications such as IPC systems, embedded systems, printers, monitors, POS terminals, and PoE equipment. This model delivers a stable 24V DC output at 6.25A (150W) and accepts a universal input of 90-264VAC (47-63Hz) with a maximum input current of 2A at full load. It meets rigorous energy efficiency standards, including DoE Level VI (≥88%) and CoC V5 Tier 2 (≥89%), while consuming less than 0.15W under no-load conditions. The adapter incorporates an active Power Factor Correction (PFC) circuit (PF ≥0.9 at full load) to comply with EN61000-3-2 harmonic requirements. Built with comprehensive protection features—over voltage, over current, short circuit, over temperature, and brown-out—it ensures reliable operation in demanding environments. With a compact form factor of 151 x 45 x 25 mm and an IEC 320 C14 inlet, the FSP150-AAAN3 offers high reliability (300,000 hours MTBF at 25°C) and full compliance with EMC standards such as EN55032 Class B, FCC Part 15B, and EN55024. It operates at altitudes up to 5000 meters and provides a hold-up time of ≥10ms, making it ideal for critical industrial and ITE applications.

Key Features

• Universal AC Input: 90-264VAC, 47-63Hz, with ≤2A input current at 100/240Vac full load and low no-load power <0.15W.
• High Efficiency: Meets DoE Level VI (≥88%) and CoC V5 Tier 2 (≥89%), reducing energy loss and operational costs.
• Robust Protection Suite: Includes over voltage, over current, short circuit, over temperature, and brown-out protection for maximum system safety.
• Active PFC & Harmonic Compliance: Power factor ≥0.9 at full load, fully compliant with EN61000-3-2.
• Reliable & Durable: 300,000 hours MTBF (SR332), 5000m operating altitude, and 4242V DC isolation between input and output.
• EMC & Safety Certified: Meets EN55032 Class B, FCC Part 15B, EN55024, and immunity standards; approved to IEC 62368-1 and CB 60950-1.
• Compact Mechanical Design: Dimensions 151 x 45 x 25 mm with IEC 320 C14 inlet, suitable for space-constrained installations.
• Wide Operating Temperature Range: 0°C to 40°C (100% load), derated linearly to 55% load at 70°C.
