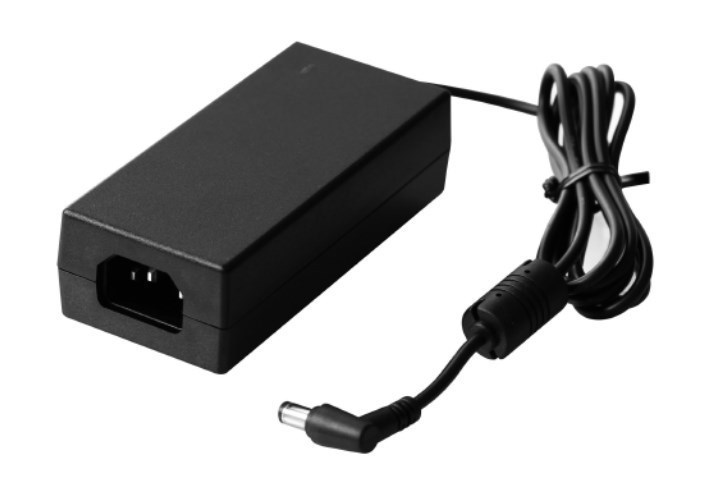

FSP060-DHAN3 60W 12V AC-DC Power Adapter

The FSP060-DHAN3 is a high-performance AC-DC power supply (adapter) designed for IPC systems, embedded systems, printers, monitors, POS systems, and other ITE applications requiring reliable 60W power. With a universal AC input of 90-264VAC (47-63Hz), it delivers a regulated 12VDC output at up to 5A (60W total). This power supply unit meets stringent efficiency standards: DOE Level VI (≥88%) and CoC Version 5 Tier 2 (≥89%). It features comprehensive protections including over voltage protection (output trip ≤28V, auto-recovery by AC reset), over current/short circuit protection (auto-recovery), over temperature protection (shutdown with AC reset), and brown-out protection. The adapter complies with EMC standards EN55032 Class B, EN55024, and FCC Part 15B Class B, ensuring low electromagnetic interference. Safety approvals meet IEC 62368-1 and IEC 60950-1. It operates at 0-70°C (derating above 40°C) and can withstand storage from -20°C to +80°C. With high reliability (MTBF 300,000 hours at 25°C), low no-load power consumption (<0.075W), and inrush current limited to component ratings, the FSP060-DHAN3 is a robust power solution for demanding applications. Its AC inlet is C14 type, and it is designed for altitudes up to 5000 meters.

Key Features

• Universal AC Input: 90-264VAC, 47-63Hz with ≤1.0A input current at full load.
• High Efficiency: Meets DOE Level VI (≥88%) and CoC V5 Tier 2 (≥89%) standards.
• Reliable Output: 12VDC, 5A continuous output (60W) with tight regulation.
• Comprehensive Protections: Over voltage (≤28V trip), over current/short circuit (auto-recovery), over temperature (shutdown), and brown-out protection.
• EMC Compliance: EN55032 Class B, EN55024, FCC Part 15B Class B for low noise.
• Safety Certified: Approved to IEC 62368-1 & IEC 60950-1; withstand voltage 4242VDC input to output.
• Wide Operating Temperature: 0°C to 70°C (derated above 40°C); storage -20°C to +80°C.
• High Reliability: MTBF 300,000 hours at 25°C; low no-load power <0.075W.
• Compact & Durable: Suitable for IPC, embedded, POS, printer, and monitor applications.
