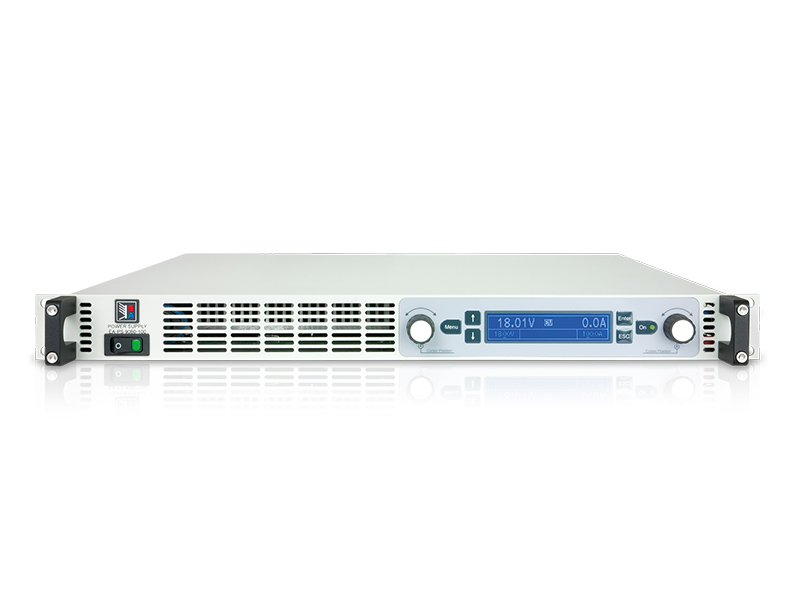

EA‑PS 9750‑06 1U | 750V 6A 1500W 19” Rack Mount Programmable DC Power Supply

The EA‑PS 9750‑06 1U (Part No:06230404) belongs to EA‑PS 9000 1U series made by EA Elektro‑Automatik, a high-voltage programmable rack power supply serving as alternative to ametek/amtek bench power supplies, widely used for 24v power supply, DC source testing and new energy R&D validation.

Core specifications: 0~750V, 0~6A continuously adjustable output, rated 1500W power, maximum efficiency up to 95%. 1500W version supports 100‑264V full-range AC input with active PFC; high-voltage configuration equipped built-in output discharge circuit to bleed residual voltage below 60V after shutdown, complete OVP/OCP/OPP/OTP multi-layer safety protection.

Key Features

• EA‑PS 9750‑06 1U, 750V 6A 1500W 19-inch rack DC power supply, PN:06230404
• Ultra slim 1U (44mm height) standard rack cabinet, weight approx.10.5kg
• Active PFC design, 100~264V universal AC input, peak efficiency ≤95%
• Auto-ranging output stage, auto CV/CC/CP mode switching
• Blue dot-matrix LCD + dual rotary knobs + front panel lock protection
• OVP/OCP/OPP/OTP full protection + remote sensing terminal
• Galvanically isolated USB/Ethernet/15Pin analog interfaces onboard
• SCPI/ModBus RTU & LabView VI compatible, Share bus parallel support
• High-voltage model with built-in output discharge safety circuit
