Product Description

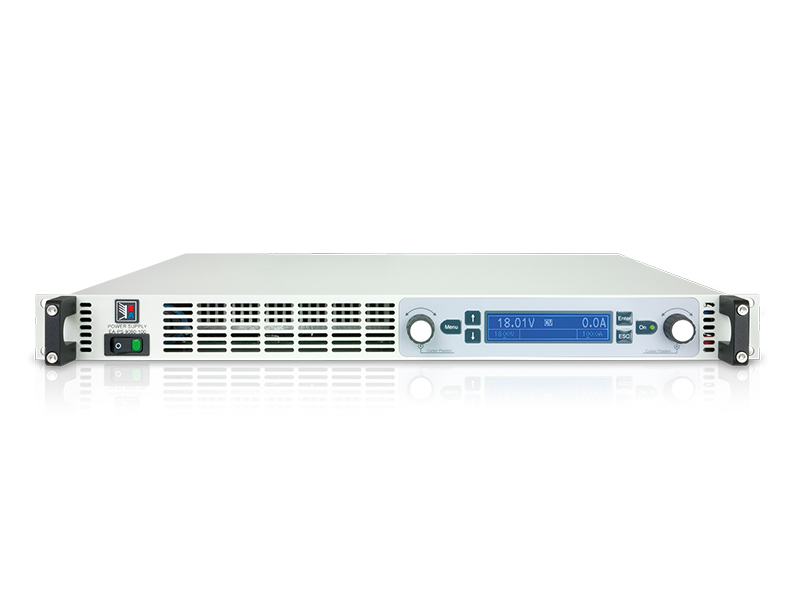

EA‑PS 9500‑10 1U | 500V 10A 1500W 19” Rack Mount Programmable DC Power Supply
The EA‑PS 9500‑10 1U (Part No:06230403) belongs to EA‑PS 9000 1U series from EA Elektro‑Automatik, serving as premium alternative to ametek/amtek programmable bench power supply. Widely deployed for 24v power supply verification, DC source testing and lab R&D projects.
Core specs: 0~500V, 0~10A continuously adjustable, rated 1500W output power, max efficiency up to 94%. 1500W grade supports 100‑264V global AC input with built active PFC; high voltage model equips output discharge circuit for safety, complete OVP/OCP/OPP/OTP multi protection.
Key Features
- EA‑PS 9500‑10 1U, 500V 10A 1500W 19-inch rack power supply, PN:06230403
- Ultra-thin 1U (44mm height) standard rack chassis design
- Active PFC, 100~264V universal AC input, efficiency ≤94%
- Auto-ranging output, auto switch CV/CC/CP working modes
- Blue dot-matrix LCD + dual rotary knobs + front panel lock
- Full OVP/OCP/OPP/OTP protection + remote sensing function
- Galvanic isolated USB/Ethernet/analog onboard interfaces
- SCPI/ModBus RTU & LabView driver compatible
- Share bus available for multi-unit parallel expansion
- For industrial & lab programmable DC power supply testing
Specifications
| Parameter | Value |
|---|---|
| Output Current | 0-10A |
| Output Power | 1500W |
| Output Voltage | 0-500V |
| Type | 1U |
| Characteristic Curve | U/I/P autoranging |
| External Control | Analogue 0-5V/0-10V, USB, LAN |
| Housing | 19" rack |
| Human Interface | Graphicdisplay & Menue |
| Special Feature | Resistance |
Technical data sheets
Legislation and Compliance
-
RoHS
-
CE
-
UL
-
WEEE
-
UKCA
