Product Description

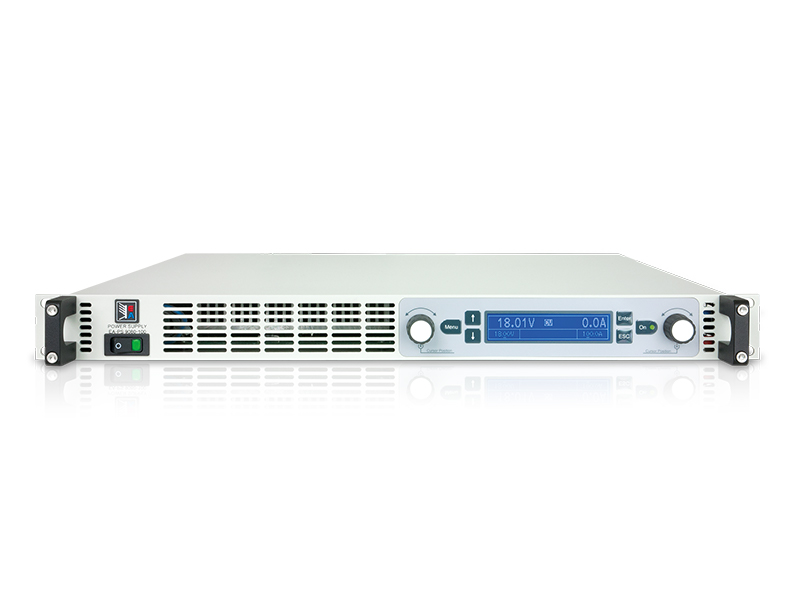

EA‑PS 9200‑25 1U | 200V 25A 1500W Programmable DC Power Supply
The EA‑PS 9200‑25 1U is a 19-inch 1U rack-mount programmable DC power supply from EA Elektro-Automatik, belonging to EA-PS 9000 1U Series with part number 06230401. It works as a cost-effective alternative to ametek/amtek programmable bench power supplies and widely used for 24v power supply, DC power supplies & industrial product testing.
Key specs: EA‑PS 9200‑25 1U, adjustable 0~200V / 0~25A, rated 1500W, max efficiency up to 93%. Equipped with active PFC supporting 100~264V worldwide AC input, intelligent auto-ranging output stage. Built-in blue LCD display, full OVP/OCP/OPP/OTP protection plus remote sensing function.
Key Features
- EA‑PS 9200‑25 1U, 200V 25A 1500W programmable DC power supply, PN:06230401
- EA-PS 9000 1U Series compact 1U rack chassis (44mm height)
- Active PFC, 100-264V wide AC input, max efficiency ≤93%
- Auto-ranging output, CV/CC/CP auto-switch regulation mode
- Blue dot-matrix LCD + dual rotary knobs, front panel lock function
- OVP/OCP/OPP/OTP full protection & remote sensing
- Galvanic isolated USB, Ethernet, analog interface onboard
- Supports SCPI/ModBus RTU & LabView VIs, Share bus parallel connection
- For ametek-grade bench & programmable DC power supply test applications
Specifications
| Parameter | Value |
|---|---|
| Output Current | 0-25A |
| Output Power | 1500W |
| Output Voltage | 0-200V |
| Type | 1U |
| Characteristic Curve | U/I/P autoranging |
| External Control | Analogue 0-5V/0-10V, USB, LAN |
| Housing | 19" rack |
| Human Interface | Graphicdisplay & Menue |
| Special Feature | Resistance |
Technical data sheets
Legislation and Compliance
-
RoHS
-
CE
-
UL
-
WEEE
-
UKCA
