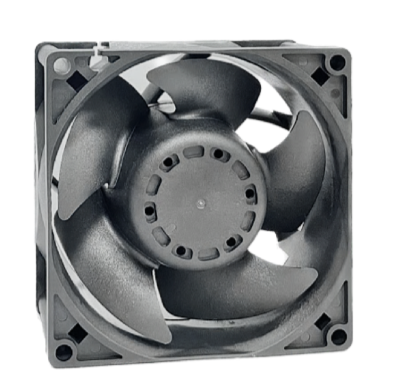

Axial fan DC 92x38mm 12V ASB09238B12S201-TBC
Article Number:
ASB09238B12S201-TBC
Manufacturer Code:
ASB09238B12x
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description
Axial fan DC 92x38mm 12V ASB09238B12S201-TBC ensures stable airflow and efficient heat dissipation for power supplies, automation systems, and electronic enclosures. Engineered for durability, quiet performance, and energy efficiency.
- Voltage: 12V
- Dimensions: 92×38 mm
Specifications
| Parameter | Value |
|---|---|
| Type | DC axial fan |
| Dimensions (L*W*H)(mm) | 92×92×38mm |
| Rated Voltage | 12VDC |
| Operating Voltage Range | 7-13,2VDC |
| Rated Current | 5.2A |
| Power Consumption | 62.4W |
| Speed | 14000RPM |
| Air Flow | 180.97CFM |
| Static Pressure | 3.66 inch H2O |
| Noise Level | 72dB(A) |
| Bearing Type | Ball bearing |
| Cable | 4L 300mm |
