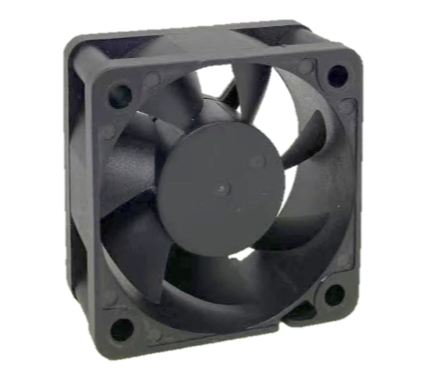

Axial fan DC 50x20mm 24V AGE05020B24H706-TBC
Article Number:
AGE05020B24H706-TBC
Manufacturer Code:
AGE05020B24x
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description
Axial fan DC 50x20mm 24V AGE05020B24H706-TBC ensures stable airflow and efficient heat dissipation for power supplies, automation systems, and electronic enclosures. Engineered for durability, quiet performance, and energy efficiency.
- Voltage: 24V
- Dimensions: 50×20 mm
Specifications
| Parameter | Value |
|---|---|
| Type | DC axial fan |
| Dimensions (L*W*H)(mm) | 50×50×20mm |
| Rated Voltage | 24VDC |
| Operating Voltage Range | 14-26,4VDC |
| Rated Current | 0.13A |
| Power Consumption | 3.12W |
| Speed | 7000RPM |
| Air Flow | 18.2CFM |
| Static Pressure | 0.29 inch H2O |
| Noise Level | 32dB(A) |
| Bearing Type | Ball bearing |
| Cable | 2L 300mm |
