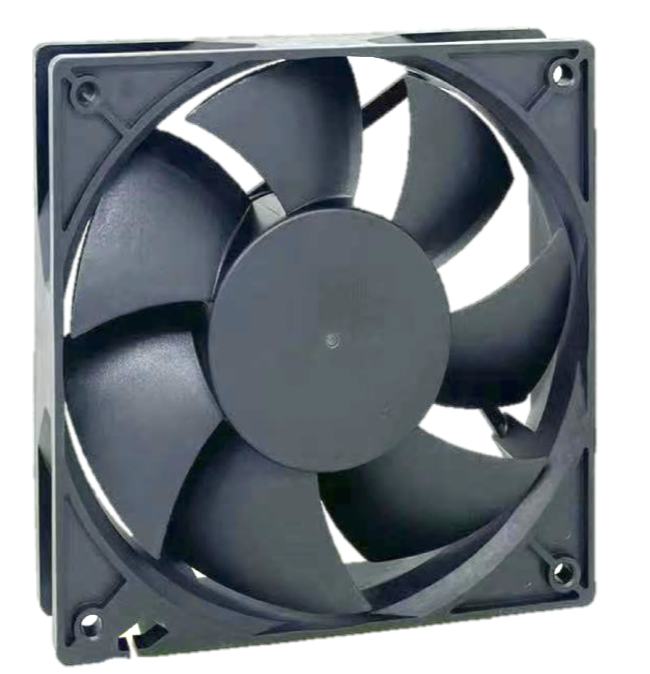

Axial fan DC 120x25mm 12V AGC12025B12H511 -TBC
Article Number:
AGC12025B12H511 -TBC
Manufacturer Code:
AGC12025B12x
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description
Axial fan DC 120x25mm 12V AGC12025B12H511 -TBC ensures stable airflow and efficient heat dissipation for power supplies, automation systems, and electronic enclosures. Engineered for durability, quiet performance, and energy efficiency.
- Voltage: 12V
- Dimensions: 120×25 mm
Specifications
| Parameter | Value |
|---|---|
| Type | DC axial fan |
| Dimensions (L*W*H)(mm) | 120×120×25mm |
| Rated Voltage | 12VDC |
| Operating Voltage Range | 7-13,2VDC |
| Rated Current | 0.26A |
| Power Consumption | 3.12W |
| Speed | 2800RPM |
| Air Flow | 86.7CFM |
| Static Pressure | 0.28 inch H2O |
| Noise Level | 42dB(A) |
| Bearing Type | Ball bearing |
| Cable | 4L 300mm |
