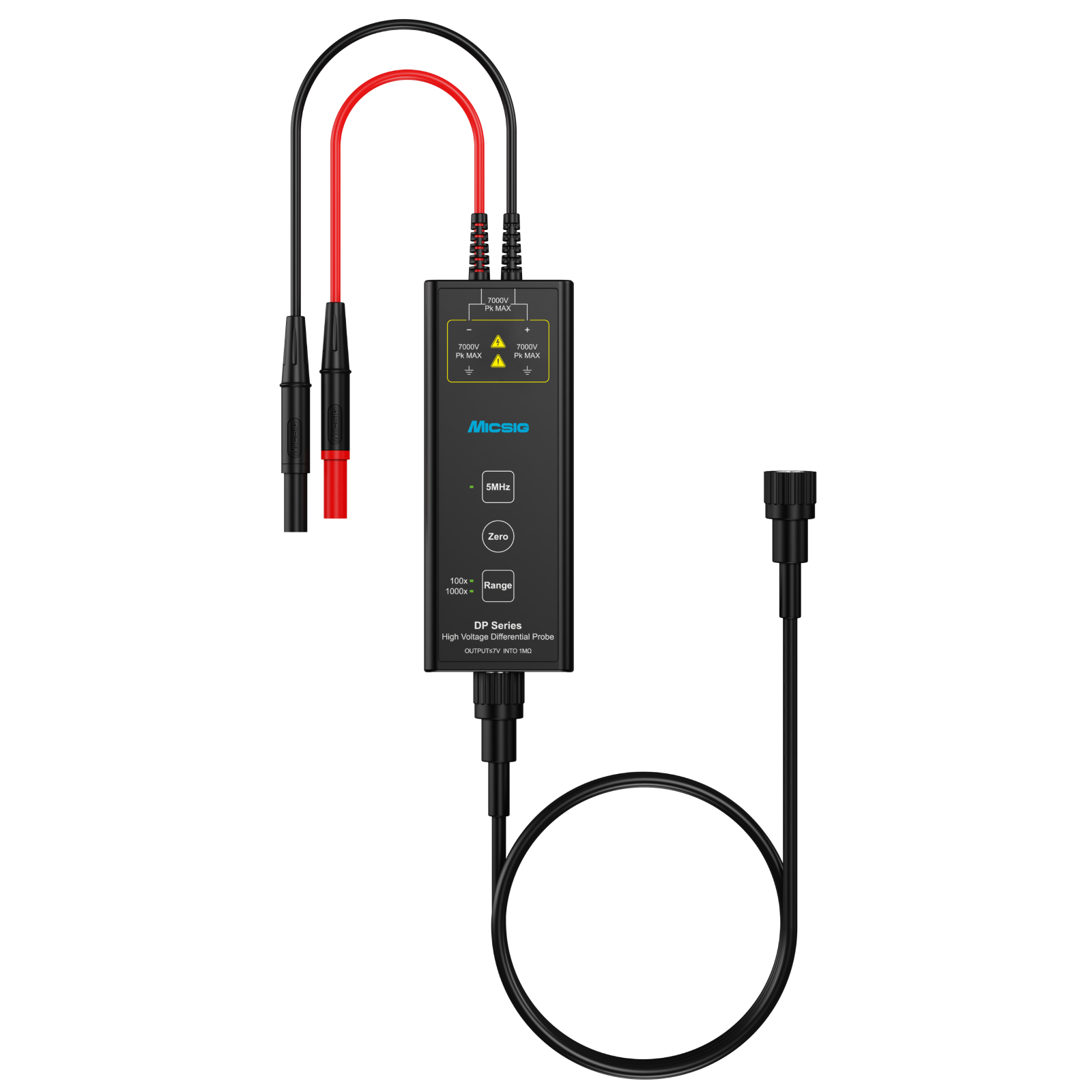

High Voltage Differential Probe DP7002 – 200MHz, 7000Vpk Differential Probe

The DP7002 is a high-performance differential voltage probe designed for accurate and safe high-voltage differential measurements in demanding test environments. As part of the DP Series, it features a fully integrated host design that consolidates signal input interfaces, control buttons, and output ports into a compact chassis, enabling easier setup and wider application flexibility. With a bandwidth of 200MHz and a maximum differential input voltage of 7000Vpk, the DP7002 is ideal for high-frequency, high-voltage testing scenarios such as new energy vehicle power systems, photovoltaic inverters, and switching power supplies. It supports dual power options (DC 5V and Type-C), one-touch zero calibration, overload alarm with LED and buzzer indicators, range power-off memory, dual range selection, and a 5MHz bandwidth limit function to suppress high-frequency noise. The probe also supports command programming for automated testing processes, making it a versatile tool for engineering and R&D applications.

Key Features

• High Bandwidth & Voltage Range: 200MHz bandwidth with up to 7000Vpk differential input voltage.
• Integrated Design: Compact host integrates input, control, and output functions for easier deployment.
• One-Touch Calibration: One-button zero calibration for quick and accurate setup.
• Dual Range Selection: Supports flexible measurement ranges for varying test voltages.
• Noise Suppression: 5MHz bandwidth limit function reduces high-frequency noise for clearer waveforms.
• Overload Protection: Visual and audible overload alarm (LED flash + buzzer).
• Dual Power Options: Can be powered via DC 5V adapter or Type-C port for mobile operation.
• Programmable Control: Supports command programming for automated test sequences.
• High CMRR: Excellent common-mode rejection ratio across a wide frequency range.
• Low Noise Floor: Enhanced sensitivity for accurate measurement of small signal variations.
