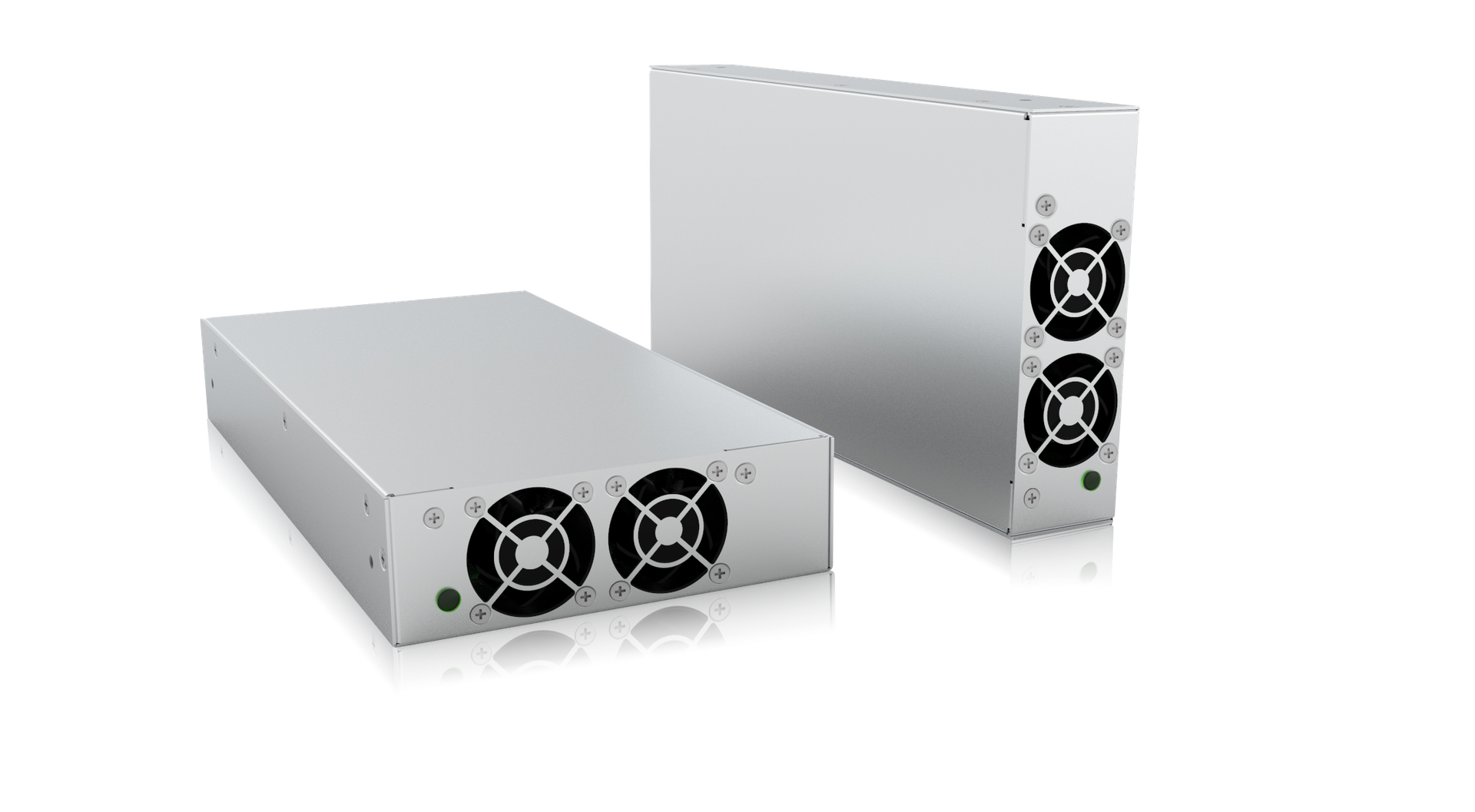

TPS-BM142650SI 2650W Bidirectional AC-DC/DC-AC Power Module

The TPS-BM142650SI is a high-performance power converter and ac to dc converter, serving as a core TPS-BM142650SI Bidirectional Module and TPS-BM142650SI Power Module for seamless industrial bidirectional energy flow. As the TPS-BM142650SI 2650W model, it uses mature soft switching technology and advanced control algorithms to deliver reliable performance—acting as a 91.5% AC-DC Efficiency Module and 86% DC-AC Efficiency Module, with <10ms Mode Switching Module speed, plus PF>0.99 Power Module and THDi<5% Power Module characteristics (tested at 220VAC full load, power grid THDu ≤2%). It features a TPS-BM142650SI 176-264VAC Input Module (50/60±5Hz adaptive control) and ≤17A AC Input Module, with DC side functions including TPS-BM142650SI 14VDC Output Module (189A DC Output Module), TPS-BM142650SI 15VDC Input Module (123.7A DC Input Module), 0.5% Voltage Accuracy Module, and 500mV ripple voltage. Equipped with a Forced Air Cooling Module (intelligent control, default front inlet/rear outlet) and supporting 8 Units Parallel Module (<5% current sharing imbalance), it meets EN55032 EMC standards, is eligible for UL, CE, TUV certifications, operates stably at 10°C~45°C (full load), 45°C~55°C (90% derated), 55°C~60°C (80% derated), and is ideal for cell formation testing, power bidirectional testing, and energy recyclable power aging.

Key Features

• Multifunctional Bidirectional Design: Integrates power converter, ac to dc converter, TPS-BM142650SI Bidirectional Module, and TPS-BM142650SI Power Module to enable flexible AC-DC/DC-AC energy conversion.
• High Efficiency & Fast Response: Boasts 91.5% AC-DC efficiency and 86% DC-AC efficiency, plus <10ms mode switching to reduce energy loss and enhance system responsiveness.
• Superior Power Quality: Functions as PF>0.99 Power Module and THDi<5% Power Module, meeting strict industrial power standards and minimizing impact on the power grid.
• Precise DC I/O Performance: Features TPS-BM142650SI 14VDC Output Module (189A) and TPS-BM142650SI 15VDC Input Module (123.7A), paired with 0.5% Voltage Accuracy Module for stable power delivery to sensitive equipment.
• Wide Adaptability & Scalability: Operates as TPS-BM142650SI 176-264VAC Input Module with ≤17A AC Input Module capacity; equipped with Forced Air Cooling Module and supports up to 8 units in parallel as 8 Units Parallel Module.
• Compliant & Durable: Meets EN55032 EMC standards, eligible for UL, CE, TUV certifications; withstands harsh temperatures (10°C~60°C with derating) and includes fault protection + over-temperature shutdown for long-term reliability.
